Components [06/2018 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

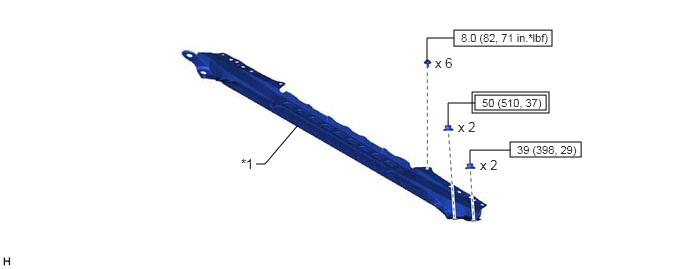

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
FRONT CENTER UPPER SUSPENSION BRACE SUB-ASSEMBLY |
- |
- |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf) |
 |
N.m (kgf/cm, ft.lbf): Specified torque |

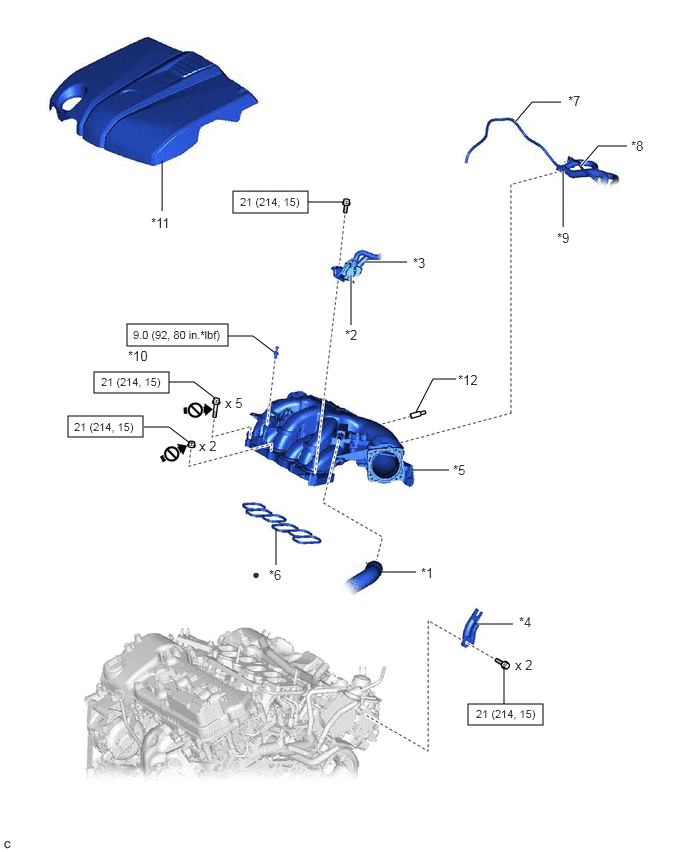

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
VENTILATION HOSE |
*2 |
PURGE VALVE (PURGE VSV) |
| *3 |
NO. 1 FUEL VAPOR FEED HOSE |
*4 |
NO. 2 SURGE TANK STAY |
| *5 |
INTAKE AIR SURGE TANK ASSEMBLY |
*6 |
AIR SURGE TANK TO INTAKE MANIFOLD GASKET |
| *7 |
VACUUM HOSE SUB-ASSEMBLY |
*8 |
VACUUM HOSE |
| *9 |
NO. 2 AIR TUBE |
*10 |
NO. 1 V-BANK COVER BRACKET |
| *11 |
V-BANK COVER SUB-ASSEMBLY |
*12 |
PLUG |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
 |
Do not apply lubricants (to the threaded parts) |
- |
- |

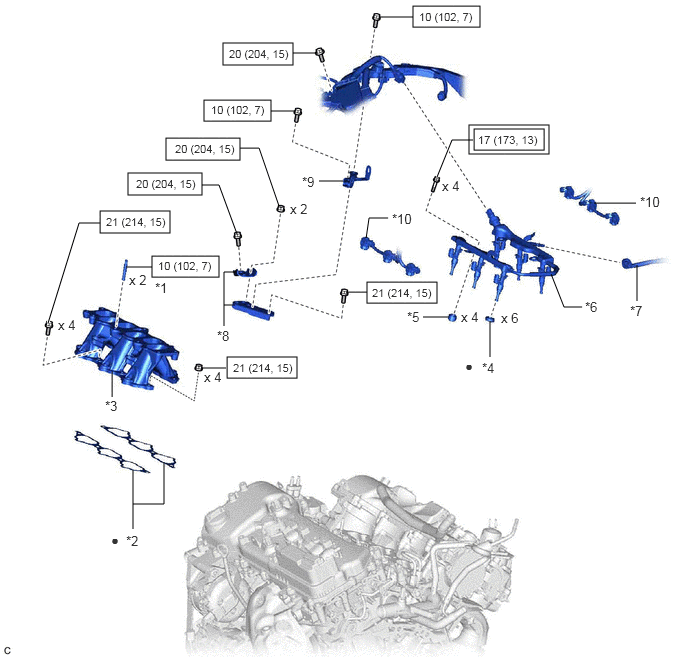

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
STUD BOLT |
*2 |
NO. 1 INTAKE MANIFOLD TO HEAD GASKET |
| *3 |
INTAKE MANIFOLD |
*4 |
INJECTOR VIBRATION INSULATOR |
| *5 |
NO. 1 DELIVERY PIPE SPACER |
*6 |
FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY |
| *7 |
FUEL TUBE SUB-ASSEMBLY |
*8 |
NO. 2 ENGINE MOUNTING STAY RH |
| *9 |
WIRE HARNESS CLAMP BRACKET |
*10 |
NO. 5 ENGINE WIRE |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
