Removal [06/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE TAIL EXHAUST PIPE ASSEMBLY
    WARNING:

    To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

    1. Remove the 2 bolts and disconnect the tail exhaust pipe assembly from the center exhaust pipe assembly.

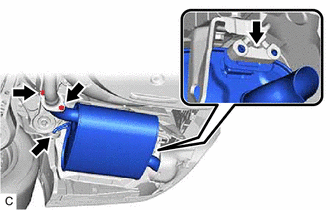

      GTY783191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the tail exhaust pipe assembly from the 2 exhaust pipe supports.
    3. Remove the gasket from the center exhaust pipe assembly.
  2. REMOVE TAIL EXHAUST PIPE ASSEMBLY LH
    WARNING:

    To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

    1. Remove the 2 bolts and disconnect the tail exhaust pipe assembly LH from the center exhaust pipe assembly.

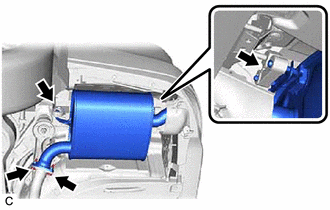

      GTY783192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the tail exhaust pipe assembly LH from the 2 exhaust pipe supports.
    3. Remove the gasket from the center exhaust pipe assembly.
  3. REMOVE FRONT FLOOR COVER LH
    1. Type A:
      GTY803444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 4 bolts and 4 clips (A).
      2. Disengage the grommet (B) and 6 clips (C) to remove the front floor cover LH.
    2. Type B:
      GTY808039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 3 bolts and 4 clips (A).
      2. Disengage the grommet (B) and 6 clips (C) to remove the front floor cover LH.
  4. REMOVE FRONT FLOOR COVER RH
    1. Type A:
      1. Remove the 3 bolts and 4 clips (A).
        GTY825959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the grommet (B) and 6 clips (C) to remove the front floor cover RH.
    2. Type B:
      1. Remove the 4 bolts and 4 clips (A).
        GTY947314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the grommet (B) and 6 clips (C) to remove the front floor cover RH.
  5. REMOVE FRONT CENTER FLOOR BRACE
    1. Remove the 4 bolts and front center floor brace from the vehicle body.
      GTY765995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE CENTER FLOOR CROSSMEMBER BRACE
    1. Remove the 4 bolts and center floor crossmember brace from the vehicle body.
      GTY765994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE CENTER EXHAUST PIPE ASSEMBLY
    WARNING:

    To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

    1. Remove the 2 bolts, 2 nuts and disconnect the center exhaust pipe assembly from the front exhaust pipe assembly (TWC: Rear Catalyst).
      GTY765992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the center exhaust pipe assembly from the 2 exhaust pipe supports.
    3. Remove the gasket from the front exhaust pipe assembly (TWC: Rear Catalyst).
  8. REMOVE BODY MOUNTING PLATE
    1. Remove the 6 bolts and body mounting plate.
      GTY765993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE NO. 1 EXHAUST PIPE SUPPORT BRACKET (for Lower Side)
    1. Remove the 2 nuts and No. 1 exhaust pipe support bracket (for Lower Side).
      GTY765991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)
    WARNING:

    To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

    1. Disconnect the 2 heated oxygen sensor connectors.
      GTY766185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 wire harness clamps.
    3. Remove the 2 bolts, 2 nuts and disconnect the front exhaust pipe assembly (TWC: Rear Catalyst) from the exhaust manifold (TWC: Front Catalyst).
      GTY774126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the front exhaust pipe assembly (TWC: Rear Catalyst) from the exhaust pipe support.
    5. Remove the 2 gaskets from the front exhaust pipe assembly (TWC: Rear Catalyst).
  11. REMOVE HEATED OXYGEN SENSOR (for Bank 1)

    Refer to PROCEDURE - Step 5

  12. REMOVE HEATED OXYGEN SENSOR (for Bank 2)

    Refer to PROCEDURE - Step 11
