Components [06/2018 - ]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Exhaust Pipe Replacement Components With Torque Specifications (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	Type A	*B	Type B
*1	FRONT FLOOR COVER RH	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

Fig 2: Exhaust Pipe Replacement Components With Torque Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	Type A	*B	Type B
*1	FRONT FLOOR COVER LH	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

Fig 3: Exhaust Pipe Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	BODY MOUNTING PLATE	*2	CENTER FLOOR CROSSMEMBER BRACE
*3	FRONT CENTER FLOOR BRACE	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

Fig 4: Exhaust Pipe Replacement Components With Torque Specifications (4 Of 5)

*1	FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)	*2	CENTER EXHAUST PIPE ASSEMBLY
*3	HEATED OXYGEN SENSOR (for Bank 2)	*4	HEATED OXYGEN SENSOR (for Bank 1)
*5	NO. 1 EXHAUST PIPE SUPPORT BRACKET (for Lower Side)	*6	EXHAUST PIPE SUPPORT
*7	GASKET	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with SST
•	Non-reusable part	-	-

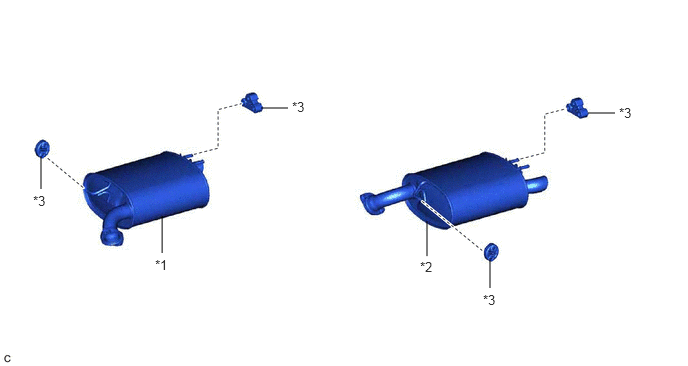

Fig 5: Exhaust Pipe Replacement Components With Torque Specifications (5 Of 5)

*1	TAIL EXHAUST PIPE ASSEMBLY	*2	TAIL EXHAUST PIPE ASSEMBLY LH
*3	EXHAUST PIPE SUPPORT	-	-
