Components [06/2018 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *A |
Type A |
*B |
Type B |
| *1 |
FRONT FLOOR COVER RH |
- |
- |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *A |
Type A |
*B |
Type B |
| *1 |
FRONT FLOOR COVER LH |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

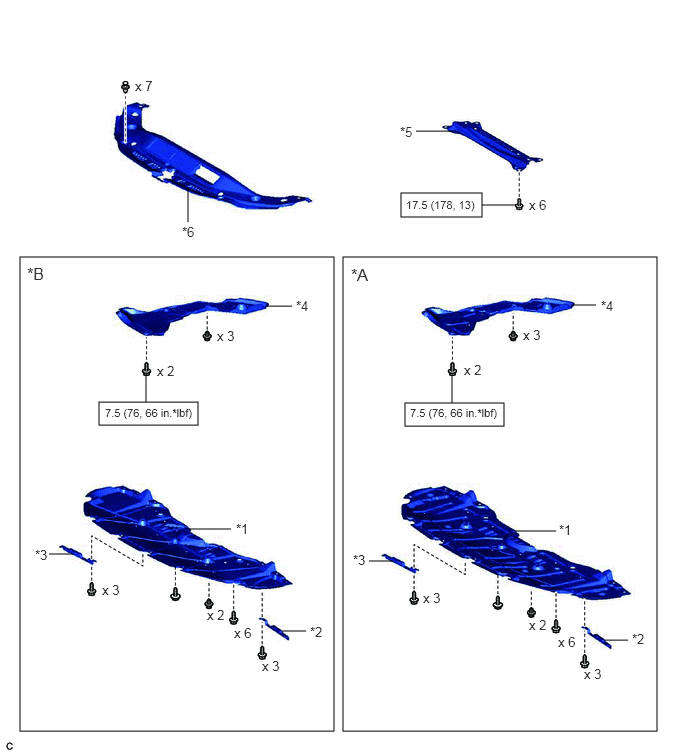

| *A |
Type A |
*B |
Type B |
| *1 |
NO. 1 ENGINE UNDER COVER |
*2 |
FRONT WHEEL OPENING EXTENSION PAD LH |
| *3 |
FRONT WHEEL OPENING EXTENSION PAD RH |
*4 |
NO. 2 ENGINE UNDER COVER |
| *5 |
BODY MOUNTING PLATE |
*6 |
COOL AIR INTAKE DUCT SEAL |
|
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst) |
*2 |
NO. 1 EXHAUST PIPE SUPPORT BRACKET (for Lower Side) |
| *3 |
EXHAUST PIPE SUPPORT |
*4 |
GASKET |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

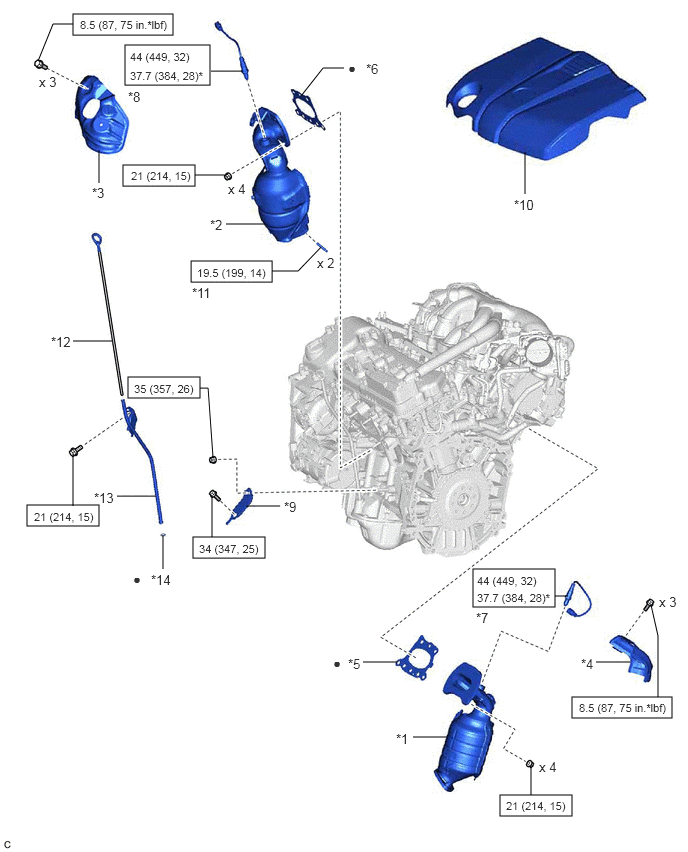

| *1 |
EXHAUST MANIFOLD ASSEMBLY RH (TWC: Front Catalyst) |
*2 |
EXHAUST MANIFOLD ASSEMBLY LH (TWC: Front Catalyst) |
| *3 |
NO. 2 EXHAUST MANIFOLD HEAT INSULATOR |
*4 |
NO. 1 EXHAUST MANIFOLD HEAT INSULATOR |
| *5 |
EXHAUST MANIFOLD TO HEAD GASKET (for Bank 1) |
*6 |
EXHAUST MANIFOLD TO HEAD GASKET (for Bank 2) |
| *7 |
AIR FUEL RATIO SENSOR (for Bank 1) |
*8 |
AIR FUEL RATIO SENSOR (for Bank 2) |
| *9 |
NO. 2 MANIFOLD STAY |
*10 |
V-BANK COVER SUB-ASSEMBLY |
| *11 |
STUD BOLT |
*12 |
ENGINE OIL LEVEL DIPSTICK |
| *13 |
ENGINE OIL LEVEL DIPSTICK GUIDE |
*14 |
ENGINE OIL LEVEL DIPSTICK GUIDE O-RING |
|
N.m (kgf/cm, ft.lbf): Specified torque |
* |
For use with SST |
| • |
Non-reusable part |
- |
- |
