System Description [06/2018 - 08/2021]
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2024 Lexus ES 350, 2024 Lexus ES 250, 2023 Lexus ES 350, 2023 Lexus ES 250, and 2022 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
- FUNCTION OF SRS CONNECTORS

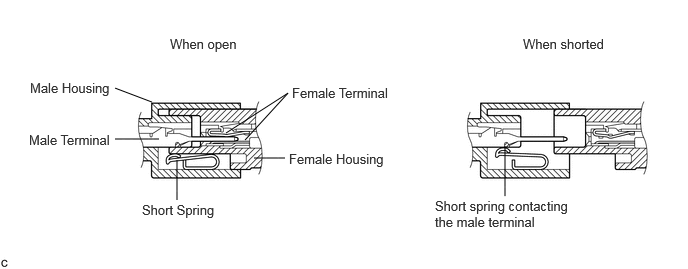

- Location of activation prevention mechanism
- Function of activation prevention mechanism
- This mechanism is designed to create a short circuit automatically between the positive (+) and negative (-) terminals of a squib power source connector when disconnected.
- The short spring contained in the connector creates a closed circuit on the squib side (no potential difference can occur between both terminals), preventing accidental squib deployment when servicing.
- Releasing of activation prevention mechanism
- To release the activation prevention mechanism, insert a piece of paper with the same thickness as the male terminal (approximately 0.5 mm (0.0197 in.)) between the terminals and short spring to break the connection.

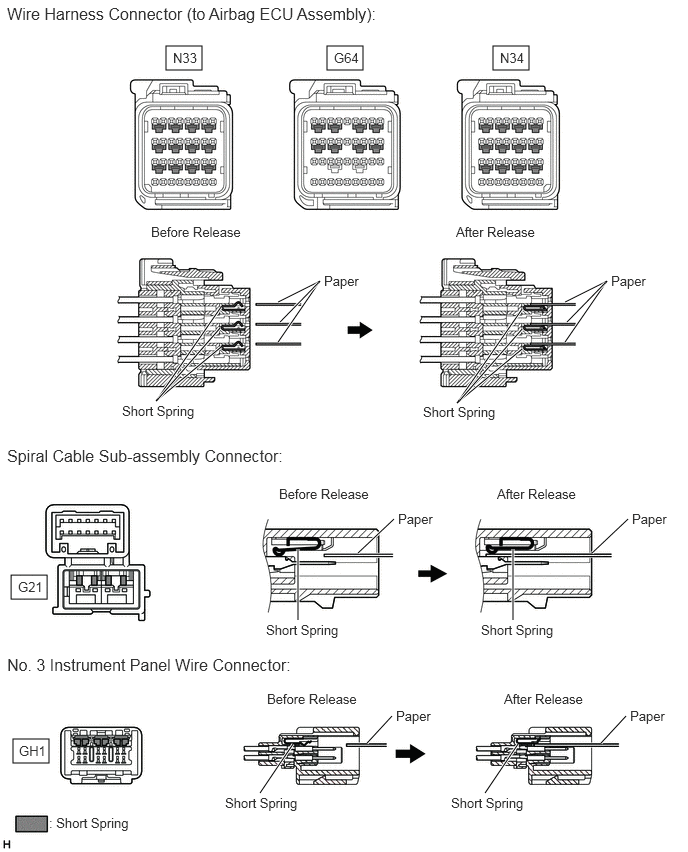

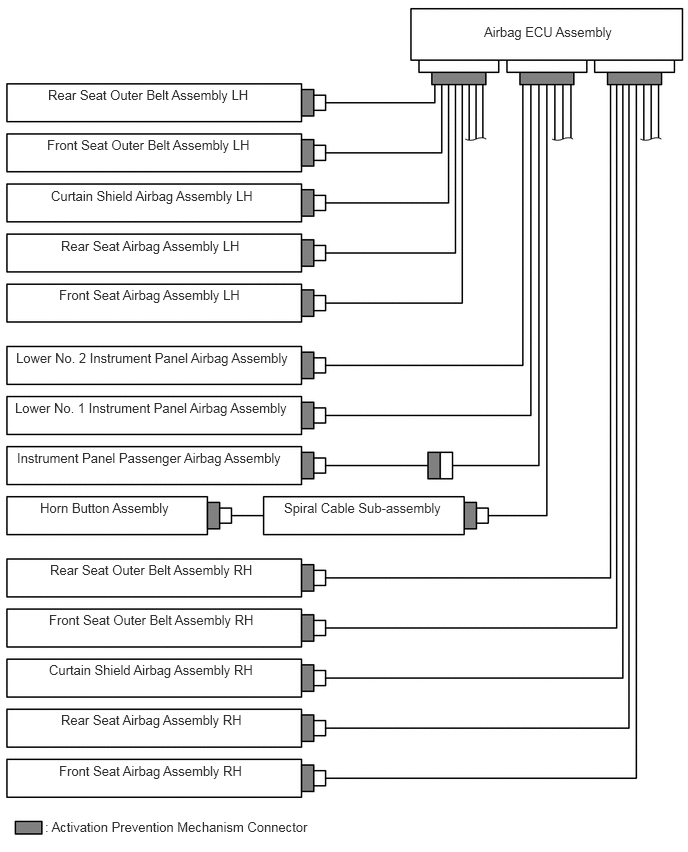

- Refer to the following illustrations concerning connectors utilizing the activation prevention mechanism and its release method.WARNING:
Never release the activation prevention mechanism on the squib connector even when inspecting with the squib disconnected.
NOTE:- Do not release the activation prevention mechanism unless specified by the troubleshooting procedure.
- To prevent the terminals and short spring from being damaged, always use a piece of paper with the same thickness as the male terminal.
HINT:
To prevent improper operation due to static electricity, etc., the connector of the airbag and pretensioner squib circuit has a short mechanism, and the squib terminal is shorted while the connector is disconnected.
