Parts Location [06/2018 - 08/2021]: Illustration
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2024 Lexus ES 350, 2024 Lexus ES 250, 2023 Lexus ES 350, 2023 Lexus ES 250, and 2022 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
| *A | for TMC Made | *B | for TMMK Made |
| *1 | FRONT AIRBAG SENSOR LH | *2 | FRONT AIRBAG SENSOR RH |
| *3 | DOOR SIDE AIRBAG SENSOR LH | *4 | DOOR SIDE AIRBAG SENSOR RH |
| *5 | FLOOR SIDE AIRBAG SENSOR LH | *6 | FLOOR SIDE AIRBAG SENSOR RH |
| *7 | SIDE NO. 2 AIRBAG SENSOR ASSEMBLY LH | *8 | SIDE NO. 2 AIRBAG SENSOR ASSEMBLY RH |
| *9 | SEAT POSITION AIRBAG SENSOR | *10 | FRONT SEAT INNER BELT ASSEMBLY LH - FRONT SEAT BELT BUCKLE SWITCH LH |
| *1 | CURTAIN SHIELD AIRBAG ASSEMBLY LH | *2 | CURTAIN SHIELD AIRBAG ASSEMBLY RH |
| *3 | FRONT SEAT OUTER BELT ASSEMBLY LH | *4 | FRONT SEAT OUTER BELT ASSEMBLY RH |
| *5 | FRONT SEAT AIRBAG ASSEMBLY LH | *6 | FRONT SEAT AIRBAG ASSEMBLY RH |
| *7 | REAR SEAT OUTER BELT ASSEMBLY LH | *8 | REAR SEAT OUTER BELT ASSEMBLY RH |
| *9 | REAR SEAT AIRBAG ASSEMBLY LH | *10 | REAR SEAT AIRBAG ASSEMBLY RH |

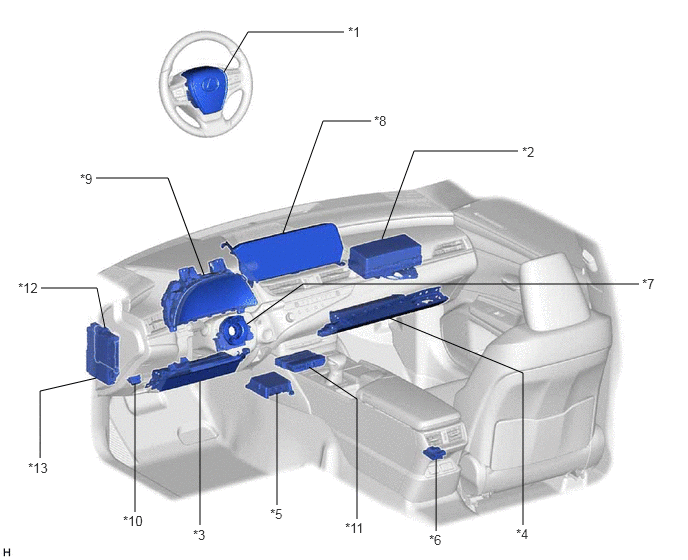

| *1 | HORN BUTTON ASSEMBLY | *2 | INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY |
| *3 | LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY | *4 | LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY |
| *5 | AIRBAG ECU ASSEMBLY | *6 | OCCUPANT DETECTION ECU |
| *7 | SPIRAL CABLE SUB-ASSEMBLY | *8 | MULTI-DISPLAY ASSEMBLY - PASSENGER AIRBAG ON/OFF INDICATOR |
| *9 | COMBINATION METER ASSEMBLY - SRS WARNING LIGHT |
*10 | DLC3 |
| *11 | DCM (TELEMATICS TRANSCEIVER) (w/ Manual (SOS) Switch) | *12 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *13 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - A/BAG-IG2 FUSE - METER-IG2 FUSE - ECU-IG1 NO. 4 FUSE - ECU-DCC NO. 2 FUSE |
- | - |
