Removal [06/2018 - 10/2019]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE AUTOMATIC TRANSAXLE ASSEMBLY
Refer to REMOVAL [06/2018 - 10/2019]

REMOVE DRIVE PLATE AND RING GEAR SUB-ASSEMBLY

Using height adjustment attachments and plate lift attachments, place the engine assembly on a flat level surface.
NOTE:
- Using height adjustment attachments and plate lift attachments, keep the engine assembly level.
- To prevent the No. 2 oil pan sub-assembly from deforming, do not place any attachments under the No. 2 oil pan sub-assembly of the engine assembly.
- Using an engine sling device and engine lift, secure the engine assembly before servicing.

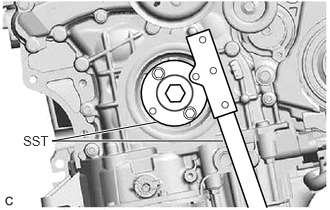

Using SST, hold the crankshaft pulley.

SST: 09213-70011
1. 09213-70020
SST: 09330-00021

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

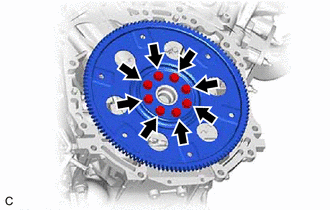

Remove the 8 bolts, the rear drive plate spacer, the drive plate and ring gear sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE NO. 1 CRANKSHAFT POSITION SENSOR PLATE
1. Remove the No. 1 crankshaft position sensor plate.

REMOVE REAR ENGINE OIL SEAL

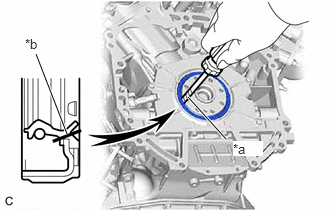

Using a knife, cut through the lip of the rear engine oil seal.

*a	Protective Tape
*b	Cut Position

Using a screwdriver with its tip wrapped with protective tape, pry out the rear engine oil seal.
NOTE:
Be careful not to damage the crankshaft.
