Components [06/2018 - ]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

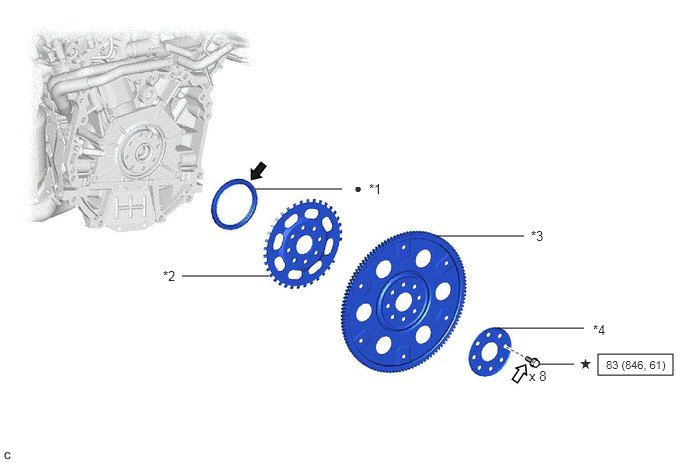

Fig 1: Rear Crankshaft Oil Seal Replacement Components With Torque Specifications

*1	REAR ENGINE OIL SEAL	*2	NO. 1 CRANKSHAFT POSITION SENSOR PLATE
*3	DRIVE PLATE AND RING GEAR SUB-ASSEMBLY	*4	REAR DRIVE PLATE SPACER
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	MP grease		Adhesive 1324
*	Precoated part	-	-
