Components [06/2018 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

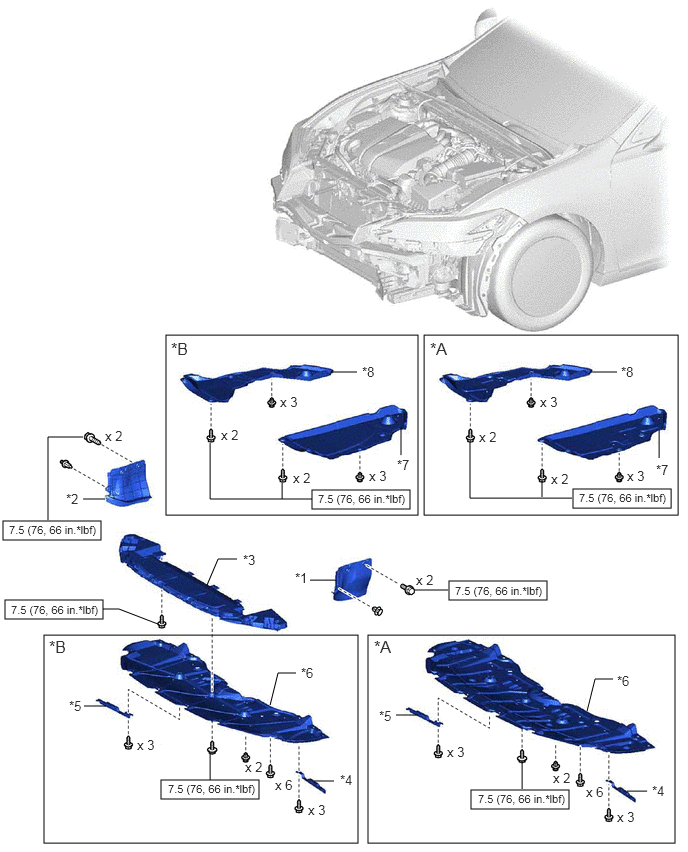

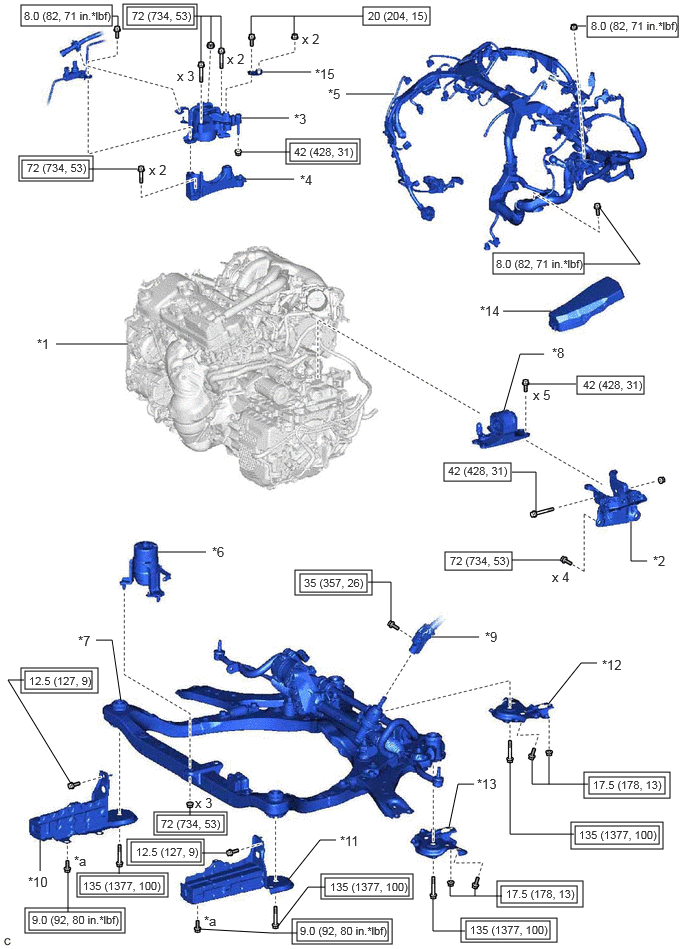

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *A |
Type A |
*B |
Type B |
| *1 |
FRONT FENDER APRON SEAL LH |
*2 |
FRONT FENDER APRON SEAL RH |
| *3 |
FRONT LOWER BUMPER ABSORBER |
*4 |
FRONT WHEEL OPENING EXTENSION PAD LH |
| *5 |
FRONT WHEEL OPENING EXTENSION PAD RH |
*6 |
NO. 1 ENGINE UNDER COVER |
| *7 |
NO. 3 ENGINE UNDER COVER |
*8 |
NO. 2 ENGINE UNDER COVER |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |

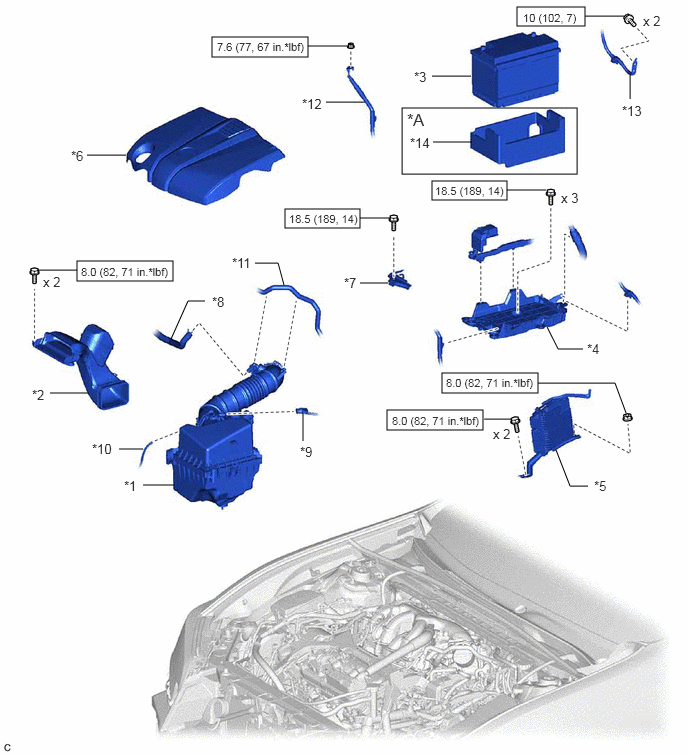

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *A |
w/ Battery Insulator |
- |
- |
| *1 |
AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE |
*2 |
INLET AIR CLEANER ASSEMBLY |
| *3 |
BATTERY |
*4 |
BATTERY CLAMP SUB-ASSEMBLY |
| *5 |
ECM |
*6 |
V-BANK COVER SUB-ASSEMBLY |
| *7 |
NO. 2 BATTERY CLAMP |
*8 |
NO. 2 VENTILATION HOSE |
| *9 |
MASS AIR FLOW METER SUB-ASSEMBLY CONNECTOR |
*10 |
VACUUM HOSE |
| *11 |
NO. 1 FUEL VAPOR FEED HOSE |
*12 |
ENGINE ROOM MAIN WIRE |
| *13 |
EARTH WIRE |
*14 |
BATTERY INSULATOR |
|
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |

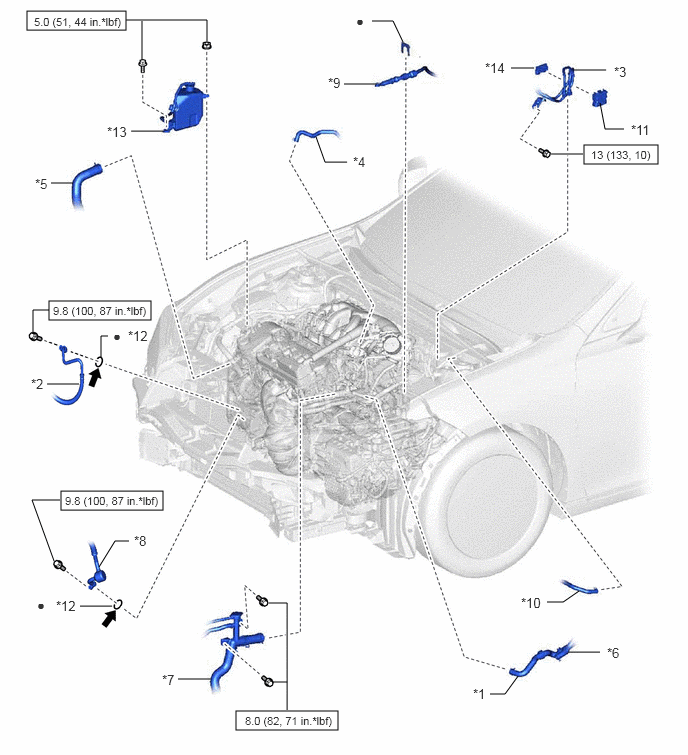

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
INLET HEATER WATER HOSE |
*2 |
NO. 1 COOLER REFRIGERANT DISCHARGE HOSE |
| *3 |
NO. 1 FUEL HOSE |
*4 |
NO. 1 FUEL VAPOR FEED HOSE |
| *5 |
NO. 2 RADIATOR HOSE |
*6 |
OUTLET HEATER WATER HOSE |
| *7 |
RADIATOR HOSE SUB-ASSEMBLY |
*8 |
SUCTION HOSE |
| *9 |
TRANSMISSION CONTROL CABLE ASSEMBLY |
*10 |
UNION TO CHECK VALVE HOSE |
| *11 |
NO. 1 FUEL PIPE CLAMP |
*12 |
O-RING |
| *13 |
RADIATOR RESERVE TANK ASSEMBLY |
*14 |
NO. 2 FUEL PIPE CLAMP |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
 |
Compressor oil ND-OIL 12 or equivalent |
- |
- |

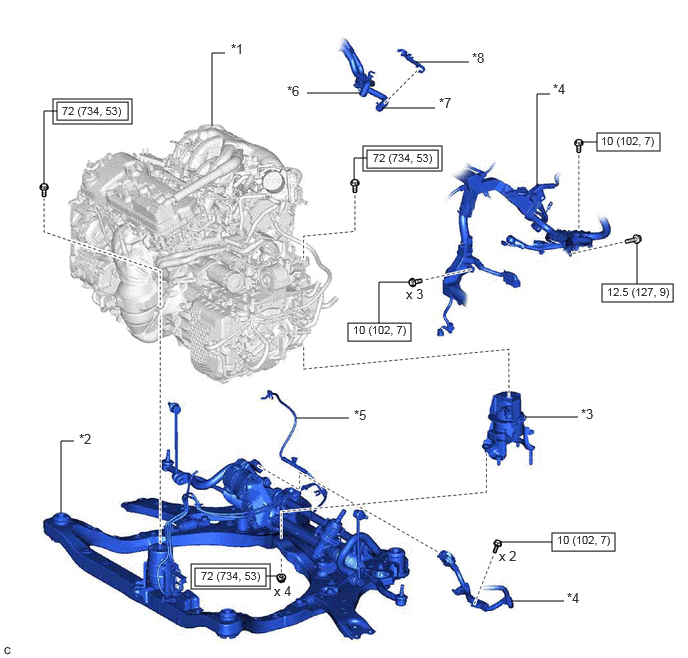

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
ENGINE ASSEMBLY WITH TRANSAXLE |
*2 |
FRONT FRAME ASSEMBLY |
| *3 |
REAR ENGINE MOUNTING INSULATOR |
*4 |
WIRE HARNESS |
| *5 |
VACUUM HOSE |
*6 |
NO. 1 WATER BY-PASS HOSE |
| *7 |
WATER BY-PASS HOSE ASSEMBLY |
*8 |
TRANSMISSION BREATHER CLAMP |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) |
|
N.m (kgf/cm, ft.lbf): Specified torque |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *A |
w/ Suspension Tower Damper |
- |
- |
| *1 |
SUSPENSION TOWER DAMPER |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
ENGINE ASSEMBLY WITH TRANSAXLE |
*2 |
ENGINE MOUNTING BRACKET SUB-ASSEMBLY LH |
| *3 |
ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH |
*4 |
ENGINE MOUNTING SPACER |
| *5 |
ENGINE WIRE |
*6 |
FRONT ENGINE MOUNTING INSULATOR |
| *7 |
FRONT FRAME ASSEMBLY |
*8 |
ENGINE MOUNTING INSULATOR LH |
| *9 |
STEERING INTERMEDIATE SHAFT ASSEMBLY |
*10 |
FRONT BUMPER EXTENSION SUB-ASSEMBLY RH |
| *11 |
FRONT BUMPER EXTENSION SUB-ASSEMBLY LH |
*12 |
FRONT SUSPENSION MEMBER BRACKET SUB-ASSEMBLY RH |
| *13 |
FRONT SUSPENSION MEMBER BRACKET SUB-ASSEMBLY LH |
*14 |
NO. 2 RELAY BLOCK COVER |
| *15 |
NO. 2 ENGINE MOUNTING STAY RH |
- |
- |
| *a |
w/o Suspension Tower Damper: x 2
w/ Suspension Tower Damper: x 1 |
- |
- |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) |
|
N.m (kgf/cm, ft.lbf): Specified torque |

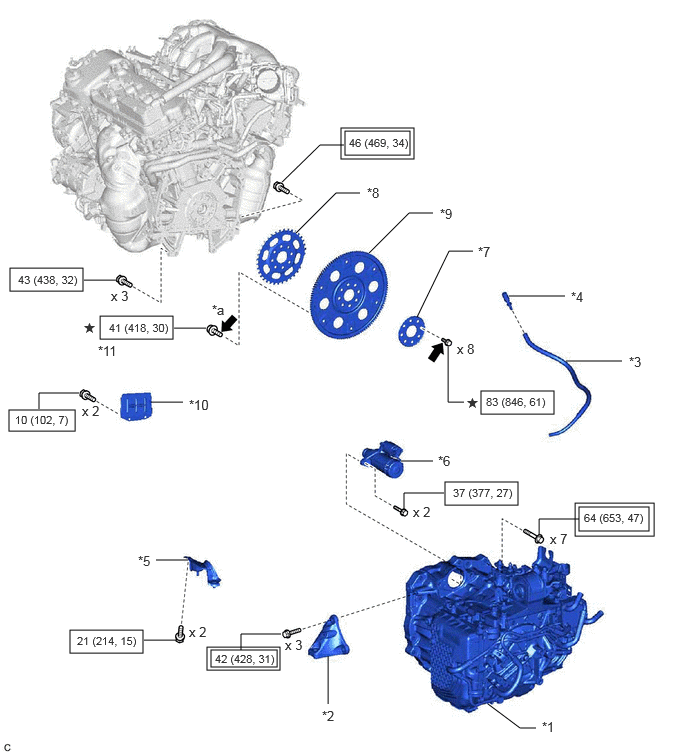

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
AUTOMATIC TRANSAXLE ASSEMBLY |
*2 |
FRONT ENGINE MOUNTING BRACKET |
| *3 |
BREATHER PLUG HOSE |
*4 |
BREATHER PLUG SUB-ASSEMBLY |
| *5 |
NO. 1 EXHAUST PIPE SUPPORT BRACKET (for Upper Side) |
*6 |
STARTER ASSEMBLY |
| *7 |
REAR DRIVE PLATE SPACER |
*8 |
NO. 1 CRANKSHAFT POSITION SENSOR PLATE |
| *9 |
DRIVE PLATE AND RING GEAR SUB-ASSEMBLY |
*10 |
FLYWHEEL HOUSING UNDER COVER |
| *11 |
DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT |
- |
- |
| *a |
BLACK COLOR: x 1
SILVER COLOR: x 5 |
- |
- |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) |
|
N.m (kgf/cm, ft.lbf): Specified torque |
|
Adhesive 1324 |
* |
Precoated part |
