System Diagram [08/2021 - ]

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2024 Lexus ES 350, 2024 Lexus ES 250, 2023 Lexus ES 350, 2023 Lexus ES 250, and 2022 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

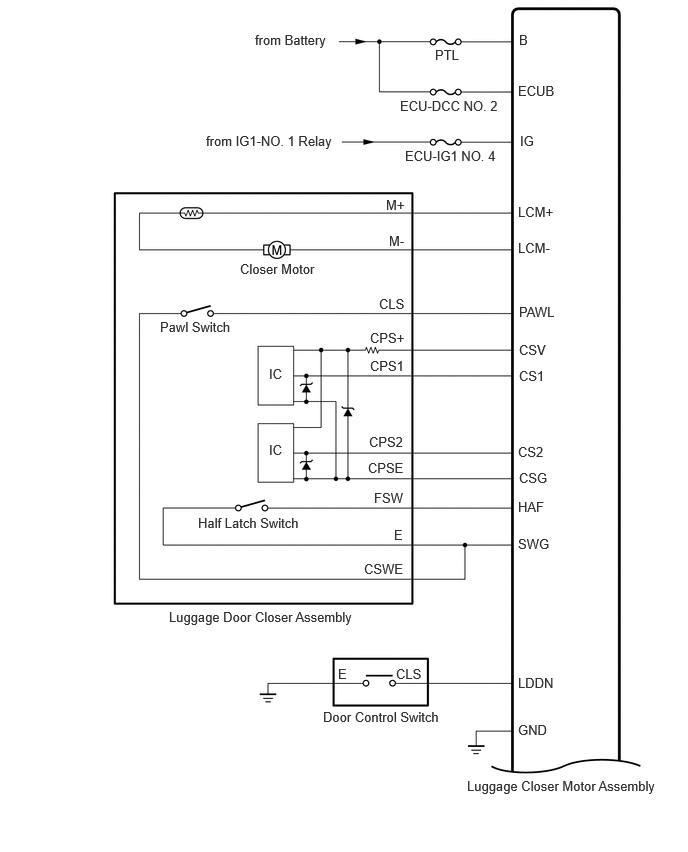

Fig 1: Power Trunk Lid System Wiring Diagram (Except Hybrid) (1 Of 2)
GTY1085083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

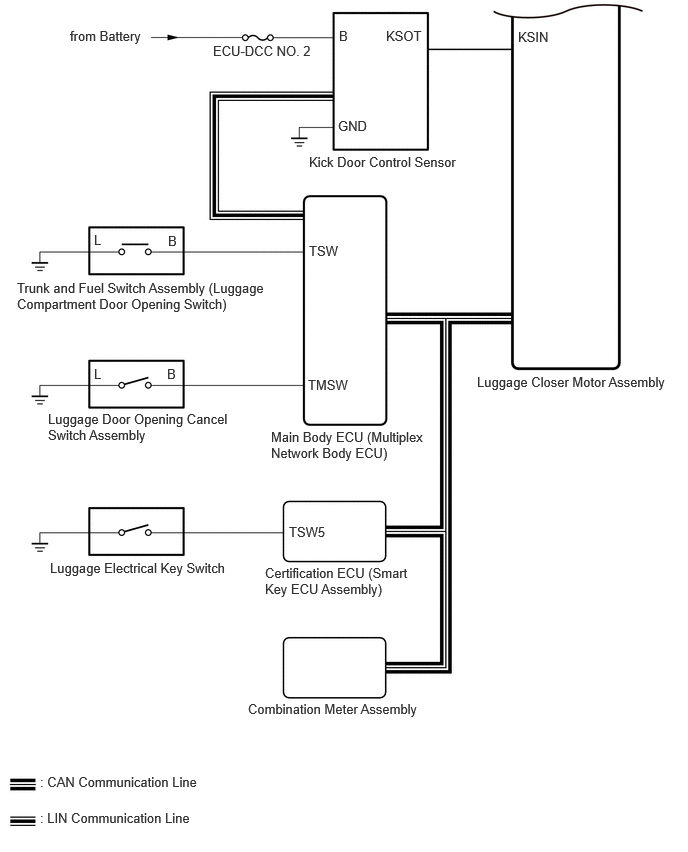

Fig 2: Power Trunk Lid System Wiring Diagram (Except Hybrid) (2 Of 2)
GTY1085664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Transmitting ECU Receiving ECU Signal Communication Method
Certification ECU (smart key ECU assembly) Main body ECU (multiplex network body ECU) Luggage electrical key switch signal CAN
Combination meter assembly Main body ECU (multiplex network body ECU) Vehicle speed signal CAN
Main body ECU (multiplex network body ECU) Luggage closer motor assembly
  • Luggage electrical key switch signal
  • Vehicle speed signal
  • Luggage door opening cancel switch assembly signal
  • Luggage compartment door opening switch signal
 CAN
Main body ECU (multiplex network body ECU) Kick door control sensor
  • ACC signal
  • IG signal
 LIN
