System Diagram [08/2021 - ]

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2024 Lexus ES 350, 2024 Lexus ES 250, 2023 Lexus ES 350, 2023 Lexus ES 250, and 2022 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

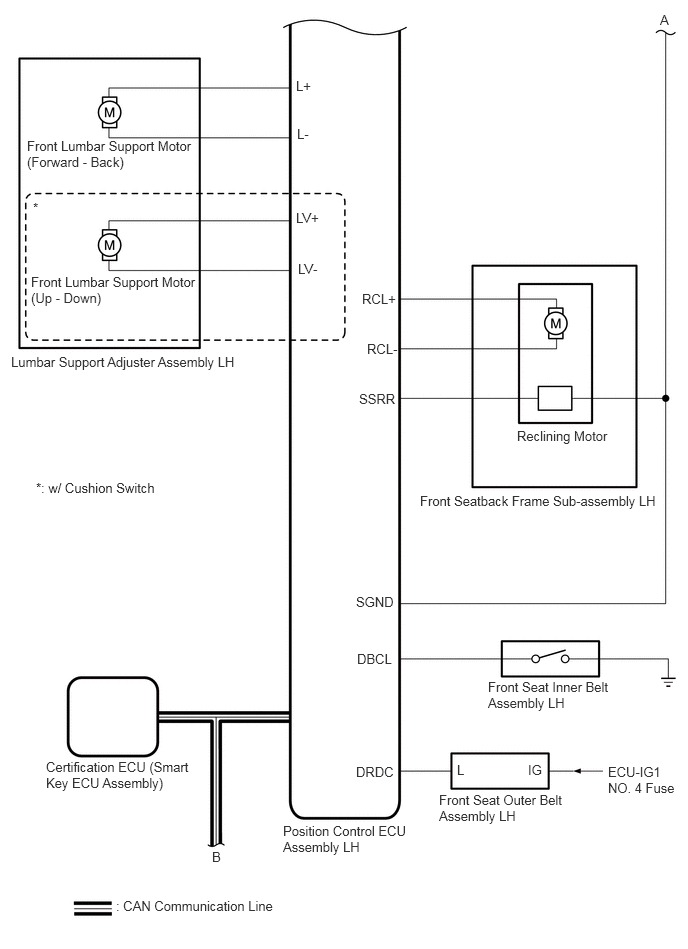

Fig 1: Front Power Seat Control System Wiring Diagram - For TMMK Made (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

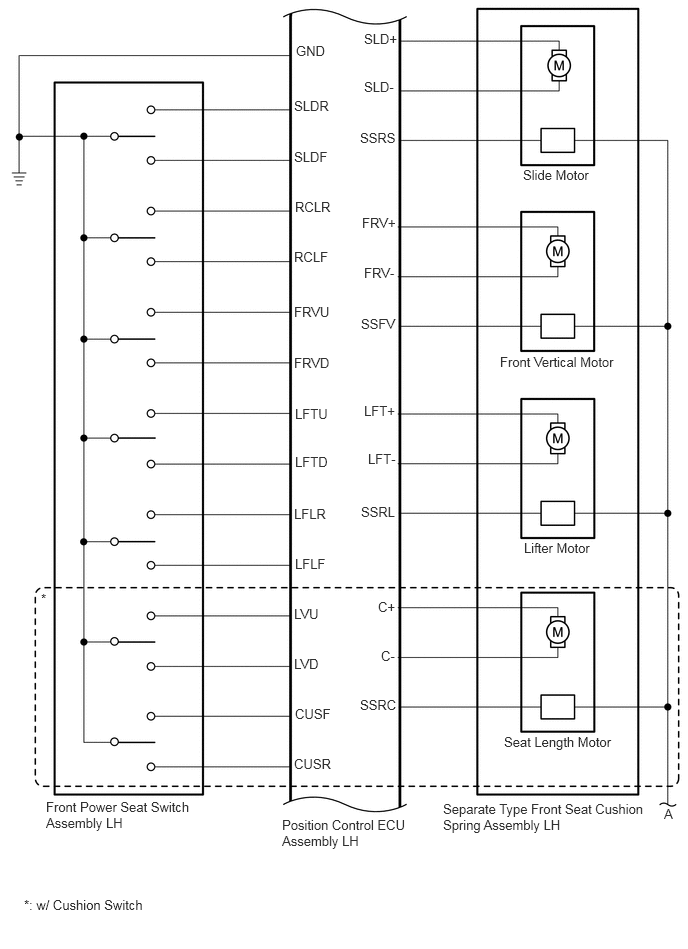

Fig 2: Front Power Seat Control System Wiring Diagram - For TMMK Made (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

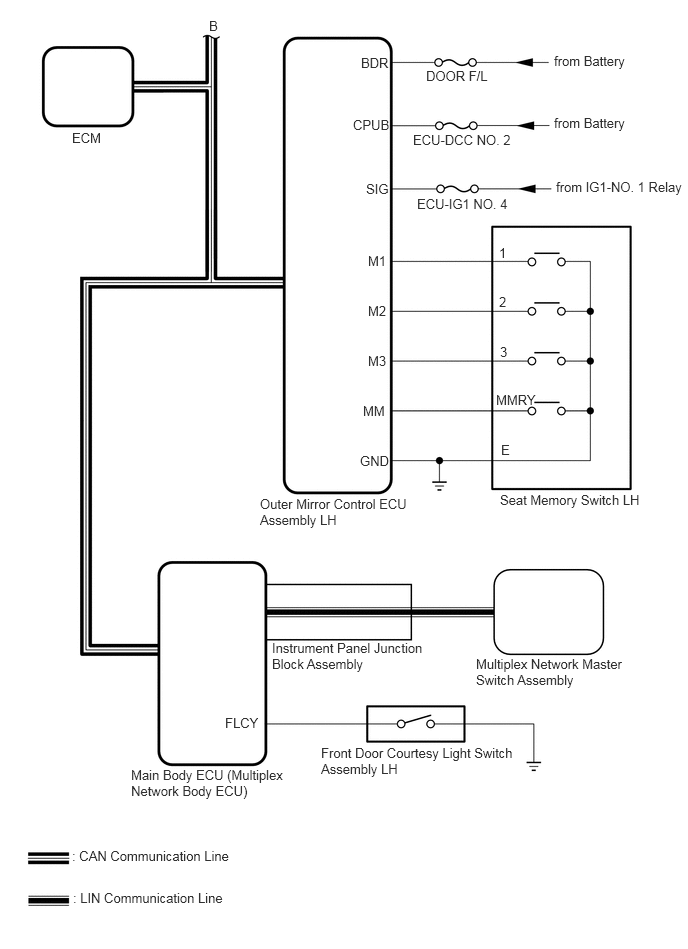

Fig 3: Front Power Seat Control System Wiring Diagram - For TMMK Made (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Front Power Seat Control System Wiring Diagram - For TMMK Made (4 Of 4)

COMMUNICATION TABLE

Sender	Receiver	Signal	Line
ECM	Main Body ECU (Multiplex Network Body ECU)	Shift position P signal	CAN
Outer Mirror Control ECU Assembly LH	Main Body ECU (Multiplex Network Body ECU)	M1 switch signal M2 switch signal M3 switch signal SET switch signal	CAN
Main Body ECU (Multiplex Network Body ECU)	Position Control ECU Assembly LH	Shift position P signal Transmission information Driving position buzzer request Driver seat position request Driver seat position data	CAN
Certification ECU (Smart Key ECU Assembly)	Main Body ECU (Multiplex Network Body ECU)	Engine switch signal Memory call replay request Key identification No. 1 to No. 7 acquisition condition	CAN
Position Control ECU Assembly LH	Main Body ECU (Multiplex Network Body ECU)	State signal of driver seat State signal of driving position buzzer	CAN
Multiplex Network Master Switch Assembly	Main Body ECU (Multiplex Network Body ECU)	Door control switch signal	LIN
