Components [06/2018 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

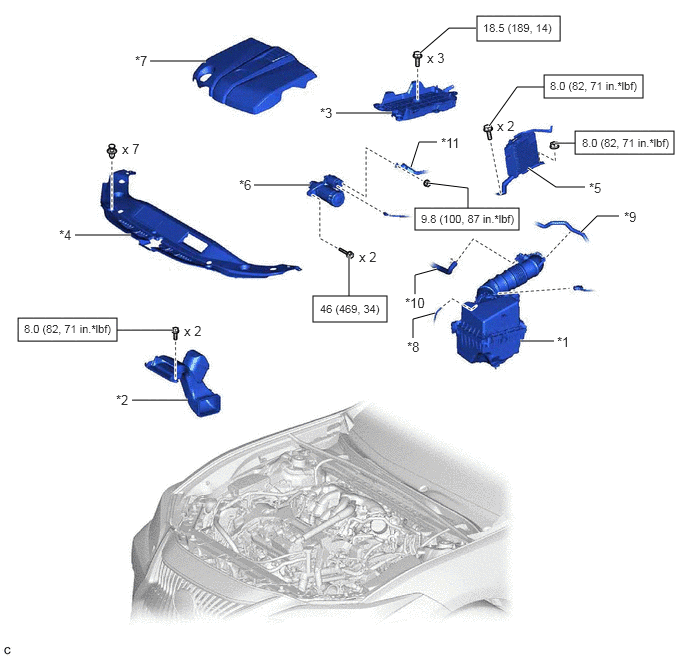

| *1 |
AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE |
*2 |
INLET AIR CLEANER ASSEMBLY |
| *3 |
BATTERY CLAMP SUB-ASSEMBLY |
*4 |
COOL AIR INTAKE DUCT SEAL |
| *5 |
ECM |
*6 |
STARTER ASSEMBLY |
| *7 |
V-BANK COVER SUB-ASSEMBLY |
*8 |
VACUUM HOSE |
| *9 |
NO. 1 FUEL VAPOR FEED HOSE |
*10 |
NO. 2 VENTILATION HOSE |
| *11 |
ENGINE WIRE |
- |
- |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

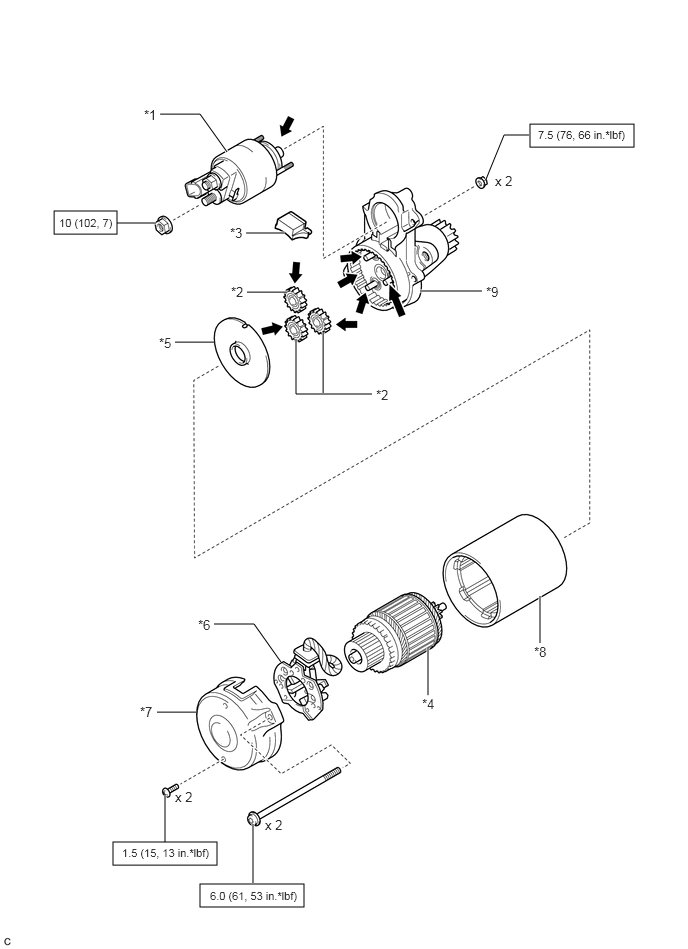

| *1 |
MAGNET STARTER SWITCH ASSEMBLY |
*2 |
PLANETARY GEAR |
| *3 |
RUBBER SEAL |
*4 |
STARTER ARMATURE ASSEMBLY |
| *5 |
STARTER ARMATURE PLATE |
*6 |
STARTER BRUSH HOLDER ASSEMBLY |
| *7 |
STARTER COMMUTATOR END FRAME ASSEMBLY |
*8 |
STARTER YOKE ASSEMBLY |
| *9 |
REPAIR SERVICE STARTER KIT |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
 |
High-temperature Grease |
