Parts Location [06/2018 - ]: Illustration
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2024 Lexus ES 350, 2024 Lexus ES 250, 2023 Lexus ES 350, 2023 Lexus ES 250, and 2022 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
| *A | w/ Ambient Illumination Light | - | - |
| *1 | FRONT COURTESY LIGHT LH (COURTESY LIGHT ASSEMBLY) | *2 | FRONT COURTESY LIGHT RH (COURTESY LIGHT ASSEMBLY) |
| *3 | REAR COURTESY LIGHT LH (COURTESY LIGHT ASSEMBLY) | *4 | REAR COURTESY LIGHT RH (COURTESY LIGHT ASSEMBLY) |
| *5 | FRONT DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY LH | *6 | FRONT DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY RH |
| *7 | REAR DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY LH | *8 | REAR DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY RH |
| *9 | NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY | *10 | MAP LIGHT ASSEMBLY |
| *11 | SPOT LIGHT ASSEMBLY | *12 | VANITY LIGHT ASSEMBLY (for LH) |
| *13 | VANITY LIGHT ASSEMBLY (for RH) | *14 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - ALT FUSE |

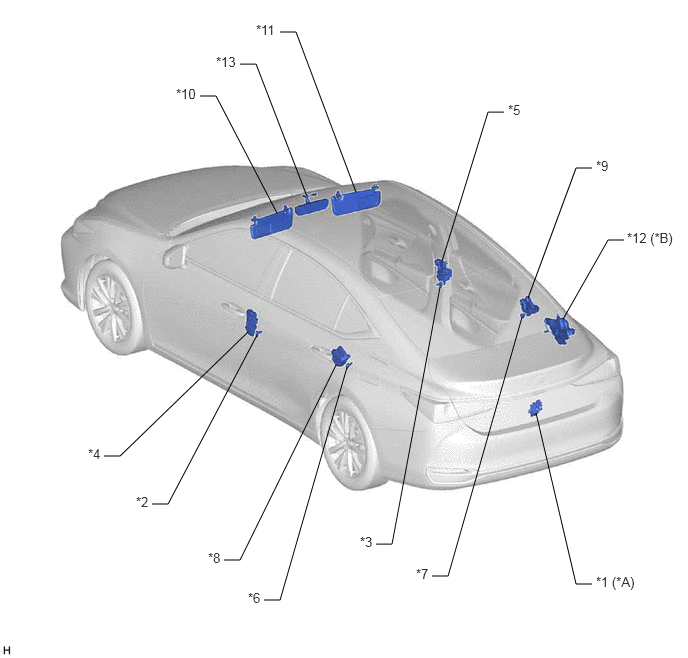

| *A | w/o Power Trunk Lid System | *B | w/ Power Trunk Lid System |
| *1 | LUGGAGE COMPARTMENT DOOR COURTESY LIGHT SWITCH (LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY) | *2 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) |
| *3 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH) | *4 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH |
| *5 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH | *6 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) |
| *7 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH) | *8 | REAR DOOR LOCK WITH MOTOR ASSEMBLY LH |
| *9 | REAR DOOR LOCK WITH MOTOR ASSEMBLY RH | *10 | VISOR ASSEMBLY LH |
| *11 | VISOR ASSEMBLY RH | *12 | MULTIPLEX NETWORK DOOR ECU (LUGGAGE CLOSER MOTOR ASSEMBLY) |
| *13 | SHIFT LEVER LIGHT (INNER REAR VIEW MIRROR ASSEMBLY) | - | - |
| *A | w/ Ambient Illumination Light | - | - |
| *1 | FRONT DOOR AMBIENT LIGHT LH | *2 | FRONT DOOR AMBIENT LIGHT RH |
| *3 | REAR DOOR AMBIENT LIGHT LH | *4 | REAR DOOR AMBIENT LIGHT RH |
| *5 | FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH | *6 | FRONT DOOR TRIM BOARD SUB-ASSEMBLY RH |
| *7 | REAR DOOR TRIM BOARD SUB-ASSEMBLY LH | *8 | REAR DOOR TRIM BOARD SUB-ASSEMBLY RH |
| *A | w/ Ambient Illumination Light | - | - |
| *1 | NO. 1 INSTRUMENT PANEL LIGHT SUB-ASSEMBLY | *2 | CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY |
| *3 | FOOTWELL LIGHT LH (NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY LH) | *4 | FOOTWELL LIGHT RH (NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY RH) |
| *5 | GLOVE BOX LIGHT ASSEMBLY | *6 | ENGINE SWITCH |
| *7 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-ACC FUSE - ECU-IG1 NO. 4 FUSE - DOME FUSE - ECU-DCC NO. 2 FUSE - ACC RELAY - IG1-NO. 1 RELAY - DOME CUT RELAY |
*8 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *9 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *10 | DLC3 |
