System Diagram [08/2021 - 09/2022]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Lexus ES 350, 2022 Lexus ES 250, 2021 Lexus ES 350, 2021 Lexus ES 250, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

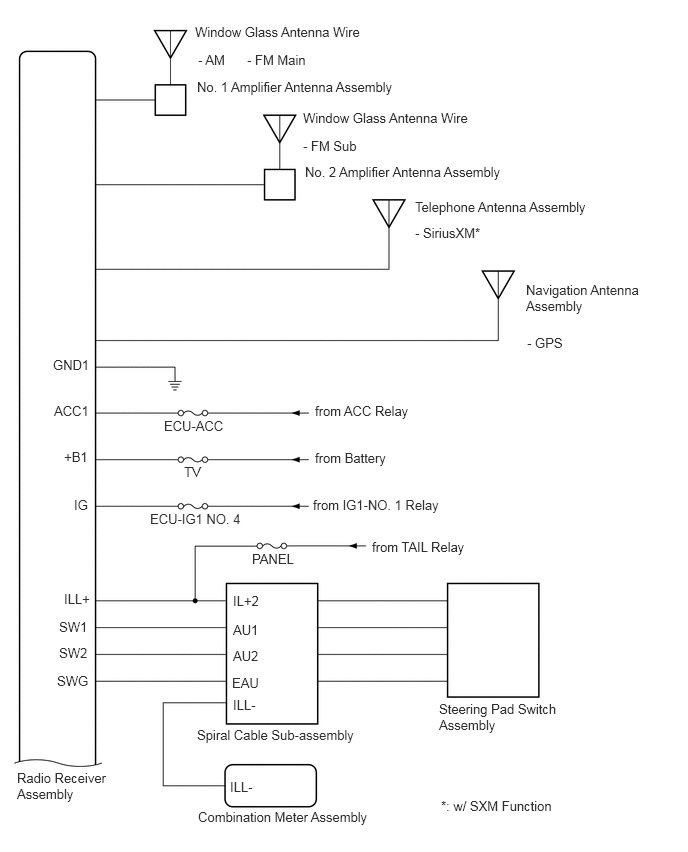

Fig 1: Audio / Video System Diagram (1 Of 11)

GTY827489

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

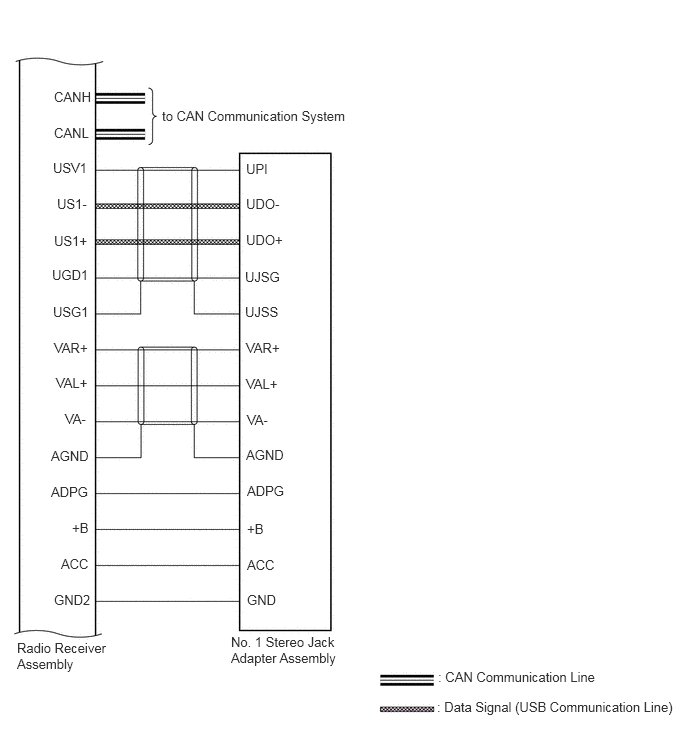

Fig 2: Audio / Video System Wiring Diagram (2 Of 11)

GTY800795

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

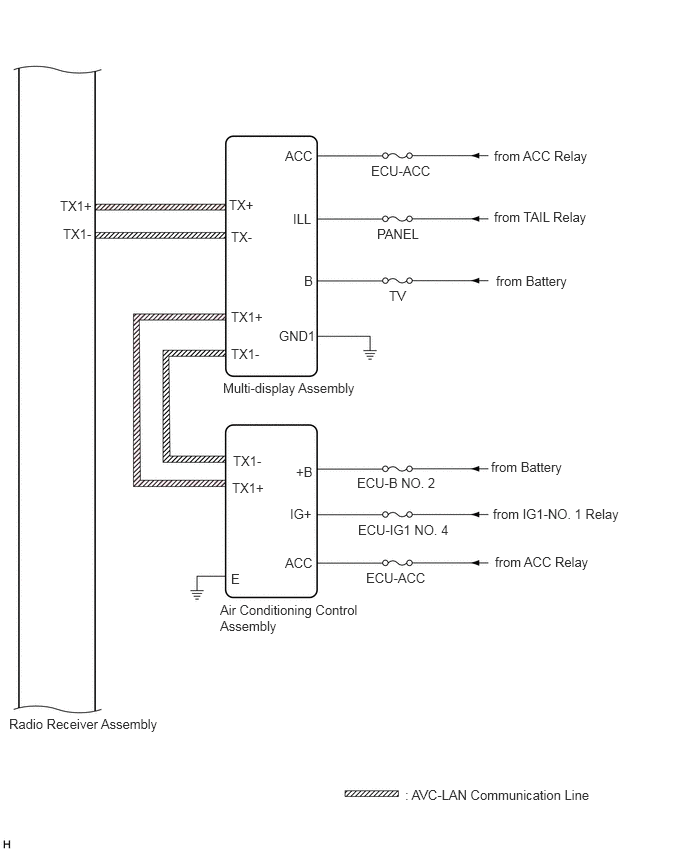

Fig 3: Audio / Video System Diagram (3 Of 11)

GTY838668

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/ Parking Assist Monitor System

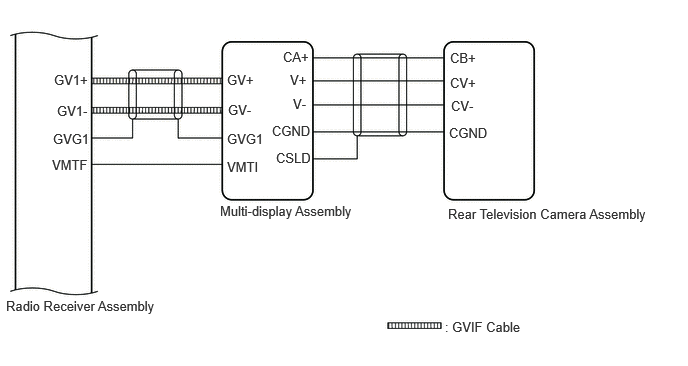

Fig 4: Audio / Video System Diagram (4 Of 11)

GTY1087728

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/ Panoramic View Monitor System

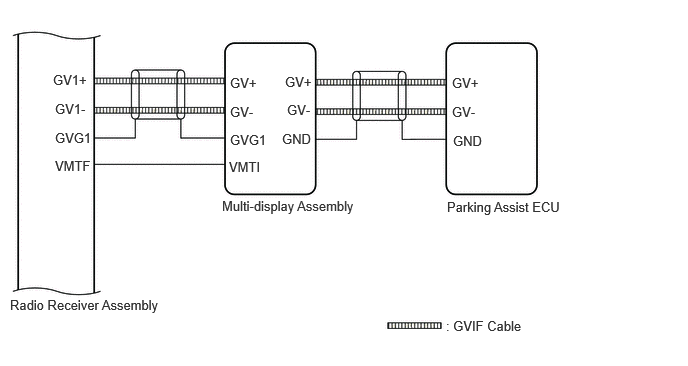

Fig 5: Audio / Video System Diagram (5 Of 11)

GTY1088103

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

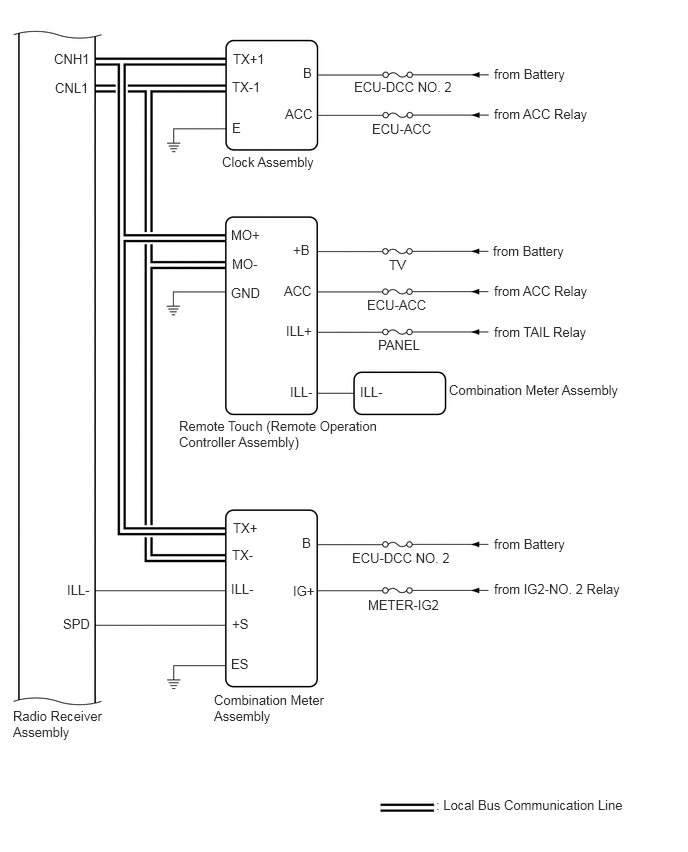

Fig 6: Audio / Video System Diagram (6 Of 11)

GTY788248

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/ Manual (SOS) Switch

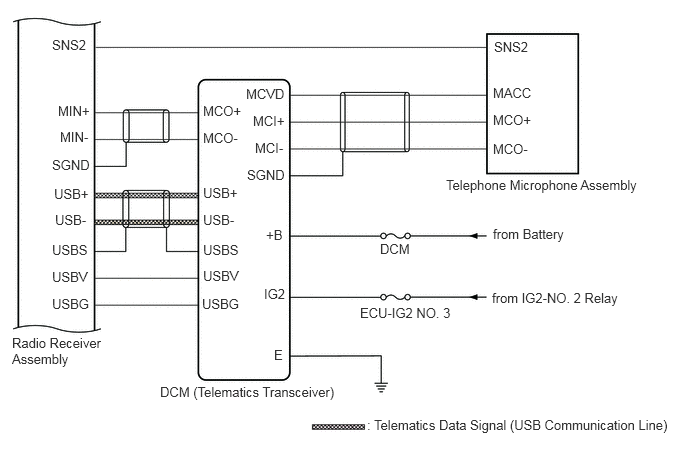

Fig 7: Audio / Video System Diagram (7 Of 11)

GTY962150

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/o Manual (SOS) Switch

Fig 8: Audio / Video System Wiring Diagram (8 Of 11)

GTY818831

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for 10 Speakers

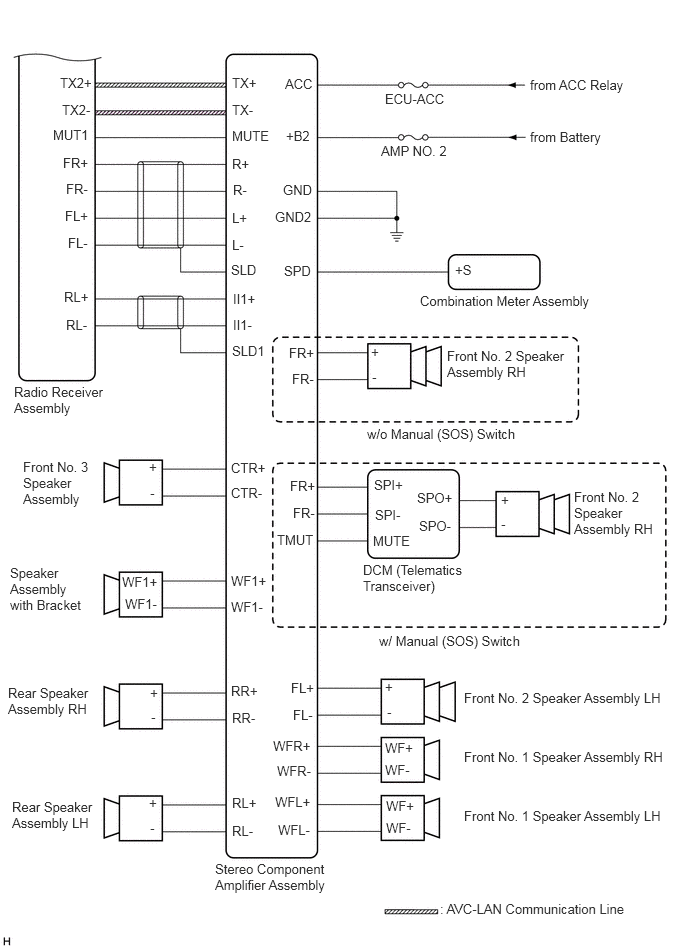

Fig 9: Audio / Video System Diagram (9 Of 11)

GTY798223

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for 17 Speakers

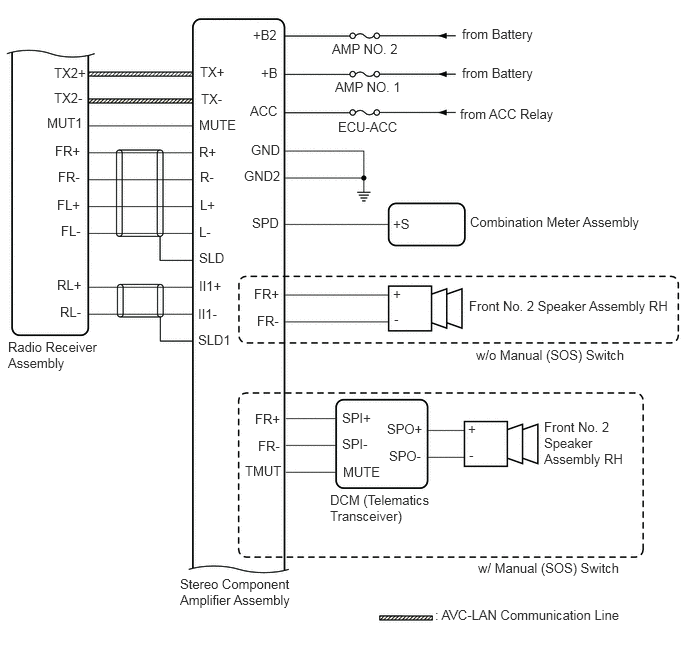

Fig 10: Audio / Video System Diagram (10 Of 11)

GTY805141

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

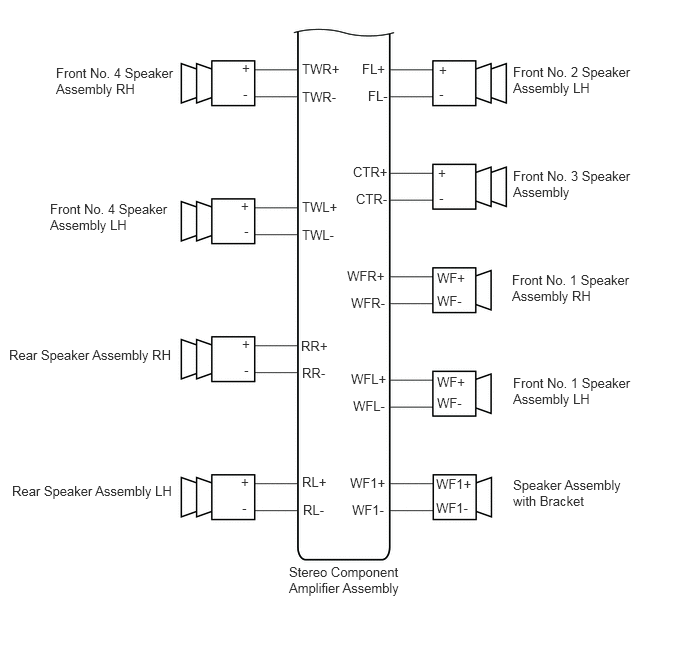

Fig 11: Audio / Video System Wiring Diagram (11 Of 11)

GTY835116

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
