Parts Location [07/2019 - 10/2019]: Illustration
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Lexus ES 350, 2022 Lexus ES 250, 2021 Lexus ES 350, 2021 Lexus ES 250, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Audio And Visual System (For Gasoline Model) Replacement Components (1 of 4) [07/2019 - 10/2019]
| *1 | TELEPHONE MICROPHONE ASSEMBLY | *2 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-ACC FUSE - ECU-IG1 NO. 4 FUSE - PANEL FUSE - METER-IG2 FUSE - ECU-IG2 NO. 3 FUSE (w/ Manual (SOS) Switch) - ECU-B NO. 2 FUSE - DCM FUSE (w/ Manual (SOS) Switch) - ECU-DCC NO. 2 FUSE |
| *3 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - TV FUSE |
*4 | NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY - AMP NO. 1 FUSE (for 17 Speakers) - AMP NO. 2 FUSE |
Fig 1: Audio And Visual System (For Gasoline Model) Replacement Components (2 of 4) [07/2019 - 10/2019]
| *1 | SPIRAL CABLE SUB-ASSEMBLY | *2 | STEERING PAD SWITCH ASSEMBLY |
| *3 | RADIO RECEIVER ASSEMBLY | *4 | REMOTE TOUCH (REMOTE OPERATION CONTROLLER ASSEMBLY) |
| *5 | NO. 1 STEREO JACK ADAPTER ASSEMBLY | *6 | CLOCK ASSEMBLY |
| *7 | COMBINATION METER ASSEMBLY | *8 | DLC3 |
| *9 | MULTI-DISPLAY ASSEMBLY | *10 | DCM (TELEMATICS TRANSCEIVER) (w/ Manual (SOS) Switch) |
| *11 | NAVIGATION ANTENNA ASSEMBLY | *12 | ANTENNA CORD SUB-ASSEMBLY |
| *13 | AIR CONDITIONING CONTROL ASSEMBLY | *14 | - GPS |

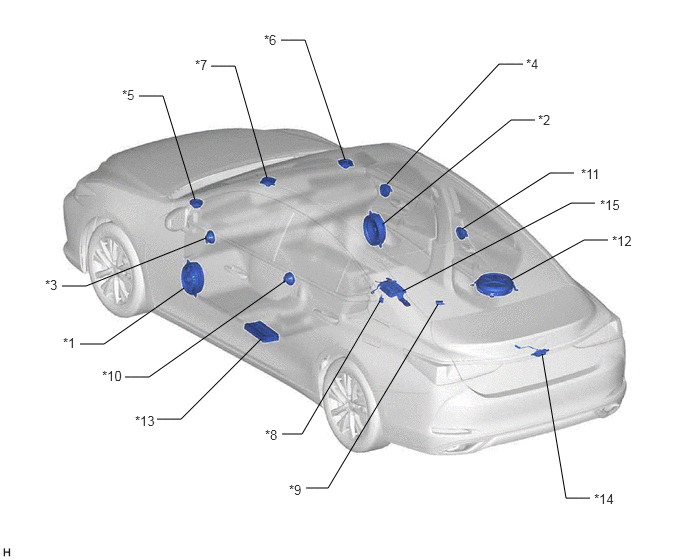

Fig 1: Audio And Visual System (For Gasoline Model) Replacement Components (3 of 4) [07/2019 - 10/2019]
| *1 | FRONT NO. 1 SPEAKER ASSEMBLY LH | *2 | FRONT NO. 1 SPEAKER ASSEMBLY RH |
| *3 | FRONT NO. 4 SPEAKER ASSEMBLY LH (for 17 Speakers) | *4 | FRONT NO. 4 SPEAKER ASSEMBLY RH (for 17 Speakers) |
| *5 | FRONT NO. 2 SPEAKER ASSEMBLY LH | *6 | FRONT NO. 2 SPEAKER ASSEMBLY RH |
| *7 | FRONT NO. 3 SPEAKER ASSEMBLY | *8 | RADIO SETTING CONDENSER |
| *9 | RADIO SETTING CONDENSER (w/ High Mounted Stop Light Radio Setting Condenser) | *10 | REAR SPEAKER ASSEMBLY LH |
| *11 | REAR SPEAKER ASSEMBLY RH | *12 | SPEAKER ASSEMBLY WITH BRACKET |
| *13 | STEREO COMPONENT AMPLIFIER ASSEMBLY | *14 | REAR TELEVISION CAMERA ASSEMBLY (w/ Parking Assist Monitor System) |
| *15 | PARKING ASSIST ECU (w/ Panoramic View Monitor System) |
- | - |
Fig 1: Audio And Visual System (For Gasoline Model) Replacement Components (4 of 4) [07/2019 - 10/2019]
| *1 | WINDOW GLASS ANTENNA WIRE | *2 | TELEPHONE ANTENNA ASSEMBLY - SiriusXM (w/ SXM Function) |
| *3 | NO. 4 ANTENNA CORD SUB-ASSEMBLY | *4 | NO. 2 ANTENNA CORD SUB-ASSEMBLY |
| *5 | NO. 3 ANTENNA CORD SUB-ASSEMBLY (w/ SXM Function) | *6 | NO. 1 AMPLIFIER ANTENNA ASSEMBLY |
| *7 | NO. 2 AMPLIFIER ANTENNA ASSEMBLY | *8 | - FM SUB |
| *9 | - FM MAIN - AM |
- | - |
