Parts Location [06/2018 - 08/2021]: Illustration
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2024 Lexus ES 350, 2024 Lexus ES 250, 2023 Lexus ES 350, 2023 Lexus ES 250, and 2022 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

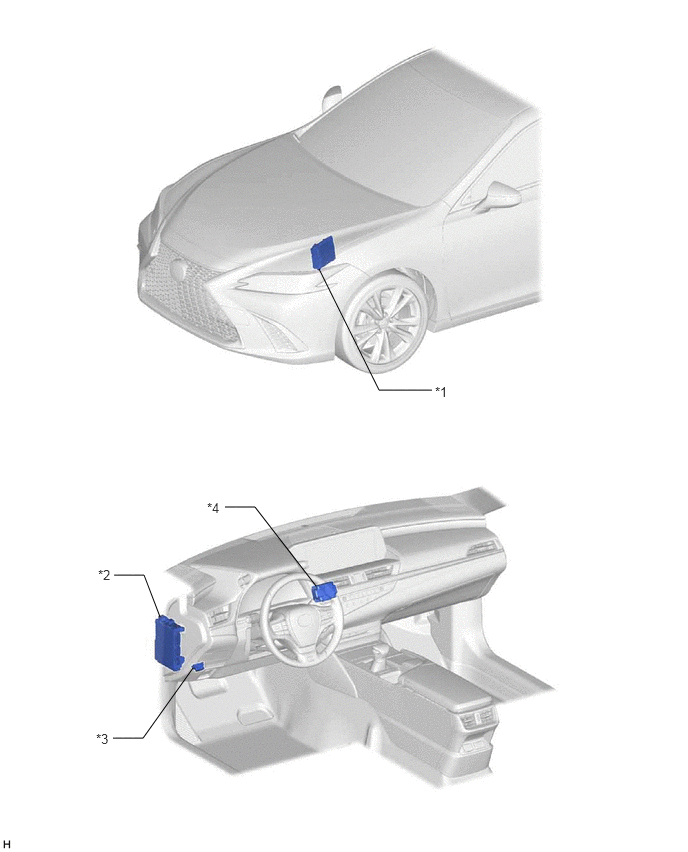

Fig 1: Active Noise Control System (For Gasoline Model) Replacement Components (1 Of 2) [06/2018 - 08/2021]
| *1 | ECM | *2 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-B NO. 2 FUSE - ECU-IG1 NO. 4 FUSE - ECU-ACC FUSE |
| *3 | DLC3 | *4 | STEREO COMPONENT EQUALIZER ASSEMBLY |

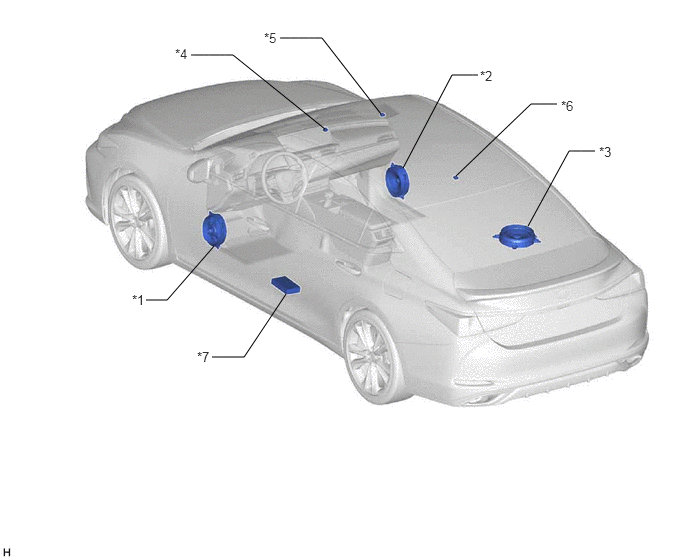

Fig 1: Active Noise Control System (For Gasoline Model) Replacement Components (2 Of 2) [06/2018 - 08/2021]
| *1 | FRONT NO. 1 SPEAKER ASSEMBLY LH | *2 | FRONT NO. 1 SPEAKER ASSEMBLY RH |
| *3 | SPEAKER ASSEMBLY WITH BRACKET | *4 | NO. 1 ACTIVE NOISE CONTROL MICROPHONE |
| *5 | NO. 2 ACTIVE NOISE CONTROL MICROPHONE | *6 | NO. 3 ACTIVE NOISE CONTROL MICROPHONE |
| *7 | STEREO COMPONENT AMPLIFIER ASSEMBLY | - | - |
