Parts Location [06/2018 - ]: Illustration

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

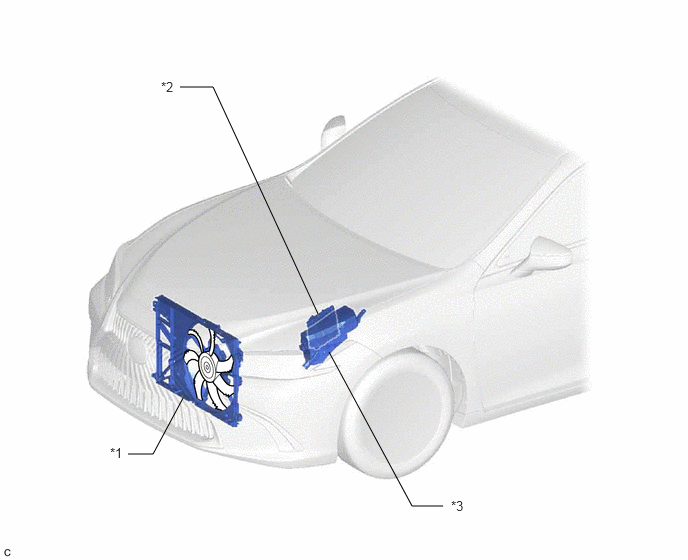

GTY811592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FAN WITH MOTOR ASSEMBLY
- COOLING FAN MOTOR
- COOLING FAN ECU		 *2 ECM
*3 NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY
- EFI-MAIN NO. 1 RELAY		 - -
