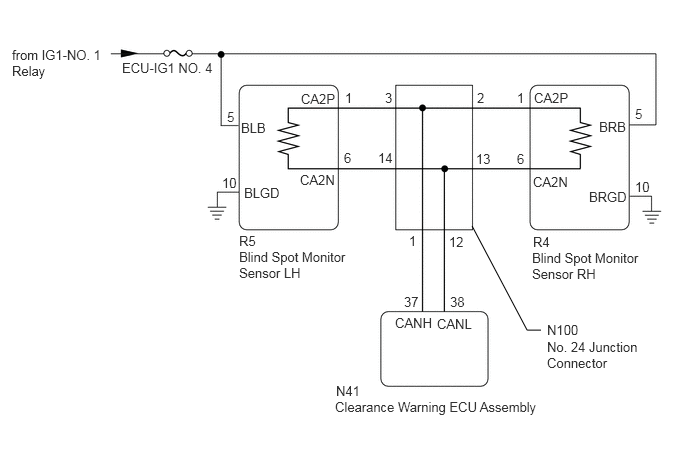

DTC U0232: Lost Communication with Blind Spot Monitor Slave Module; DTC U0233: Lost Communication with Blind Spot Monitor Master Module [06/2018 - 09/2022]: Wiring Diagram

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Lexus ES 350, 2022 Lexus ES 250, 2021 Lexus ES 350, 2021 Lexus ES 250, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
