DTC U0232: Lost Communication with Blind Spot Monitor Slave Module; DTC U0233: Lost Communication with Blind Spot Monitor Master Module [06/2018 - 09/2022]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Lexus ES 350, 2022 Lexus ES 250, 2021 Lexus ES 350, 2021 Lexus ES 250, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK DTC
    1. Check for DTCs.

      Body Electrical > Advanced Parking Guidance/ICS/Intuitive P/A > Trouble Codes

      Result

      Result Proceed to
      DTC U0232 is only output A
      DTC U0233 is only output B
      DTC U0232 and U0233 are output C

    Result:

    B

    See step  5

    Result:

    C

    See step  8

    Result:

    A

    See step  2

  2. CHECK CAN BUS MAIN WIRE
    1. Disconnect the cable from the negative (-) battery terminal.
    2. Disconnect the R5 blind spot monitor sensor LH connector.
    3. Measure the resistance according to the value(s) in the table below.
      GTY828583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to blind spot monitor sensor LH)

      Standard Resistance

      Tester Connection Condition Specified Condition
      R5-1 (CA2P) - R5-6 (CA2N) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (BLIND SPOT MONITOR SENSOR LH - No. 24 JUNCTION CONNECTOR)

    Result:

    OK

    See step  3

  3. CHECK HARNESS AND CONNECTOR (BLIND SPOT MONITOR SENSOR LH - BODY GROUND)

    Refer to PROCEDURE - Step 4

    Result

    Proceed to
    OK
    NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (BLIND SPOT MONITOR SENSOR LH - No. 24 JUNCTION CONNECTOR)

    Result:

    OK

    See step  4

  4. CHECK HARNESS AND CONNECTOR (BLIND SPOT MONITOR SENSOR LH POWER SOURCE)

    Refer to PROCEDURE - Step 3

    Result

    Proceed to
    OK
    NG

    Result:

    OK

    REPLACE BLIND SPOT MONITOR SENSOR LH. Refer to  REMOVAL [06/2018 - 08/2021]  , or refer to  REMOVAL [08/2021 - 09/2022]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  5. CHECK CAN BUS MAIN WIRE
    1. Disconnect the cable from the negative (-) battery terminal.
    2. Disconnect the R4 blind spot monitor sensor RH connector.
    3. Measure the resistance according to the value(s) in the table below.
      GTY781081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to blind spot monitor sensor RH)

      Standard Resistance

      Tester Connection Condition Specified Condition
      R4-1 (CA2P) - R4-6 (CA2N) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (BLIND SPOT MONITOR SENSOR RH - No. 24 JUNCTION CONNECTOR)

    Result:

    OK

    See step  6

  6. CHECK HARNESS AND CONNECTOR (BLIND SPOT MONITOR SENSOR RH - BODY GROUND)

    Refer to PROCEDURE - Step 2

    Result

    Proceed to
    OK
    NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (BLIND SPOT MONITOR SENSOR RH - No. 24 JUNCTION CONNECTOR)

    Result:

    OK

    See step  7

  7. CHECK HARNESS AND CONNECTOR (BLIND SPOT MONITOR SENSOR RH POWER SOURCE)

    Refer to PROCEDURE - Step 1

    Result

    Proceed to
    OK
    NG

    Result:

    OK

    REPLACE BLIND SPOT MONITOR SENSOR RH. Refer to  REMOVAL [06/2018 - 08/2021]  , or refer to  REMOVAL [08/2021 - 09/2022]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  8. CHECK CAN BUS MAIN WIRE (BLIND SPOT MONITOR SENSOR LH)
    1. Turn the engine switch off.
    2. Disconnect the cable from the negative (-) battery terminal.
    3. Measure the resistance according to the value(s) in the table below.
      GTY807936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

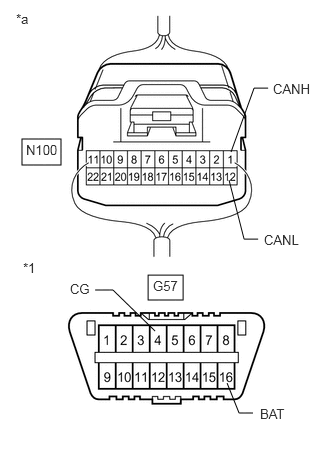

      *1 DLC3
      *a Component with harness connected
      (No. 24 Junction Connector)

      Standard Resistance

      Tester Connection Condition Specified Condition Result
      N100-1 (CANH) - N100-12 (CANL) Cable disconnected from negative (-) battery terminal 54 to 69 Ω Below 54 Ω: Short circuit between bus lines
      70 Ω or more: Open circuit in main bus lines
      N100-1 (CANH) - G57-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher Below 200 Ω: CANH short to ground
      N100-12 (CANL) - G57-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher Below 200 Ω: CANL short to ground
      N100-1 (CANH) - G57-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Below 6 kΩ: CANH +B short
      N100-12 (CANL) - G57-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher Below 6 kΩ: CANL +B short

      Result

      Result Proceed to
      OK A
      Open circuit in CAN main bus lines B
      Short circuit between bus lines C
      • Short to ground
      • +B short
      		 D

    Result:

    B

    See step  11

    Result:

    C

    See step  15

    Result:

    D

    See step  19

    Result:

    A

    See step  9

  9. CONFIRM CAN BUS WIRE (CLEARANCE WARNING ECU ASSEMBLY)
    1. Disconnect the N41 clearance warning ECU assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      N41-37 (CANH) - N41-38 (CANL) Cable disconnected from negative (-) battery terminal 54 to 69 Ω
      GTY837617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to clearance warning ECU assembly)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN BUS WIRE (CLEARANCE WARNING ECU ASSEMBLY - No. 24 JUNCTION CONNECTOR)

    Result:

    OK

    See step  10

  10. CHECK DTC
    1. Clear the DTCs.

      Body Electrical > Advanced Parking Guidance/ICS/Intuitive P/A > Clear DTCs

    2. Check for DTCs.

      Body Electrical > Advanced Parking Guidance/ICS/Intuitive P/A > Trouble Codes

      Result

      Result Proceed to
      DTC U0232 and U0233 are output A
      DTC U0232 and U0233 are not output B

    Result:

    A

    REPLACE CLEARANCE WARNING ECU ASSEMBLY. Refer to  REMOVAL [06/2018 - 08/2021]  , or refer to  REMOVAL [08/2021 - 09/2022]

    Result:

    B

    USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [06/2018 - ]

  11. CHECK FOR OPEN IN CAN BUS WIRE (No. 24 JUNCTION CONNECTOR)
    1. Disconnect the N100 No. 24 junction connector.
      GTY814003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

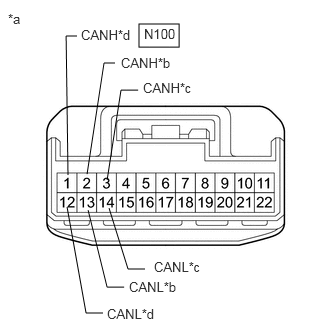

      *a Front view of wire harness connector
      (to No. 24 Junction Connector)
      *b to blind spot monitor sensor RH CAN main wire
      *c to blind spot monitor sensor LH CAN main wire
      *d to clearance warning ECU assembly CAN wire
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      N100-3 (CANH) - N100-14 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω
      N100-2 (CANH) - N100-13 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω
      N100-1 (CANH) - N100-12 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher

      Result

      Result Proceed to
      OK A
      NG (to blind spot monitor sensor RH CAN main wire) B
      NG (to blind spot monitor sensor LH CAN main wire) C
      NG (to clearance warning ECU assembly CAN wire) D

    Result:

    A

    REPLACE No. 24 JUNCTION CONNECTOR

    Result:

    C

    See step  13

    Result:

    D

    See step  14

    Result:

    B

    See step  12

  12. CHECK FOR OPEN IN CAN BUS MAIN WIRE (BLIND SPOT MONITOR SENSOR RH)
    1. Reconnect the N100 No. 24 junction connector.
    2. Disconnect the R4 blind spot monitor sensor RH connector.
      GTY781081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to blind spot monitor sensor RH)
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R4-1 (CA2P) - R4-6 (CA2N) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE BLIND SPOT MONITOR SENSOR RH. Refer to  REMOVAL [06/2018 - 08/2021]  , or refer to  REMOVAL [08/2021 - 09/2022]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (BLIND SPOT MONITOR SENSOR RH - No. 24 JUNCTION CONNECTOR)

  13. CHECK FOR OPEN IN CAN BUS MAIN WIRE (BLIND SPOT MONITOR SENSOR LH)
    1. Reconnect the N100 No. 24 junction connector.
    2. Disconnect the R5 blind spot monitor sensor LH connector.
      GTY828583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to blind spot monitor sensor LH)
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R5-1 (CA2P) - R5-6 (CA2N) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE BLIND SPOT MONITOR SENSOR LH. Refer to  REMOVAL [06/2018 - 08/2021]  , or refer to  REMOVAL [08/2021 - 09/2022]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (BLIND SPOT MONITOR SENSOR LH - No. 24 JUNCTION CONNECTOR)

  14. CHECK FOR OPEN IN CAN BUS WIRE (CLEARANCE WARNING ECU ASSEMBLY)
    1. Reconnect the N100 No. 24 junction connector.
    2. Disconnect the N41 clearance warning ECU assembly connector.
      GTY837617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to clearance warning ECU assembly)
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      N41-37 (CANH) - N41-38 (CANL) Cable disconnected from negative (-) battery terminal 54 to 69 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CLEARANCE WARNING ECU ASSEMBLY. Refer to  REMOVAL [06/2018 - 08/2021]  , or refer to  REMOVAL [08/2021 - 09/2022]

    Result:

    NG

    REPAIR OR REPLACE CAN BUS WIRE (CLEARANCE WARNING ECU ASSEMBLY - No. 24 JUNCTION CONNECTOR)

  15. CHECK FOR SHORT IN CAN BUS WIRES (No. 24 JUNCTION CONNECTOR)
    1. Disconnect the N100 No. 24 junction connector.
      GTY814003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 24 Junction Connector)
      *b to blind spot monitor sensor RH CAN main wire
      *c to blind spot monitor sensor LH CAN main wire
      *d to clearance warning ECU assembly CAN wire
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      N100-3 (CANH) - N100-14 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω
      N100-2 (CANH) - N100-13 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω
      N100-1 (CANH) - N100-12 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher

      Result

      Result Proceed to
      OK A
      NG (to blind spot monitor sensor RH CAN main wire) B
      NG (to blind spot monitor sensor LH CAN main wire) C
      NG (to clearance warning ECU assembly CAN wire) D

    Result:

    A

    REPLACE No. 24 JUNCTION CONNECTOR

    Result:

    C

    See step  17

    Result:

    D

    See step  18

    Result:

    B

    See step  16

  16. CHECK FOR SHORT IN CAN BUS WIRES (BLIND SPOT MONITOR SENSOR RH)
    1. Reconnect the N100 No. 24 junction connector.
    2. Disconnect the R4 blind spot monitor sensor RH connector.
      GTY781081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to blind spot monitor sensor RH)
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R4-1 (CA2P) - R4-6 (CA2N) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE BLIND SPOT MONITOR SENSOR RH. Refer to  REMOVAL [06/2018 - 08/2021]  , or refer to  REMOVAL [08/2021 - 09/2022]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (BLIND SPOT MONITOR SENSOR RH - No. 24 JUNCTION CONNECTOR)

  17. CHECK FOR SHORT IN CAN BUS WIRES (BLIND SPOT MONITOR SENSOR LH)
    1. Reconnect the N100 No. 24 junction connector.
    2. Disconnect the R5 blind spot monitor sensor LH connector.
      GTY828583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to blind spot monitor sensor LH)
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R5-1 (CA2P) - R5-6 (CA2N) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE BLIND SPOT MONITOR SENSOR LH. Refer to  REMOVAL [06/2018 - 08/2021]  , or refer to  REMOVAL [08/2021 - 09/2022]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (BLIND SPOT MONITOR SENSOR LH - No. 24 JUNCTION CONNECTOR)

  18. CHECK FOR SHORT IN CAN BUS WIRES (CLEARANCE WARNING ECU ASSEMBLY)
    1. Reconnect the N100 No. 24 junction connector.
    2. Disconnect the N41 clearance warning ECU assembly connector.
      GTY837617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to clearance warning ECU assembly)
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      N41-37 (CANH) - N41-38 (CANL) Cable disconnected from negative (-) battery terminal 54 to 69 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CLEARANCE WARNING ECU ASSEMBLY. Refer to  REMOVAL [06/2018 - 08/2021]  , or refer to  REMOVAL [08/2021 - 09/2022]

    Result:

    NG

    REPAIR OR REPLACE CAN BUS WIRE (CLEARANCE WARNING ECU ASSEMBLY - No. 24 JUNCTION CONNECTOR)

  19. CHECK FOR SHORT IN CAN BUS WIRES (No. 24 JUNCTION CONNECTOR)
    1. Disconnect the N100 No. 24 junction connector.
    2. Measure the resistance according to the value(s) in the table below.

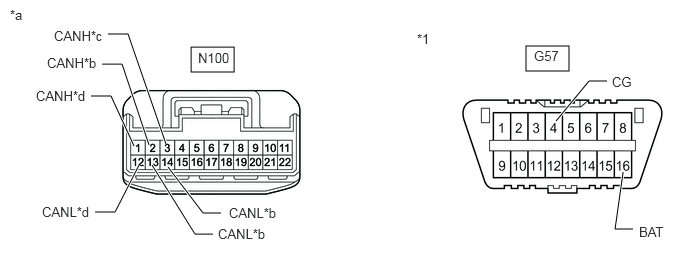

      GTY801018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 24 Junction Connector)      		 *b to blind spot monitor sensor RH CAN main wire
      *c to blind spot monitor sensor LH CAN main wire *d to clearance warning ECU assembly CAN wire

      Standard Resistance

      Tester Connection Condition Specified Condition
      N100-3 (CANH) - G57-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      N100-14 (CANL) - G57-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      N100-3 (CANH) - G57-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      N100-14 (CANL) - G57-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      N100-1 (CANH) - G57-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      N100-12 (CANL) - G57-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      N100-1 (CANH) - G57-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      N100-12 (CANL) - G57-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      N100-2 (CANH) - G57-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      N100-13 (CANL) - G57-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      N100-2 (CANH) - G57-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      N100-13 (CANL) - G57-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher

      Result

      Result Proceed to
      OK A
      NG (to blind spot monitor sensor RH CAN main wire) B
      NG (to blind spot monitor sensor LH CAN main wire) C
      NG (to clearance warning ECU assembly CAN wire) D

    Result:

    A

    REPLACE No. 24 JUNCTION CONNECTOR

    Result:

    C

    See step  21

    Result:

    D

    See step  22

    Result:

    B

    See step  20

  20. CHECK FOR SHORT IN CAN BUS WIRES (BLIND SPOT MONITOR SENSOR RH)
    1. Reconnect the N100 No. 24 junction connector.
    2. Disconnect the R4 blind spot monitor sensor RH connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R4-1 (CA2P) - G57-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      R4-6 (CA2N) - G57-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      R4-1 (CA2P) - G57-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      R4-6 (CA2N) - G57-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      GTY800776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3
      *a Front view of wire harness connector
      (to blind spot monitor sensor RH)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE BLIND SPOT MONITOR SENSOR RH. Refer to  REMOVAL [06/2018 - 08/2021]  , or refer to  REMOVAL [08/2021 - 09/2022]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (BLIND SPOT MONITOR SENSOR RH - No. 24 JUNCTION CONNECTOR)

  21. CHECK FOR SHORT IN CAN BUS WIRES (BLIND SPOT MONITOR SENSOR LH)
    1. Reconnect the N100 No. 24 junction connector.
    2. Disconnect the R5 blind spot monitor sensor LH connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R5-1 (CA2P) - G57-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      R5-6 (CA2N) - G57-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      R5-1 (CA2P) - G57-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      R5-6 (CA2N) - G57-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      GTY800767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3
      *a Front view of wire harness connector
      (to blind spot monitor sensor LH)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE BLIND SPOT MONITOR SENSOR LH. Refer to  REMOVAL [06/2018 - 08/2021]  , or refer to  REMOVAL [08/2021 - 09/2022]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (BLIND SPOT MONITOR SENSOR LH - No. 24 JUNCTION CONNECTOR)

  22. CHECK FOR SHORT IN CAN BUS WIRES (CLEARANCE WARNING ECU ASSEMBLY)
    1. Reconnect the N100 No. 24 junction connector.
    2. Disconnect the N41 clearance warning ECU assembly connector.

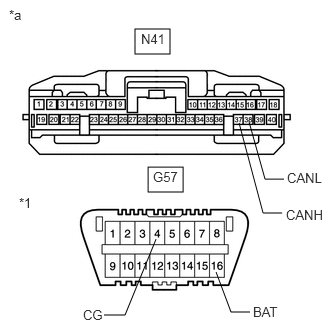

      GTY807763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3
      *a Front view of wire harness connector
      (to clearance warning ECU assembly)
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      N41-37 (CANH) - G57-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      N41-38 (CANL) - G57-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      N41-37 (CANH) - G57-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      N41-38 (CANL) - G57-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CLEARANCE WARNING ECU ASSEMBLY. Refer to  REMOVAL [06/2018 - 08/2021]  , or refer to  REMOVAL [08/2021 - 09/2022]

    Result:

    NG

    REPAIR OR REPLACE CAN BUS WIRE (CLEARANCE WARNING ECU ASSEMBLY - No. 24 JUNCTION CONNECTOR)

scientia non olet · About LEMON Manuals
