Operation not Accepted Even If Air Conditioning Switch is Operated [06/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2024 Lexus ES 350, 2024 Lexus ES 250, 2023 Lexus ES 350, 2023 Lexus ES 250, and 2022 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FOR DTC

Connect the Techstream to the DLC3.
Turn the engine switch on (IG).
Turn the Techstream on.
Enter the following menus: Body Electrical / Air Conditioner / Trouble Codes.

Check for DTCs.

Body Electrical > Air Conditioner > Trouble Codes

Result

Result	Proceed to
B14B2 is not output	A
B14B2 is output	B

Result:

GO TO DTC B14B2. Refer to DTC B14B2: Lost Communication with Front Panel LIN [06/2018 - ]

Result:

See step 2

CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER ASSEMBLY - BATTERY AND BODY GROUND)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

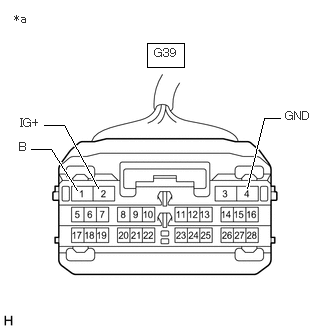

*a	Front view of wire harness connector (to Air Conditioning Amplifier Assembly)

Disconnect the G39 air conditioning amplifier assembly connector.

Measure the voltage and resistance according to the value(s) in the table below.

Standard Voltage

Tester Connection	Condition	Specified Condition
G39-1 (B) - Body ground	Always	11 to 14 V
G39-2 (IG+) - Body ground	Engine switch on (IG)	11 to 14 V
G39-2 (IG+) - Body ground	Engine switch off	Below 1 V

Standard Resistance

Tester Connection	Condition	Specified Condition
G39-4 (GND) - Body ground	Always	Below 1 Ω

Result

Proceed to
OK
NG

Result:

REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY. Refer to REMOVAL [06/2018 - 08/2020] , or refer to REMOVAL [08/2020 - ]

Result:

REPAIR OR REPLACE HARNESS OR CONNECTOR
