Parts Location [08/2020 - ]: Illustration

WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.

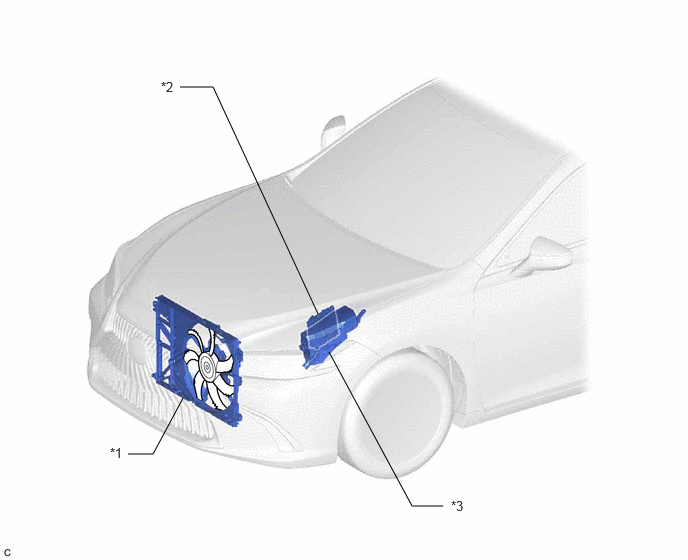

Fig 1: Cooling fan Parts Location (A25A-FKS)
GTY947112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FAN WITH MOTOR ASSEMBLY
- COOLING FAN MOTOR
- COOLING FAN ECU		 *2 ECM
*3 NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY
- EFI-MAIN NO. 1 RELAY		 - -
