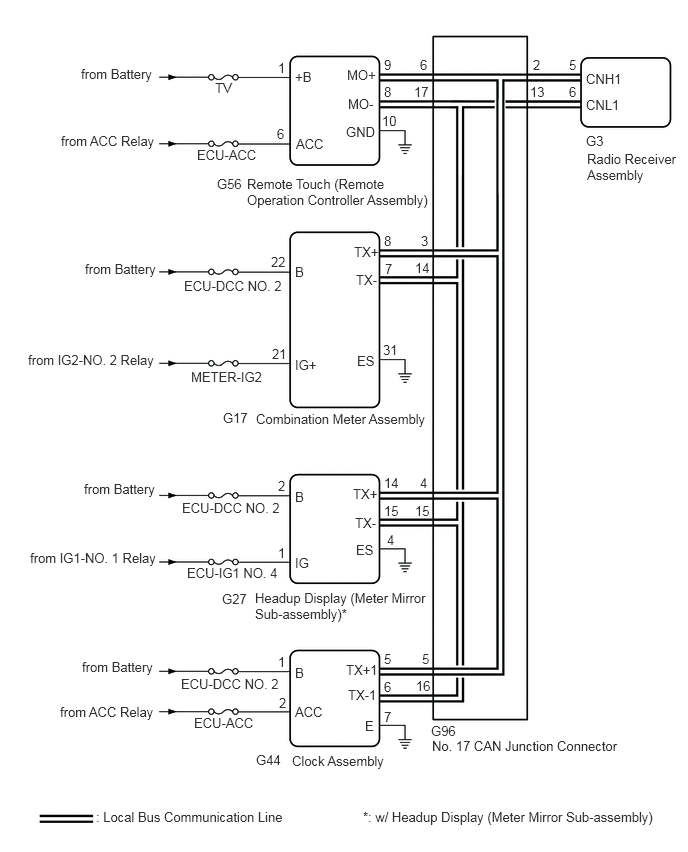

DTC B1323: Lost Communication with Haptic Device; DTC B1324: Lost Communication with Meter; DTC B1325: Lost Communication with HUD; DTC B1326: Lost Communication with Clock Device (Local-CAN) [06/2018 - 08/2021]: Wiring Diagram

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Lexus ES 350, 2022 Lexus ES 250, 2021 Lexus ES 350, 2021 Lexus ES 250, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
