Terminals Of Ecu [06/2018 - 10/2019]

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2024 Lexus ES 350, 2024 Lexus ES 250, 2023 Lexus ES 350, 2023 Lexus ES 250, and 2022 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

CHECK DCM (TELEMATICS TRANSCEIVER)

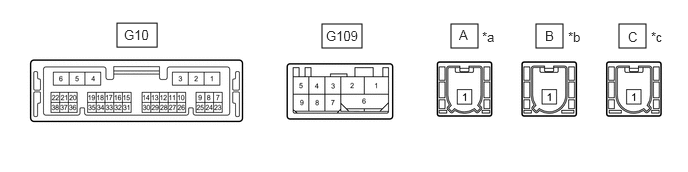

Fig 1: DCM (Telematics Transceiver) Connector End View

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Connector Color: Natural (to Telephone Antenna (Sub))	*b	Connector Color: Gray (to GPS Antenna)
*c	Connector Color: Blue (to Telephone Antenna (Main))	-	-

Terminal No. (Symbol)	Wiring Color	Terminal Description	Condition	Specified Condition
G10-1 (+B) - G10-4 (E)	GR - W-B	Battery power supply	Always	11 to 14 V
G10-2 (SPI+) - G10-4 (E)	B - W-B	Sound signal	Audio system playing	A waveform synchronized with sound is output
G10-3 (SPI-) - G10-4 (E)	W - W-B	Sound signal	Audio system playing	A waveform synchronized with sound is output
G10-4 (E) - Body ground	W-B - Body ground	Ground	Always	Below 1 V
G10-5 (SPO+) - G10-4 (E)	B - W-B	Sound signal	Audio system playing, or Emergency call mode	A waveform synchronized with sound is output
G10-6 (SPO-) - G10-4 (E)	W - W-B	Sound signal	Audio system playing, or Emergency call mode	A waveform synchronized with sound is output
G10-7 (IG2) - G10-4 (E)	P - W-B	IG power supply	Engine switch on (IG)	11 to 14 V
G10-7 (IG2) - G10-4 (E)	P - W-B	IG power supply	Engine switch off	Below 1 V
G10-8 (ACC) - G10-4 (E)	P - W-B	ACC power supply	Engine switch on (ACC)	11 to 14 V
G10-8 (ACC) - G10-4 (E)	P - W-B	ACC power supply	Engine switch off	Below 1 V
G10-9 (SLED) - G10-4 (E)	SB - W-B	Manual (SOS) switch illumination power supply	Engine switch on (ACC)	11 to 14 V
G10-9 (SLED) - G10-4 (E)	SB - W-B	Manual (SOS) switch illumination power supply	Engine switch off	Below 1 V
G10-11 (IND1) - G10-4 (E)	LG - W-B	Manual (SOS) switch red indicator illumination signal	For 2 seconds after turning the Engine switch on (IG)	1 to 8.5 V
G10-11 (IND1) - G10-4 (E)	LG - W-B	Manual (SOS) switch red indicator illumination signal	Engine switch off	Below 1 V
G10-12 (IND2) - G10-4 (E)	G - W-B	Manual (SOS) switch green indicator illumination signal	For 2 seconds after turning the Engine switch on (IG)	1 to 8.5 V
G10-12 (IND2) - G10-4 (E)	G - W-B	Manual (SOS) switch green indicator illumination signal	Engine switch off	Below 1 V
G10-15 (CANP)	R	CAN communication signal	-	-
G10-16 (CANN)	W	CAN communication signal	-	-
G10-17 (MUTE) - G10-4 (E)	BE - W-B	Mute signal	Audio system playing	3.5 V or higher
G10-17 (MUTE) - G10-4 (E)	BE - W-B	Mute signal	Emergency call mode	Below 1 V
G10-18 (MCO+) - G10-4 (E)*1	P - W-B	Sent microphone voice signal	See "Check Microphone" Refer to OPERATION CHECK [06/2018 - 10/2019]	-
G10-18 (MCO+) - G10-4 (E)*2	P - W-B	Sent microphone voice signal	See "Check Microphone" Refer to OPERATION CHECK [06/2018 - 10/2019]	-
G10-19 (MCO-) - G10-4 (E)*1	L - W-B	Sent microphone voice signal	See "Check Microphone" Refer to OPERATION CHECK [06/2018 - 10/2019]	-
G10-19 (MCO-) - G10-4 (E)*2	L - W-B	Sent microphone voice signal	See "Check Microphone" Refer to OPERATION CHECK [06/2018 - 10/2019]	-
G10-24 (GSW) - G10-4 (E)	Y - W-B	Collision detection signal	Engine switch on (IG)	Pulse generation (Refer to waveform 1)
G10-26 (SIG-) - G10-4 (E)	B - W-B	Ground	Always	Below 1 V
G10-27 (SIG1) - G10-4 (E)	R - W-B	Manual (SOS) switch condition signal	Manual (SOS) switch not pressed	1.5 to 2.0 V
G10-27 (SIG1) - G10-4 (E)	R - W-B	Manual (SOS) switch condition signal	Manual (SOS) switch pressed	0.5 to 0.8 V
G10-32 (SGND) - G10-4 (E)	Shield - W-B	Shield ground	Always	Below 1 V
G10-33 (MCVD) - G10-4 (E)	B - W-B	Telephone microphone assembly power supply	Engine switch off	Below 1 V
G10-33 (MCVD) - G10-4 (E)	B - W-B	Telephone microphone assembly power supply	Engine switch on (ACC)	4 to 6 V
G10-34 (MCI+) - G10-4 (E)*1	W - W-B	Receive microphone voice signal	See "Check Microphone" Refer to OPERATION CHECK [06/2018 - 10/2019]	-
G10-34 (MCI+) - G10-4 (E)*2	W - W-B	Receive microphone voice signal	See "Check Microphone" Refer to OPERATION CHECK [06/2018 - 10/2019]	-
G10-35 (MCI-) - G10-4 (E)*1	R - W-B	Receive microphone voice signal	See "Check Microphone" Refer to OPERATION CHECK [06/2018 - 10/2019]	-
G10-35 (MCI-) - G10-4 (E)*2	R - W-B	Receive microphone voice signal	See "Check Microphone" Refer to OPERATION CHECK [06/2018 - 10/2019]	-

*1: w/o Navigation System
*2: w/ Navigation System

Oscilloscope waveform:

Fig 2: Waveform 1

Waveform 1

Item	Condition
Tester connection	G10-24 (GSW) - G10-4 (E)
Tool setting	5.0 V/DIV., 20 ms/DIV.
Vehicle condition	Engine switch on (IG)
