Parts Location [10/2019 - 08/2021]: Illustration

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2024 Lexus ES 350, 2024 Lexus ES 250, 2023 Lexus ES 350, 2023 Lexus ES 250, and 2022 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

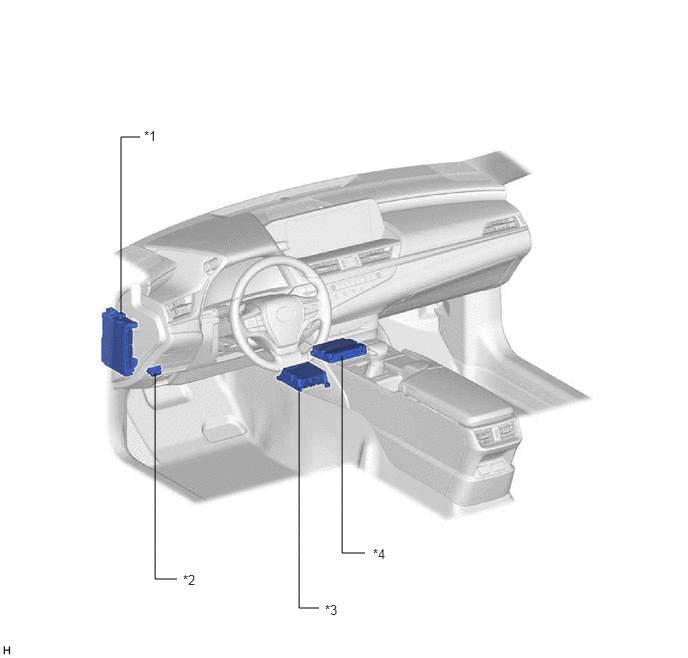

Fig 1: Safety Connect System Parts Location (Except Hybrid) (10/2019 -) (1 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - DCM FUSE - ECU-IG2 NO. 3 FUSE	*2	DLC3
*3	AIRBAG ECU ASSEMBLY	*4	DCM (TELEMATICS TRANSCEIVER) - MOBILEPHONE BATTERY

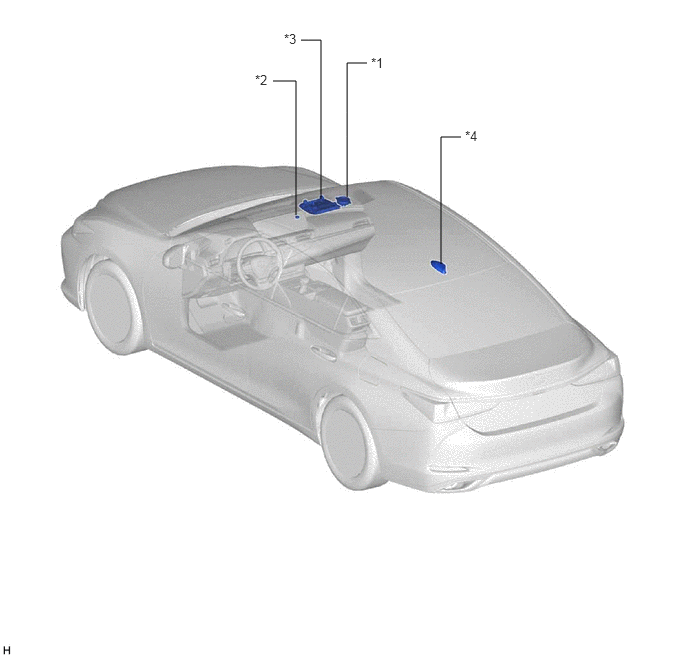

Fig 1: Safety Connect System Parts Location (Except Hybrid) (10/2019 -) (2 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT NO. 2 SPEAKER ASSEMBLY (RH)	*2	TELEPHONE MICROPHONE ASSEMBLY
*3	MAP LIGHT SUB-ASSEMBLY - MANUAL (SOS) SWITCH	*4	TELEPHONE AND GPS ANTENNA ASSEMBLY (for Roof Side) - Telephone Main - GPS

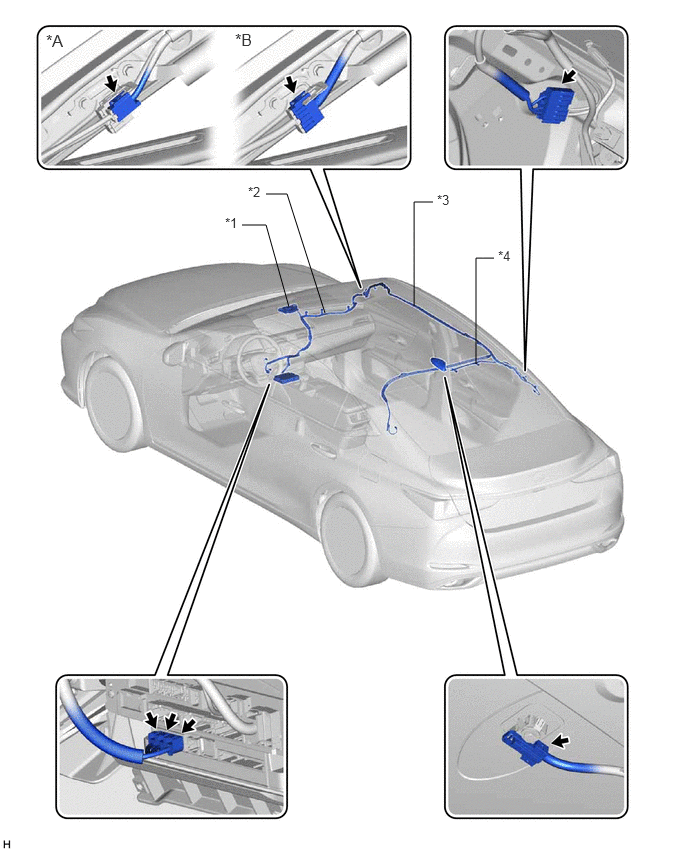

Fig 1: Safety Connect System Parts Location (Except Hybrid) (10/2019 -) (3 of 3)

*A	w/ SXM Function	*B	w/o SXM Function
*1	TELEPHONE AND GPS ANTENNA ASSEMBLY (for Front Side) - Telephone Sub	*2	TELEPHONE AND GPS ANTENNA CORD (ANTENNA CORD SUB-ASSEMBLY)
*3	TELEPHONE AND GPS ANTENNA CORD (NO. 2 ANTENNA CORD SUB-ASSEMBLY)	*4	TELEPHONE AND GPS ANTENNA CORD (NO. 3 ANTENNA CORD SUB-ASSEMBLY)
