Speaker Circuit [06/2018 - 10/2019]: Wiring Diagram

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Lexus ES 350, 2022 Lexus ES 250, 2021 Lexus ES 350, 2021 Lexus ES 250, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

for 10 Speakers

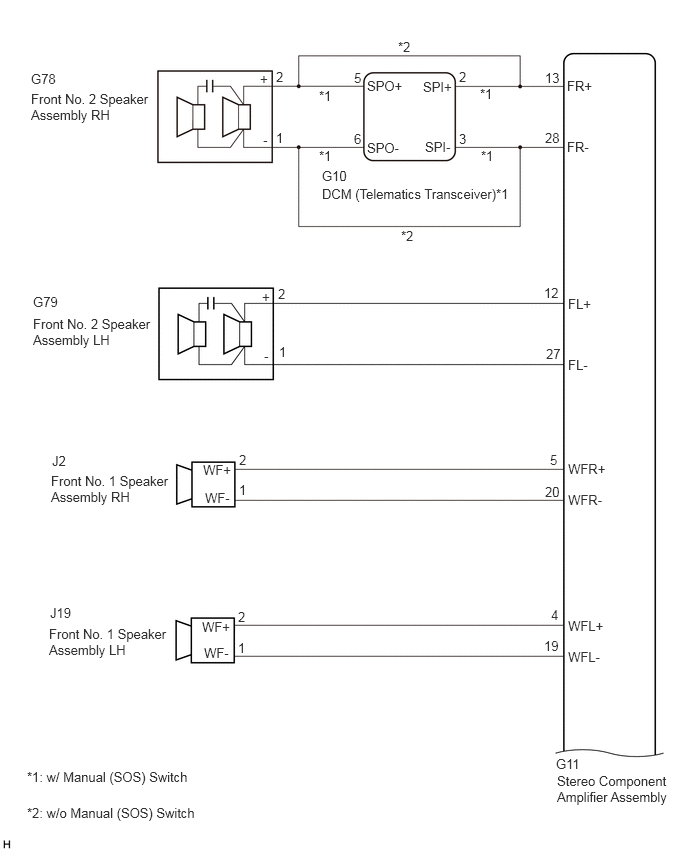

GTY788494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

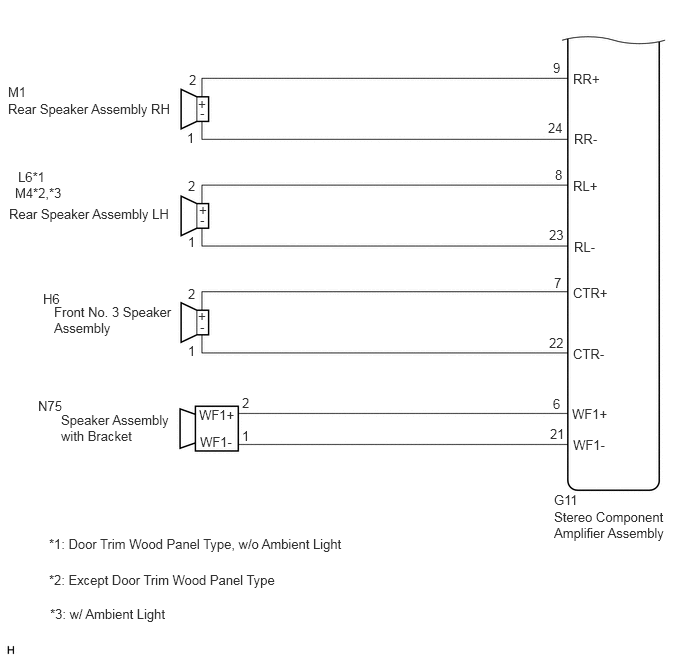

GTY803248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for 17 Speakers

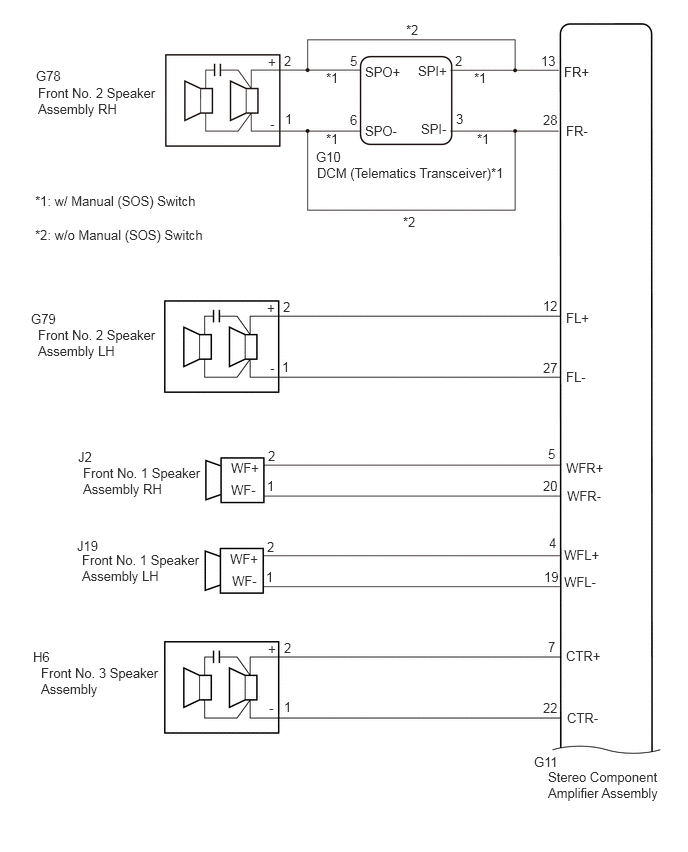

GTY830357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

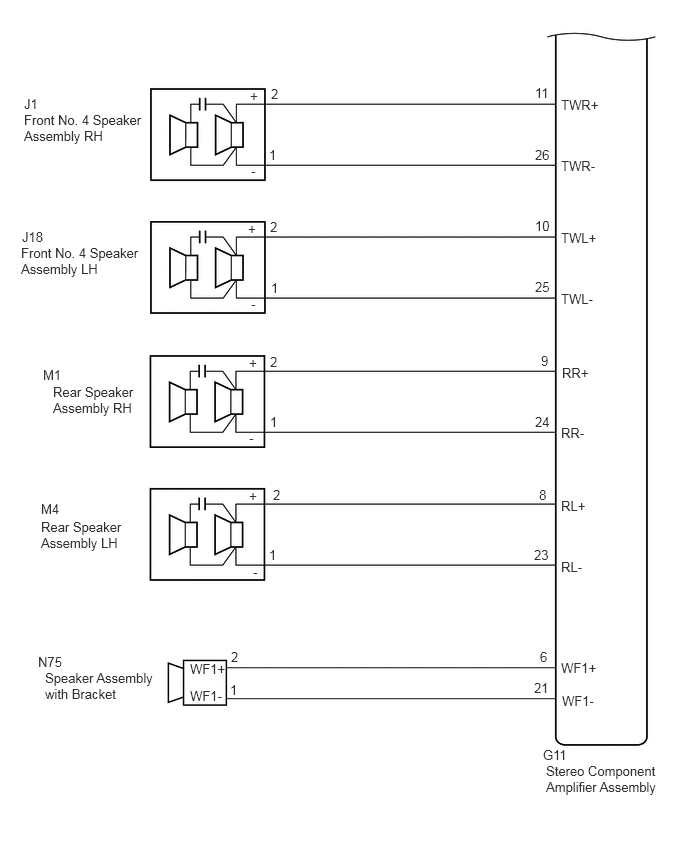

GTY819966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
