Microphone Circuit [06/2018 - 10/2019]: Wiring Diagram

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Lexus ES 350, 2022 Lexus ES 250, 2021 Lexus ES 350, 2021 Lexus ES 250, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

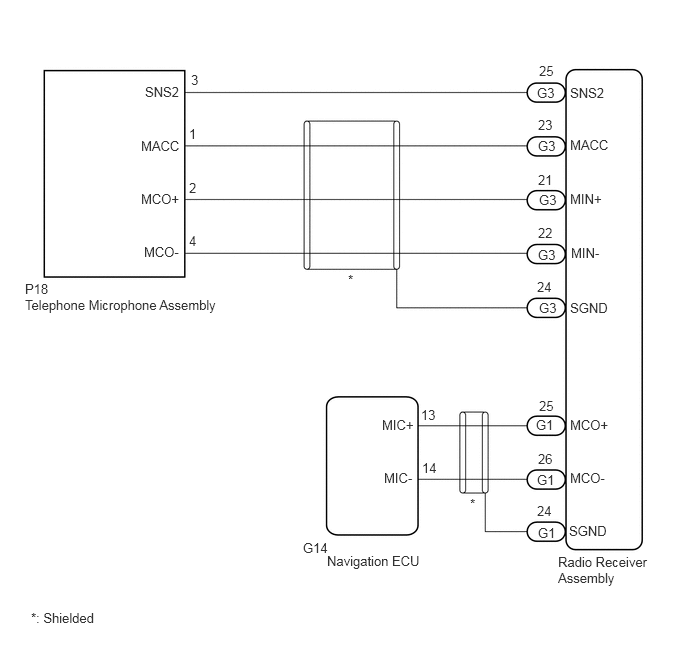

w/o Manual (SOS) Switch

GTY801141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

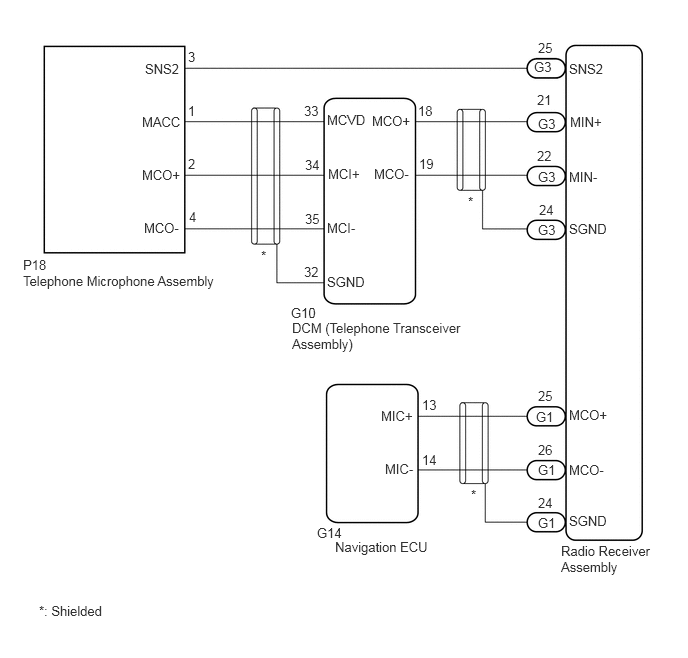

w/ Manual (SOS) Switch

GTY811841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
