Parts Location [08/2021 - 09/2022]: Illustration
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Lexus ES 350, 2022 Lexus ES 250, 2021 Lexus ES 350, 2021 Lexus ES 250, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

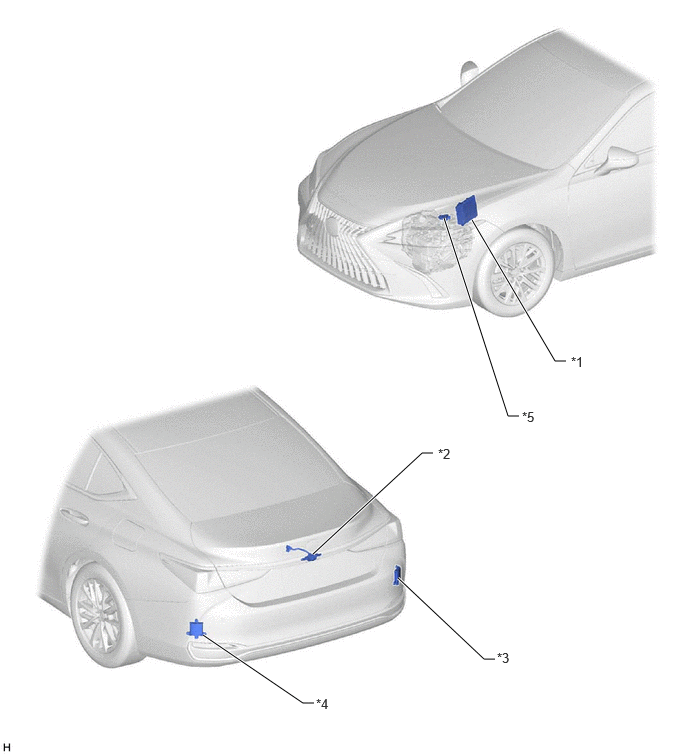

| *1 | ECM | *2 | REAR TELEVISION CAMERA ASSEMBLY |
| *3 | BLIND SPOT MONITOR SENSOR RH (w/ Blind Spot Monitor System) | *4 | BLIND SPOT MONITOR SENSOR LH (w/ Blind Spot Monitor System) |
| *5 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY (for 8 inch display) | - | - |

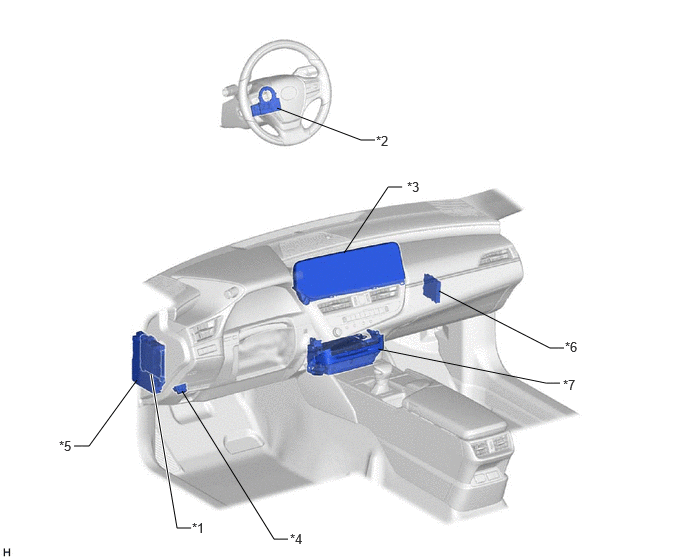

| *1 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *2 | STEERING SENSOR |
| *3 | MULTI-DISPLAY ASSEMBLY | *4 | DLC3 |
| *5 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 2 FUSE - ECU-DCC NO. 1 FUSE - IG1-NO. 1 RELAY - BKUP LP RELAY (for 8 inch display) |
*6 | CLEARANCE WARNING ECU ASSEMBLY (w/ Parking Support Alert System) |
| *7 | RADIO RECEIVER ASSEMBLY | - | - |
