Components [06/2018 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

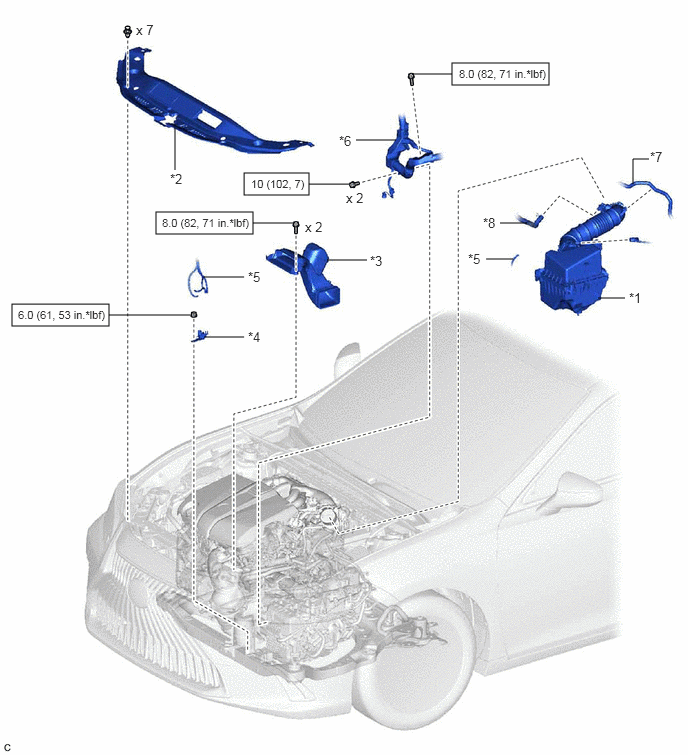

Fig 1: Vacuum Switching Valve (For Engine Mounting) Replacement Components With Torque Specifications
| *1 | AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE | *2 | COOL AIR INTAKE DUCT SEAL |
| *3 | INLET AIR CLEANER ASSEMBLY | *4 | VACUUM SWITCHING VALVE (for Active Control Engine Mount System) |
| *5 | VACUUM HOSE | *6 | ENGINE WIRE |
| *7 | NO. 1 FUEL VAPOR FEED HOSE | *8 | NO. 2 VENTILATION HOSE |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
