Removal [06/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

DRAIN ENGINE COOLANT
Refer to PROCEDURE - Step 1

REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

Disconnect the mass air flow meter sub-assembly connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disengage the 2 wire harness clamps.
Disconnect the vacuum hose from the air cleaner hose.

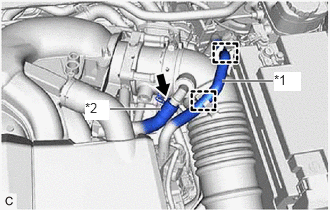

Disengage the 2 clamps to disconnect the No. 1 fuel vapor feed hose from the air cleaner hose.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	No. 1 Fuel Vapor Feed Hose
*2	No. 2 Ventilation Hose

Slide the clip and disconnect the No. 2 ventilation hose from the air cleaner hose.

Disengage the 2 air cleaner cap clamps.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Air Cleaner Cap Clamp
*b	Guide

Disengage the 2 guides to separate the air cleaner cap sub-assembly from the air cleaner case sub-assembly.

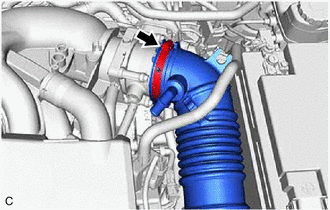

Loosen the hose clamp and remove the air cleaner cap with air cleaner hose from the throttle body with motor assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

Slide the 2 clips and disconnect the No. 2 water by-pass hose and No. 3 water by-pass hose from the throttle body with motor assembly.

*1	No. 2 Water By-pass Hose
*2	No. 3 Water By-pass Hose

Disconnect the throttle body with motor assembly connector.

Remove the 4 bolts and throttle body with motor assembly from the intake air surge tank assembly.
NOTE:
If the throttle body with motor assembly has been struck or dropped, replace it.

REMOVE THROTTLE BODY GASKET

Remove the throttle body gasket from the intake air surge tank assembly.
