Components [06/2018 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

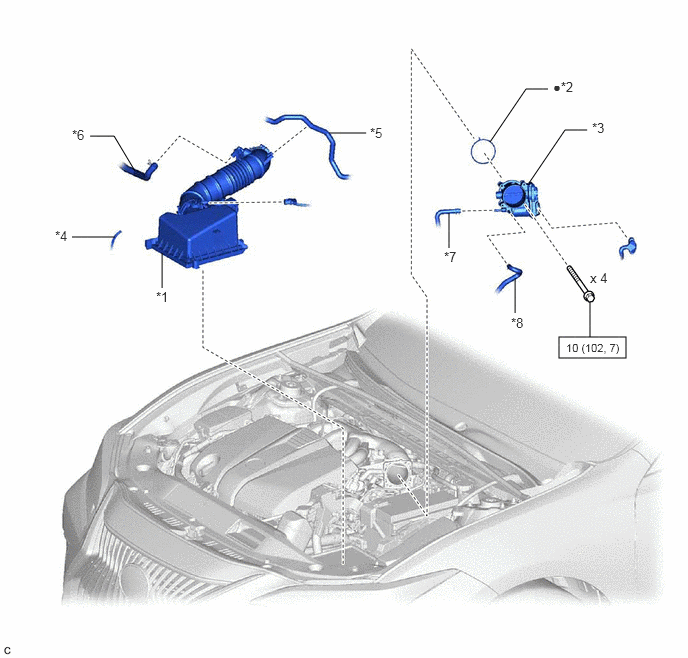

| *1 | AIR CLEANER CAP WITH AIR CLEANER HOSE | *2 | THROTTLE BODY GASKET |
| *3 | THROTTLE BODY WITH MOTOR ASSEMBLY | *4 | VACUUM HOSE |
| *5 | NO. 1 FUEL VAPOR FEED HOSE | *6 | NO. 2 VENTILATION HOSE |
| *7 | NO. 2 WATER BY-PASS HOSE | *8 | NO. 3 WATER BY-PASS HOSE |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
