Components [06/2018 - ]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

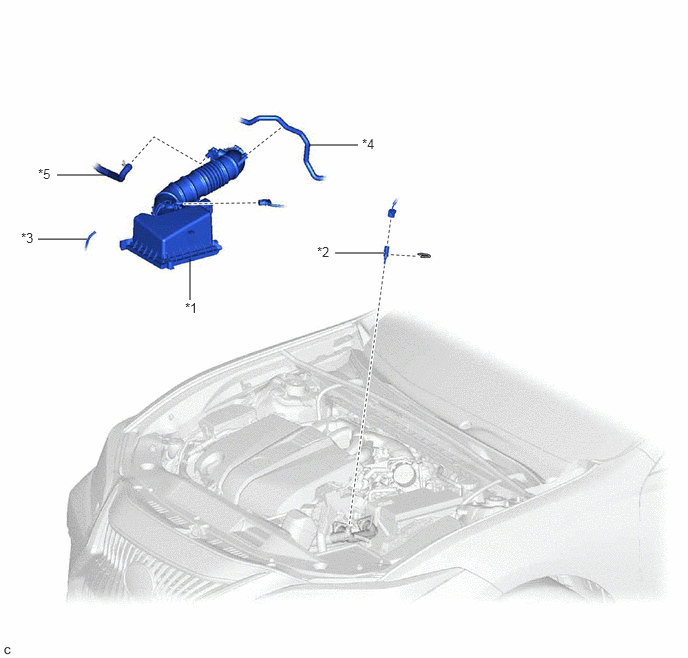

Fig 1: Engine Coolant Temperature Sensor Replacement Components
GTY835778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 AIR CLEANER CAP WITH AIR CLEANER HOSE *2 ENGINE COOLANT TEMPERATURE SENSOR
*3 VACUUM HOSE *4 NO. 1 FUEL VAPOR FEED HOSE
*5 NO. 2 VENTILATION HOSE - -
