Components [06/2018 - ]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

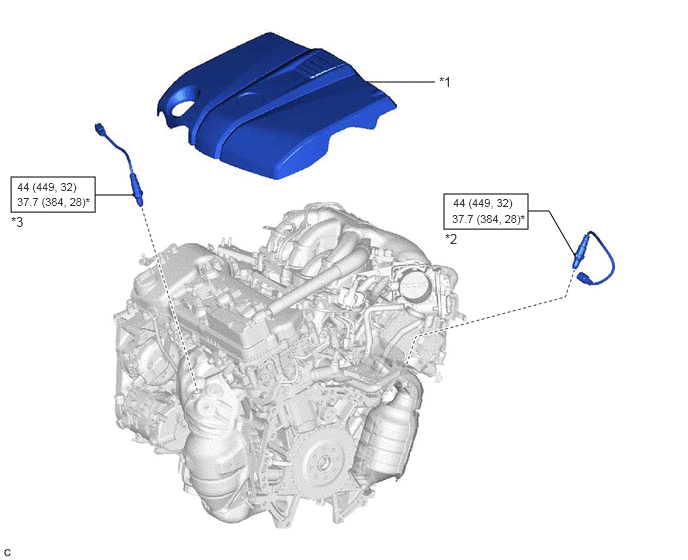

Fig 1: Air Fuel Ratio Sensor Replacement Components With Torque Specifications

*1	V-BANK COVER SUB-ASSEMBLY	*2	AIR FUEL RATIO SENSOR (for Bank 1)
*3	AIR FUEL RATIO SENSOR (for Bank 2)	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with SST
