Components [06/2018 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

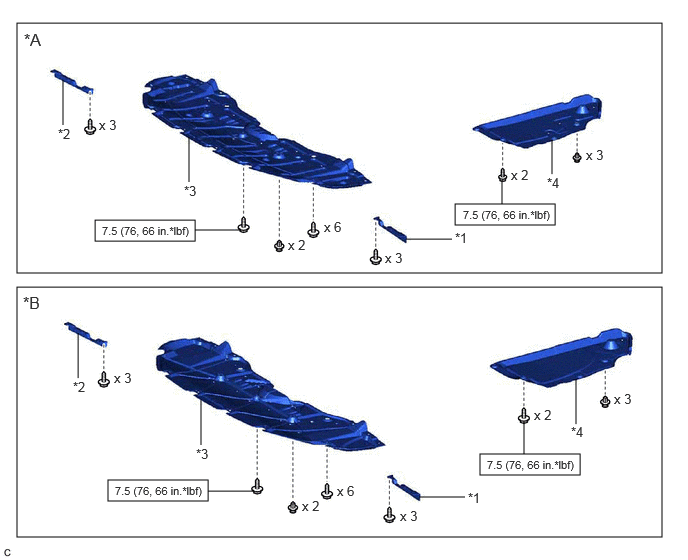

Fig 1: Active Control Engine Mount (Front Side) Replacement Components With Torque Specifications (1 Of 3)
| *A | Type A | *B | Type B |
| *1 | FRONT WHEEL OPENING EXTENSION PAD LH | *2 | FRONT WHEEL OPENING EXTENSION PAD RH |
| *3 | NO. 1 ENGINE UNDER COVER | *4 | NO. 3 ENGINE UNDER COVER |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
Fig 2: Active Control Engine Mount (Front Side) Replacement Components With Torque Specifications (2 Of 3)
| *A | w/ Performance Damper | - | - |
| *1 | SUSPENSION TOWER DAMPER | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

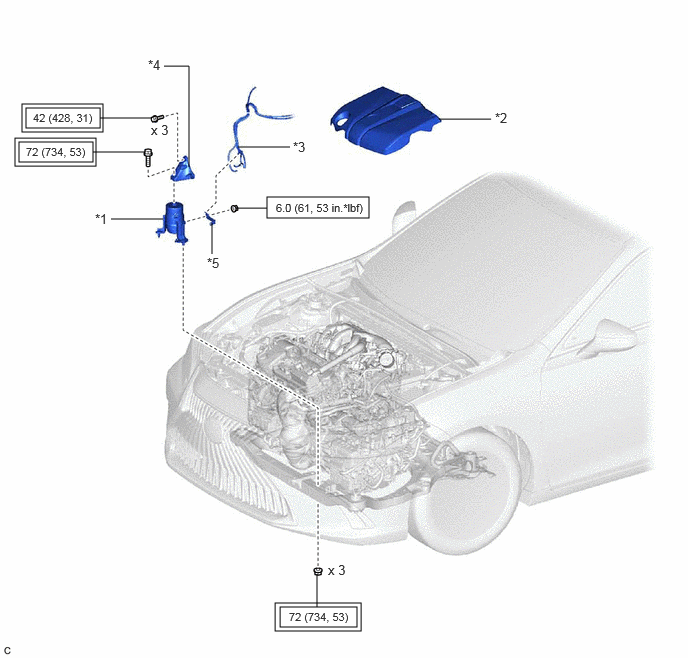

Fig 3: Active Control Engine Mount (Front Side) Replacement Components With Torque Specifications (3 Of 3)
| *1 | FRONT ENGINE MOUNTING INSULATOR | *2 | V-BANK COVER SUB-ASSEMBLY |
| *3 | VACUUM HOSE | *4 | FRONT ENGINE MOUNTING BRACKET |
| *5 | STAY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |
