DTC B1508-19: Turn Signal/Hazard Flasher Circuit Current Above Threshold [07/2019 - 10/2019]: Wiring Diagram

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2024 Lexus ES 350, 2024 Lexus ES 250, 2023 Lexus ES 350, 2023 Lexus ES 250, and 2022 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

LH SIDE
1. For TMC Made

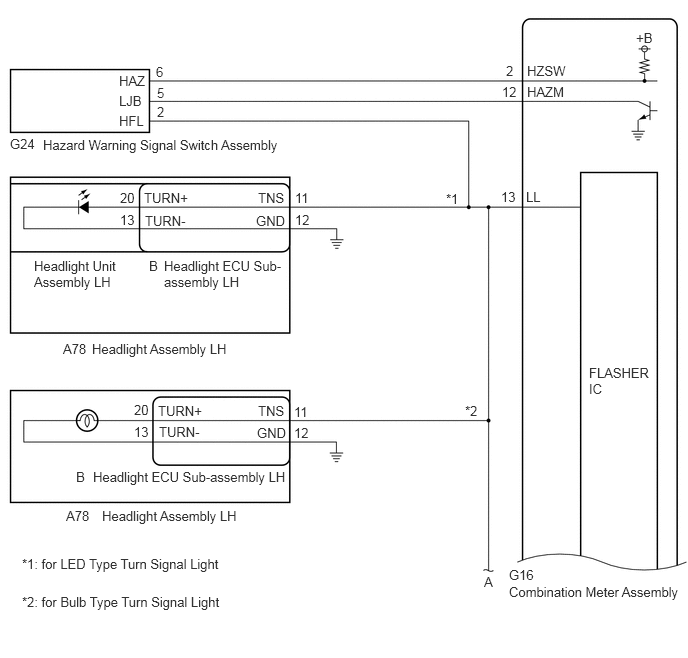

  Fig 1: For TMC Made [07/2019 - 10/2019]
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

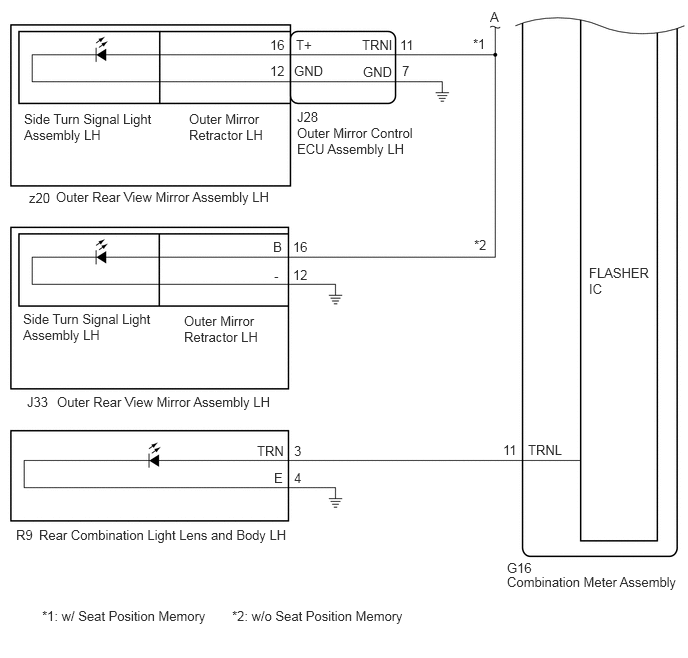

  Fig 2: For TMC Made [07/2019 - 10/2019]
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. For TMMK Made Before Sep. 2019 Production

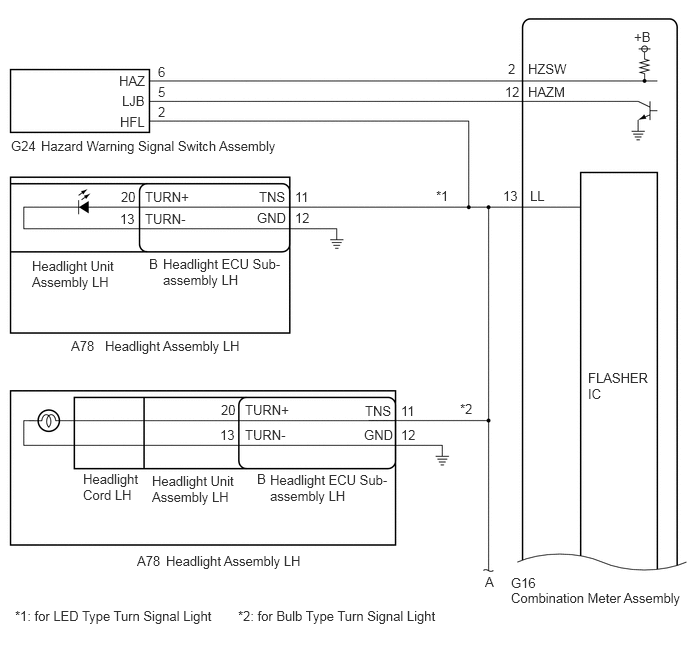

  Fig 3: For TMMK Made Before Sep. 2019 Production [07/2019 - 10/2019]
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

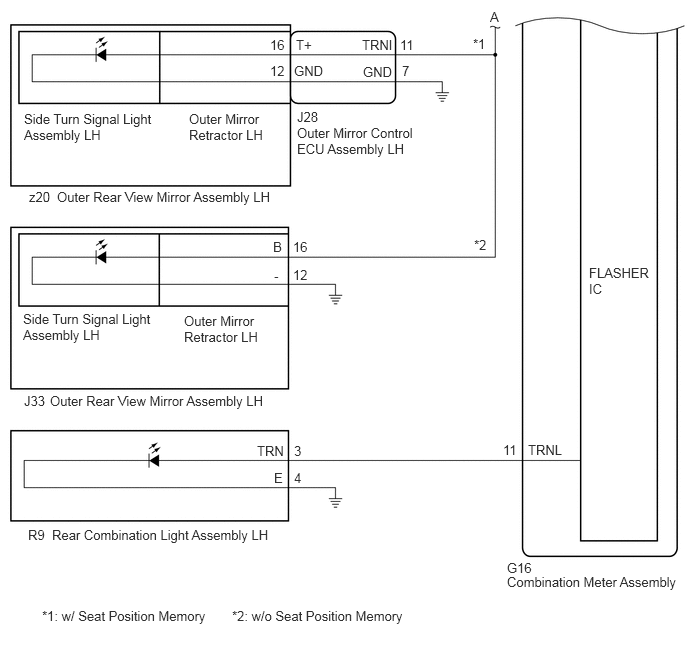

  Fig 4: For TMMK Made Before Sep. 2019 Production [07/2019 - 10/2019]
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. For TMMK Made From Sep. 2019 Production

  Fig 5: For TMMK Made From Sep. 2019 Production [07/2019 - 10/2019]
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 6: For TMMK Made From Sep. 2019 Production [07/2019 - 10/2019]
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
RH SIDE
1. For TMC Made

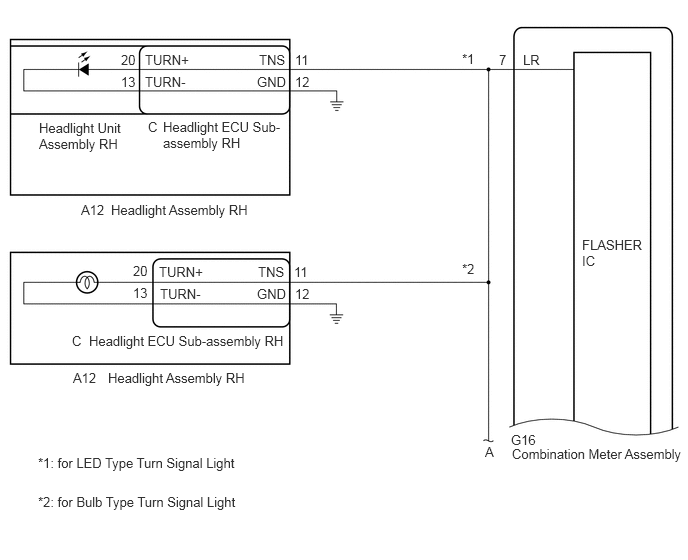

  Fig 7: For TMC Made [07/2019 - 10/2019]
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

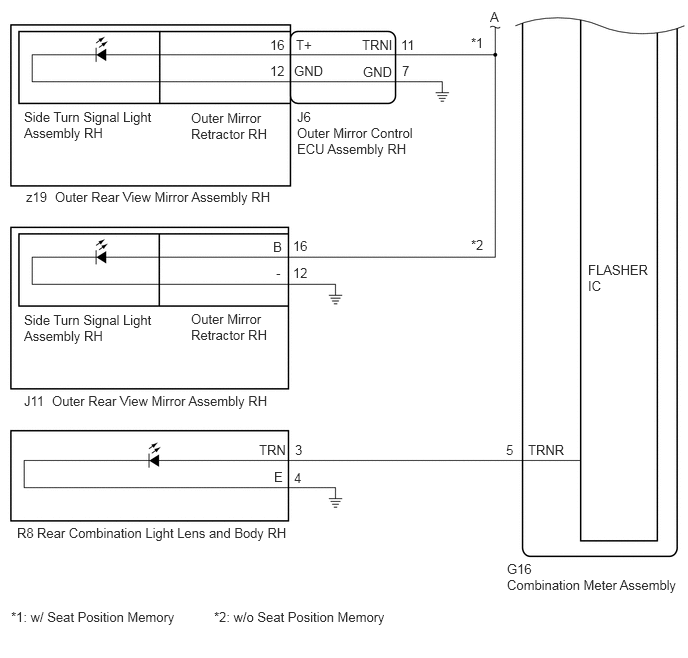

  Fig 8: For TMC Made [07/2019 - 10/2019]
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. For TMMK Made Before Sep. 2019 Production

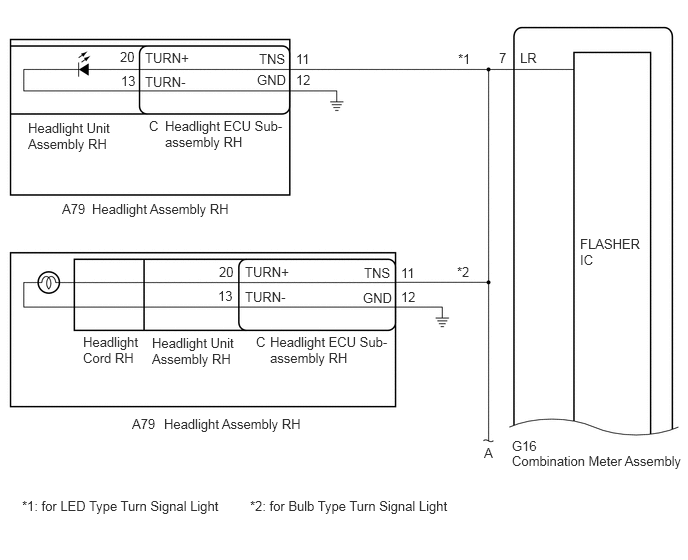

  Fig 9: For TMMK Made Before Sep. 2019 Production [07/2019 - 10/2019]
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 10: For TMMK Made Before Sep. 2019 Production [07/2019 - 10/2019]
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. For TMMK Made From Sep. 2019 Production

  Fig 11: For TMMK Made From Sep. 2019 Production [07/2019 - 10/2019]
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 12: For TMMK Made From Sep. 2019 Production [07/2019 - 10/2019]
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
