DTC B1500-13: Fuel Sender Circuit Open [08/2020 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2024 Lexus ES 350, 2024 Lexus ES 250, 2023 Lexus ES 350, 2023 Lexus ES 250, and 2022 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. CONFIRM MODEL
    1. Choose the model to be inspected.

      Result

      Result Proceed to
      For 2WD A
      For AWD B

    Result:

    B

    See step  5

    Result:

    A

    See step  2

  2. READ VALUE USING TECHSTREAM
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / Combination Meter / Data List.
    5. Read the Data List according to the display on the Techstream.

      Body Electrical > Combination Meter > Data List

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      Fuel Input Fuel level input Min.: 0.00 L, Max.: 655.35 L or Unset
      • Fuel receiver gauge indicates F: 54.24 L
      • Fuel receiver gauge indicates 3/4: 45.45 L
      • Fuel receiver gauge indicates 1/2: 30.30 L
      • Fuel receiver gauge indicates 1/4: 15.15 L
      • Fuel receiver gauge indicates E: 6.06 L
      		 The detected value of the fuel sender gauge assembly is displayed.

      Body Electrical > Combination Meter > Data List

      Tester Display
      Fuel Input

      Result

      Result Proceed to
      Fuel level data can be displayed on the Techstream A
      Fuel level data cannot be displayed on the Techstream B

    Result:

    A

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [06/2018 - 08/2021]  , or refer to  REMOVAL [08/2021 - ]

    Result:

    B

    See step  3

  3. INSPECT FUEL SENDER GAUGE ASSEMBLY
    1. Remove the fuel sender gauge assembly.

      Refer to REMOVAL [06/2018 - 08/2021] , or refer to REMOVAL [08/2021 - 09/2022] , or refer to REMOVAL [09/2022 - ]

    2. Inspect the fuel sender gauge assembly.

      Refer to INSPECTION [06/2018 - ]

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE FUEL SENDER GAUGE ASSEMBLY. Refer to  REMOVAL [06/2018 - 08/2021]  , or refer to  REMOVAL [08/2021 - 09/2022]  , or refer to  REMOVAL [09/2022 - ]

    Result:

    OK

    See step  4

  4. INSPECT FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

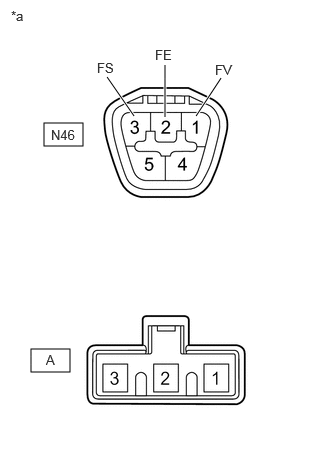

    GTY960250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Component without harness connected
    (Fuel Suction Tube with Pump and Gauge Assembly)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      N46-1 (FV) - A-3 Always Below 1 Ω
      N46-2 (FE) - A-2 Always Below 1 Ω
      N46-3 (FS) - A-1 Always Below 1 Ω
      N46-1 (FV) - N46-3 (FS)
      or
      A-3 - A-1      		 Always 10 kΩ or higher
      N46-1 (FV) - N46-2 (FE)
      or
      A-3 - A-2      		 Always 10 kΩ or higher
      N46-2 (FE) - N46-3 (FS)
      or
      A-2 - A-1      		 Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    See step  8

    Result:

    NG

    REPLACE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY. Refer to  REMOVAL [06/2018 - 08/2021]  , or refer to  REMOVAL [08/2021 - 09/2022]  , or refer to  REMOVAL [09/2022 - ]

  5. READ VALUE USING TECHSTREAM
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / Combination Meter / Data List.
    5. Read the Data List according to the display on the Techstream.

      Body Electrical > Combination Meter > Data List

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      Fuel Input Fuel level input Min.: 0.00 L, Max.: 655.35 L or Unset
      • Fuel receiver gauge indicates F: 49.50 L*
      • Fuel receiver gauge indicates 3/4: 41.25 L*
      • Fuel receiver gauge indicates 1/2: 27.50 L
      • Fuel receiver gauge indicates 1/4: 13.75 L
      • Fuel receiver gauge indicates E: 5.50 L
      		 The detected value of the fuel sender gauge assembly is displayed.
      1. *: Combined value of "Fuel Input" and "Sub Fuel Input"

      Body Electrical > Combination Meter > Data List

      Tester Display
      Fuel Input

      Result

      Result Proceed to
      Fuel level data can be displayed on the Techstream A
      Fuel level data cannot be displayed on the Techstream B

    Result:

    A

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [06/2018 - 08/2021]  , or refer to  REMOVAL [08/2021 - ]

    Result:

    B

    See step  6

  6. INSPECT FUEL SENDER GAUGE ASSEMBLY
    1. Remove the fuel sender gauge assembly.

      Refer to REMOVAL [08/2020 - 08/2021] , or refer to REMOVAL [08/2021 - 09/2022] , or refer to REMOVAL [09/2022 - ]

    2. Inspect the fuel sender gauge assembly.

      Refer to INSPECTION [08/2020 - ]

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE FUEL SENDER GAUGE ASSEMBLY. Refer to  REMOVAL [08/2020 - 08/2021]  , or refer to  REMOVAL [08/2021 - 09/2022]  , or refer to  REMOVAL [09/2022 - ]

    Result:

    OK

    See step  7

  7. INSPECT FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY
    GTY963023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Component without harness connected
    (Fuel Suction Tube with Pump and Gauge Assembly)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      N46-1 (FV) - B-3 Always Below 1 Ω
      N46-2 (FE) - B-2 Always Below 1 Ω
      N46-3 (FS) - B-1 Always Below 1 Ω
      N46-1 (FV) - N46-3 (FS)
      or
      B-3 - B-1      		 Always 10 kΩ or higher
      N46-1 (FV) - N46-2 (FE)
      or
      B-3 - B-2      		 Always 10 kΩ or higher
      N46-2 (FE) - N46-3 (FS)
      or
      B-2 - B-1      		 Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY. Refer to  REMOVAL [08/2020 - 08/2021]  , or refer to  REMOVAL [08/2021 - 09/2022]  , or refer to  REMOVAL [09/2022 - ]

    Result:

    OK

    See step  8

  8. CHECK HARNESS AND CONNECTOR (FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY - COMBINATION METER ASSEMBLY)
    1. Disconnect the G17 combination meter assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      N46-1 (FV) - G17-34 (FV) Always Below 1 Ω
      N46-3 (FS) - G17-33 (FR) Always Below 1 Ω
      N46-2 (FE) - G17-32 (FE) Always Below 1 Ω
      N46-1 (FV) or G17-34 (FV) - Body ground Always 10 kΩ or higher
      N46-3 (FS) or G17-33 (FR) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [06/2018 - 08/2021]  , or refer to  REMOVAL [08/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
