System Diagram [08/2020 - 08/2021]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

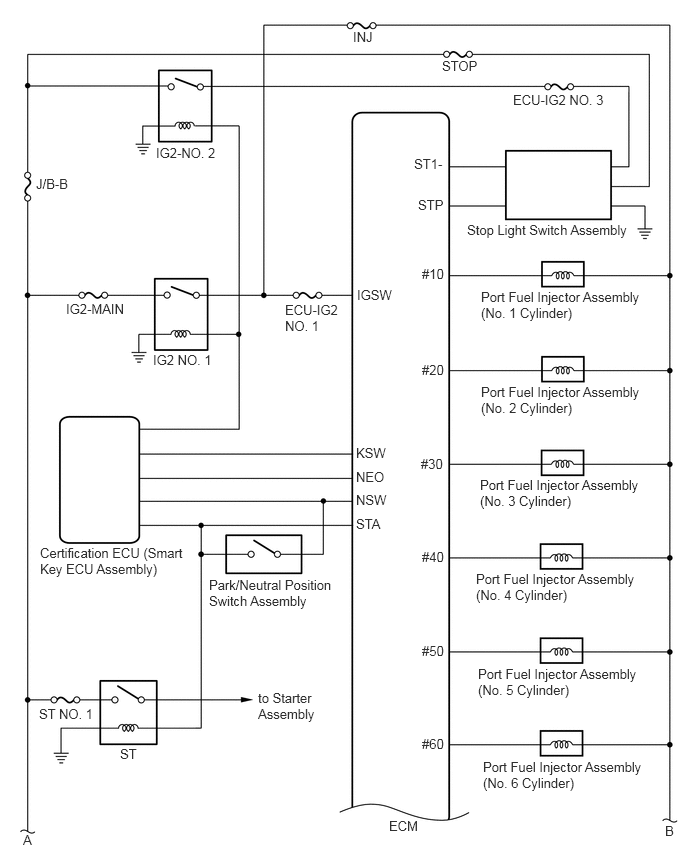

GTY820256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

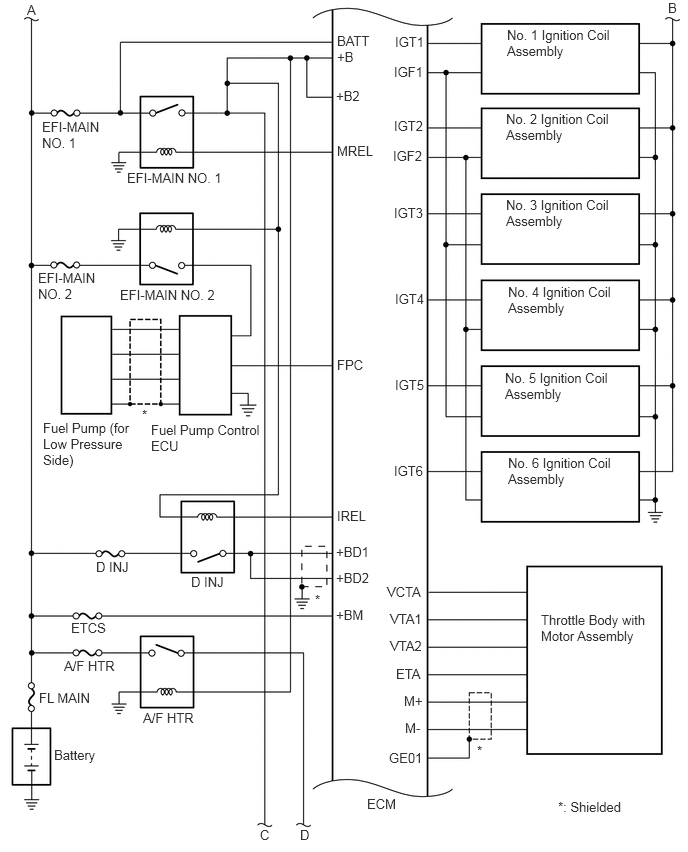

GTY814014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

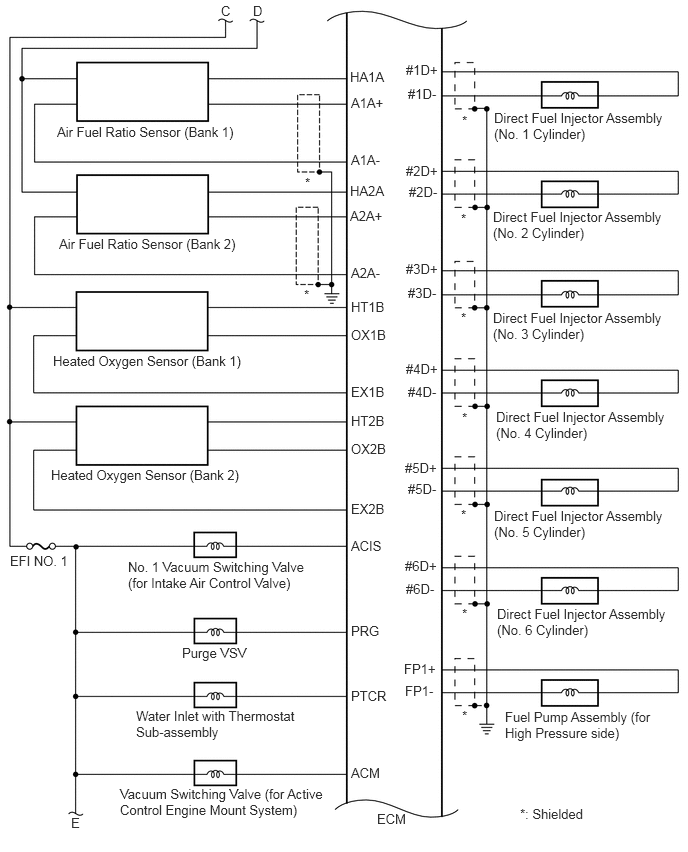

GTY787986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

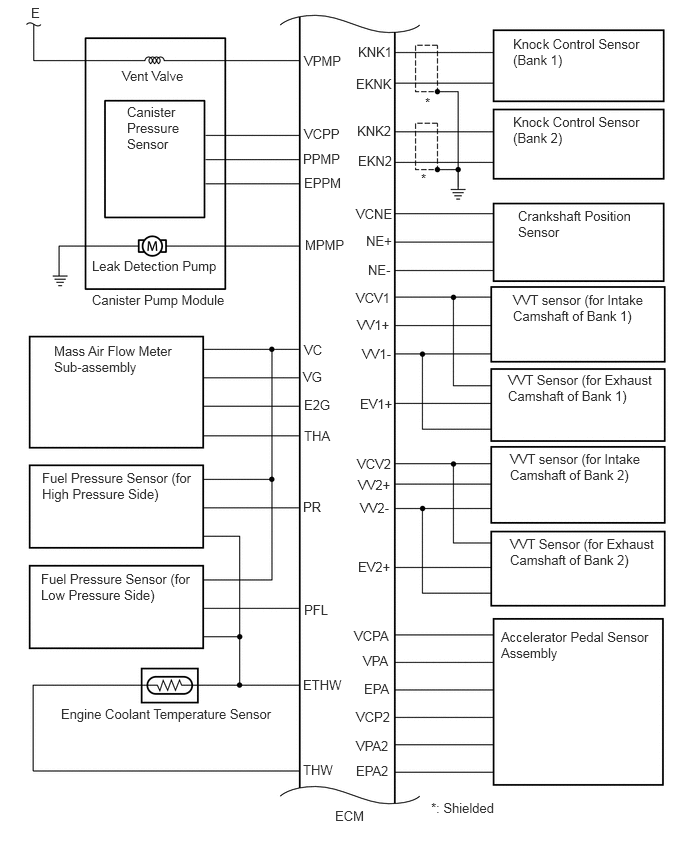

GTY704148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

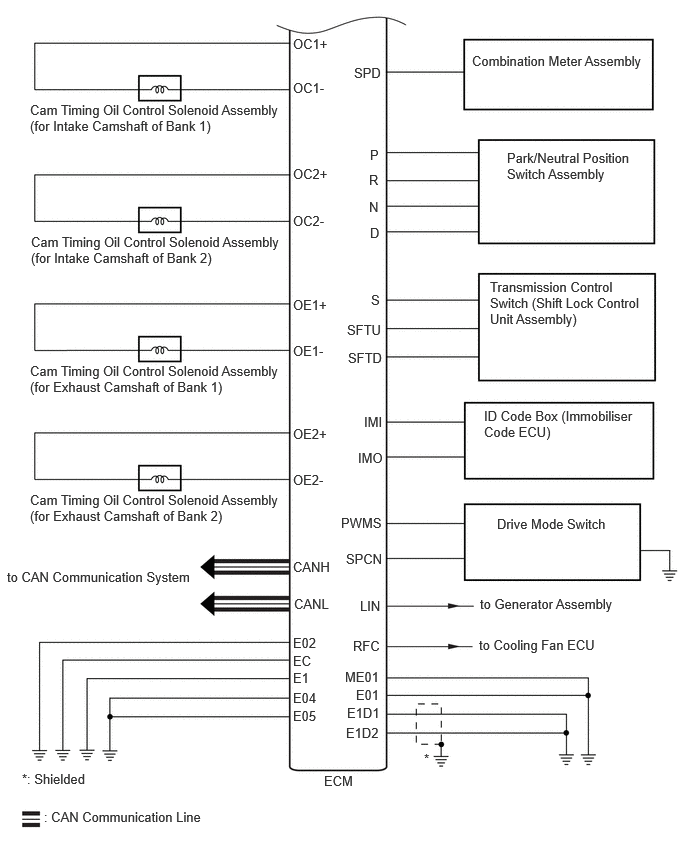

GTY948694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
