Parts Location [06/2018 - ]: Illustration
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

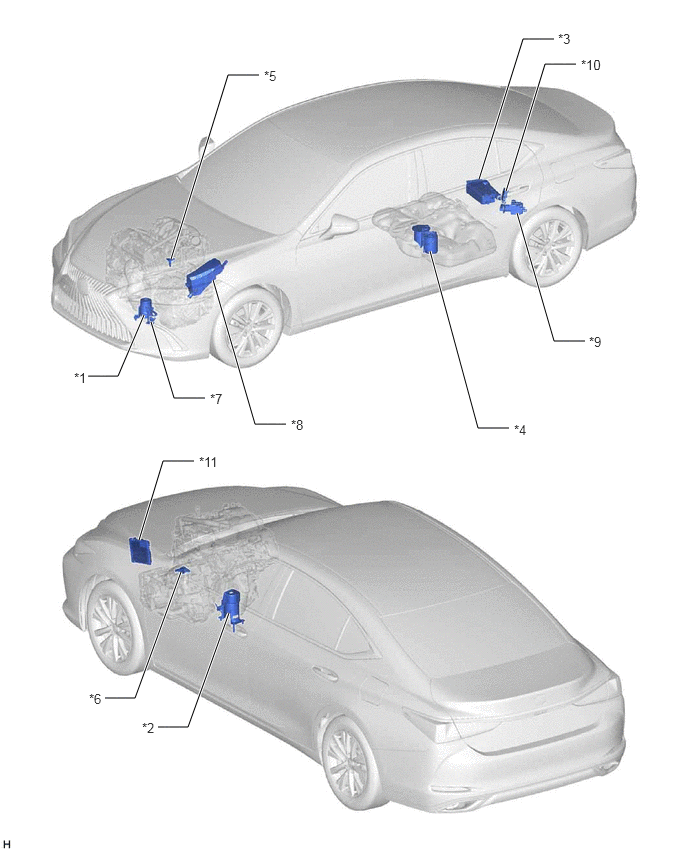

| *1 |
FRONT ENGINE MOUNTING INSULATOR |
*2 |
REAR ENGINE MOUNTING INSULATOR |
| *3 |
CANISTER |
*4 |
FUEL PUMP (for Low Pressure Side) |
| *5 |
MASS AIR FLOW METER SUB-ASSEMBLY |
*6 |
PARK / NEUTRAL POSITION SWITCH ASSEMBLY |
| *7 |
VACUUM SWITCHING VALVE (for Active Control Engine Mount System) |
*8 |
NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY |
| *9 |
CANISTER PUMP MODULE |
*10 |
FUEL PUMP CONTROL ECU |
| *11 |
ECM |
- |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
AIR FUEL RATIO SENSOR (Bank 2 Sensor 1) |
*2 |
CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Camshaft of Bank 1) |
| *3 |
CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Camshaft of Bank 1) |
*4 |
CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Camshaft of Bank 2) |
| *5 |
CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Camshaft of Bank 2) |
*6 |
PORT FUEL INJECTOR ASSEMBLY |
| *7 |
DIRECT FUEL INJECTOR ASSEMBLY |
*8 |
FUEL PRESSURE SENSOR (for Low Pressure Side) |
| *9 |
WATER INLET WITH THERMOSTAT SUB-ASSEMBLY |
- |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
AIR FUEL RATIO SENSOR (Bank 1 Sensor 1) |
*2 |
ENGINE COOLANT TEMPERATURE SENSOR |
| *3 |
FUEL PRESSURE SENSOR (for High Pressure Side) |
*4 |
FUEL PUMP ASSEMBLY (for High Pressure Side) |
| *5 |
VVT SENSOR (for Intake Camshaft of Bank 1) |
*6 |
VVT SENSOR (for Exhaust Camshaft of Bank 1) |
| *7 |
VVT SENSOR (for Intake Camshaft of Bank 2) |
*8 |
VVT SENSOR (for Exhaust Camshaft of Bank 2) |
| *9 |
IGNITION COIL ASSEMBLY |
*10 |
CRANKSHAFT POSITION SENSOR |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

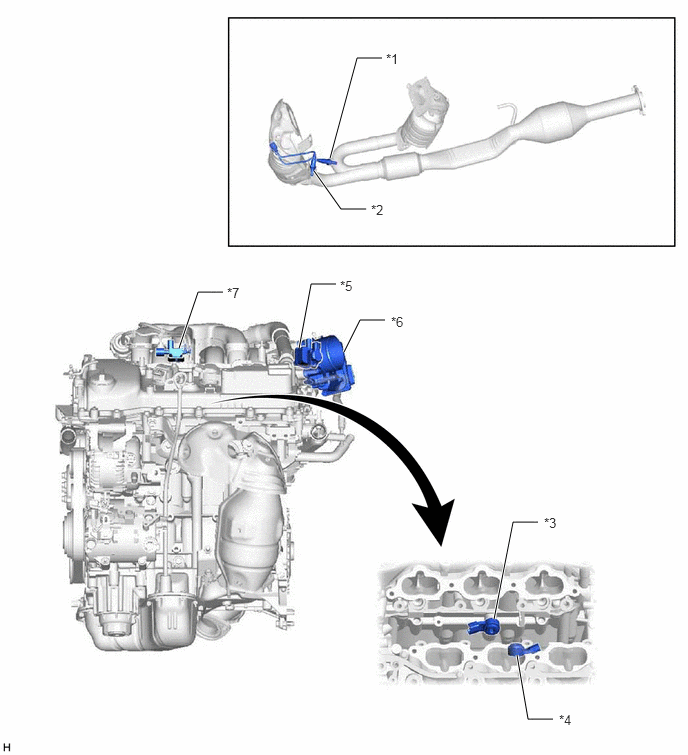

| *1 |
HEATED OXYGEN SENSOR (Bank 1 Sensor 2) |
*2 |
HEATED OXYGEN SENSOR (Bank 2 Sensor 2) |
| *3 |
KNOCK CONTROL SENSOR (Bank 1) |
*4 |
KNOCK CONTROL SENSOR (Bank 2) |
| *5 |
PURGE VSV |
*6 |
THROTTLE BODY WITH MOTOR ASSEMBLY |
| *7 |
NO. 1 VACUUM SWITCHING VALVE (for Intake Air Control Valve Sub-assembly) |
- |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

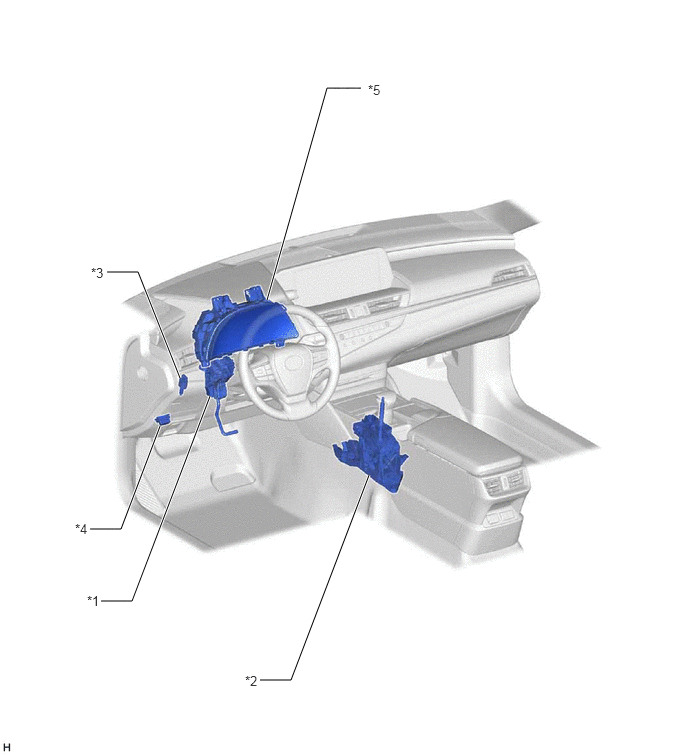

| *1 |
ACCELERATOR PEDAL SENSOR ASSEMBLY |
*2 |
TRANSMISSION CONTROL SWITCH (SHIFT LOCK CONTROL UNIT ASSEMBLY) |
| *3 |
STOP LIGHT SWITCH ASSEMBLY |
*4 |
DLC3 |
| *5 |
COMBINATION METER ASSEMBLY |
- |
- |
