Components [06/2018 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

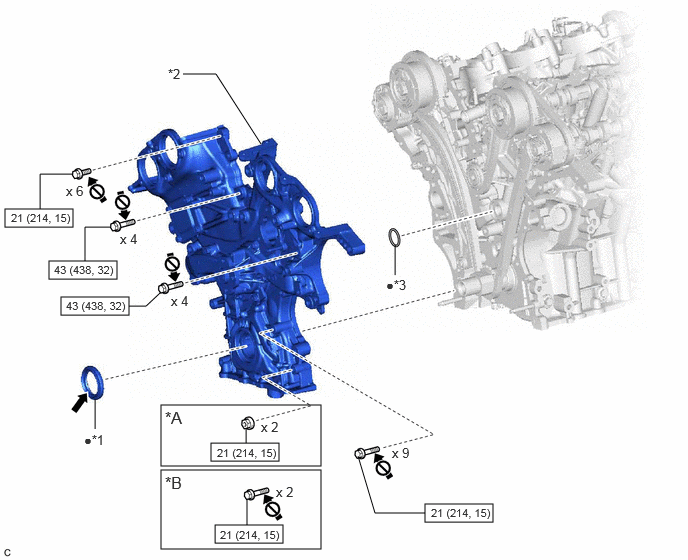

| *A |
w/ Stud Bolt |
*B |
w/o Stud Bolt |
| *1 |
TIMING CHAIN CASE OIL SEAL |
*2 |
TIMING CHAIN COVER ASSEMBLY |
| *3 |
OIL PUMP GASKET |
- |
- |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
 |
MP Grease |
 |
Do not apply lubricants to the threaded parts |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
OIL PUMP COVER |
*2 |
OIL PUMP RELIEF VALVE |
| *3 |
OIL PUMP ROTOR SET |
*4 |
TIMING CHAIN COVER ASSEMBLY |
| *5 |
OIL PUMP RELIEF VALVE SPRING |
*6 |
OIL PUMP RELIEF VALVE PLUG |
| *7 |
DRIVEN ROTOR |
*8 |
DRIVE ROTOR |
|
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
