Components [06/2018 - ]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

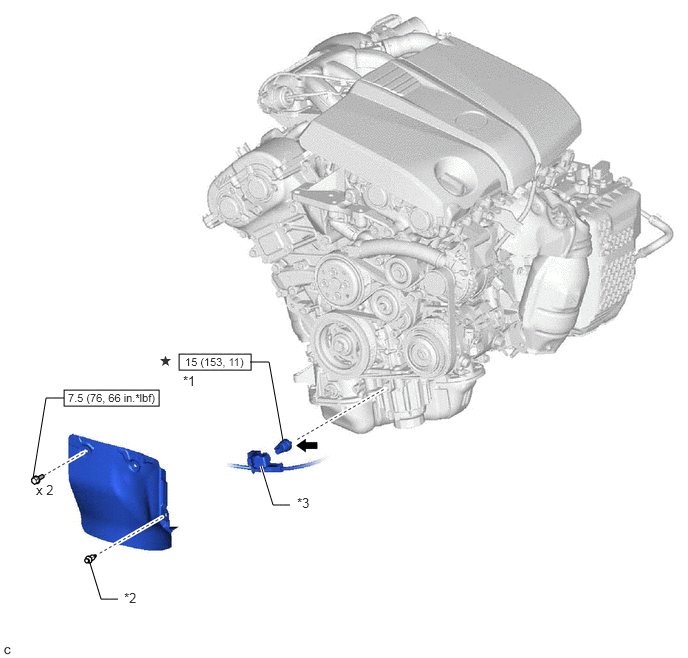

Fig 1: Oil Pressure Switch Replacement Components With Torque Specifications
GTY810870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ENGINE OIL PRESSURE SWITCH ASSEMBLY *2 FRONT FENDER APRON SEAL RH
*3 WIRE HARNESS PROTECTOR - -
N.m (kgf/cm, ft*lbf): Specified torque Adhesive 1344
* Precoated part - -
