Removal [09/2022 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 1

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [09/2022 - ]

  2. REMOVE RADIATOR ASSEMBLY

    Refer to REMOVAL [09/2022 - ]

  3. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 19

  4. REMOVE V-RIBBED BELT

    Refer to REMOVAL [06/2018 - ]

  5. REMOVE GENERATOR ASSEMBLY

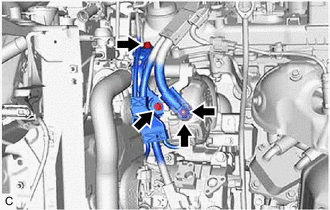

    1. Open the terminal cap.
      GTY781423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the nut and disconnect the wire harness from terminal B.
    3. Remove the 2 bolts.

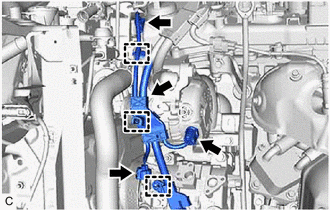

    4. Disconnect the generator assembly connector.
      GTY781417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disconnect the compressor assembly with magnetic clutch connector.
    6. Disconnect the camshaft timing oil control solenoid assembly connector.
    7. Disengage the 3 wire harness clamps and remove the wire harness clamp bracket.

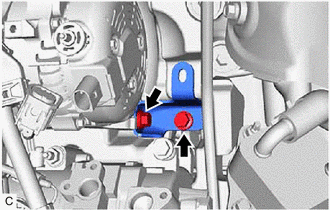

    8. Remove the 2 bolts and generator assembly bracket.
      GTY781418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

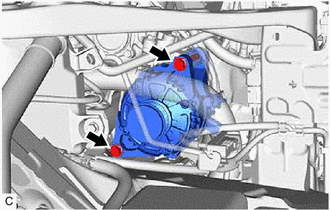

    9. Remove the 2 bolts and generator assembly.
      GTY781419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
