Components [06/2018 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

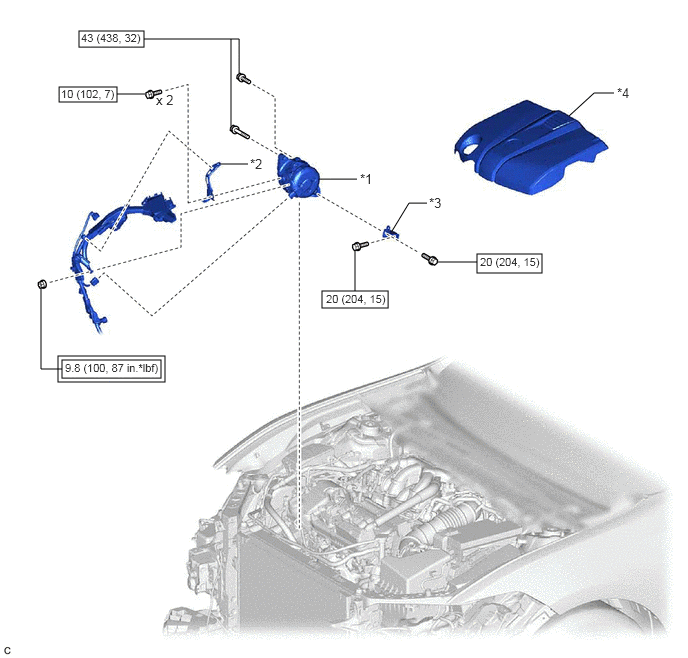

| *1 |
GENERATOR ASSEMBLY |
*2 |
WIRE HARNESS CLAMP BRACKET |
| *3 |
GENERATOR ASSEMBLY BRACKET |
*4 |
V-BANK COVER SUB-ASSEMBLY |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

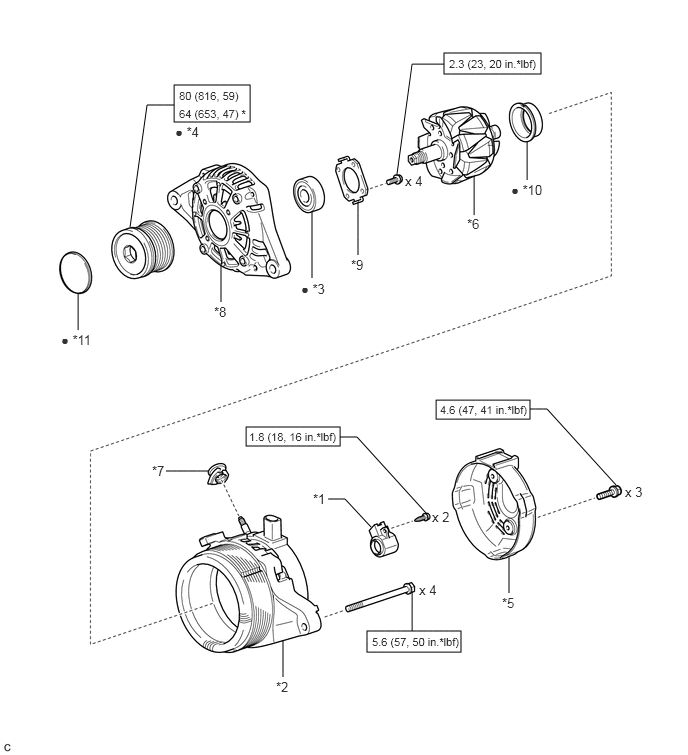

| *1 |
GENERATOR BRUSH HOLDER ASSEMBLY |
*2 |
GENERATOR COIL ASSEMBLY |
| *3 |
GENERATOR DRIVE END FRAME BEARING |
*4 |
GENERATOR PULLEY WITH CLUTCH |
| *5 |
GENERATOR REAR END COVER |
*6 |
GENERATOR ROTOR ASSEMBLY |
| *7 |
GENERATOR TERMINAL INSULATOR |
*8 |
GENERATOR DRIVE END FRAME |
| *9 |
RETAINER PLATE |
*10 |
BEARING COVER PACKING |
| *11 |
GENERATOR PULLEY CAP |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
* |
For use with SST |
| • |
Non-reusable part |
- |
- |
