Components [06/2018 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Transmission Control Cable Replacement Components With Torque Specifications [06/2018 - ](1 Of 3)
| *1 | BATTERY CLAMP SUB-ASSEMBLY | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
Fig 2: Transmission Control Cable Replacement Components With Torque Specifications [06/2018 - ](2 Of 3)
| *1 | FRONT LOWER NO. 1 FLOOR HEAT INSULATOR | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

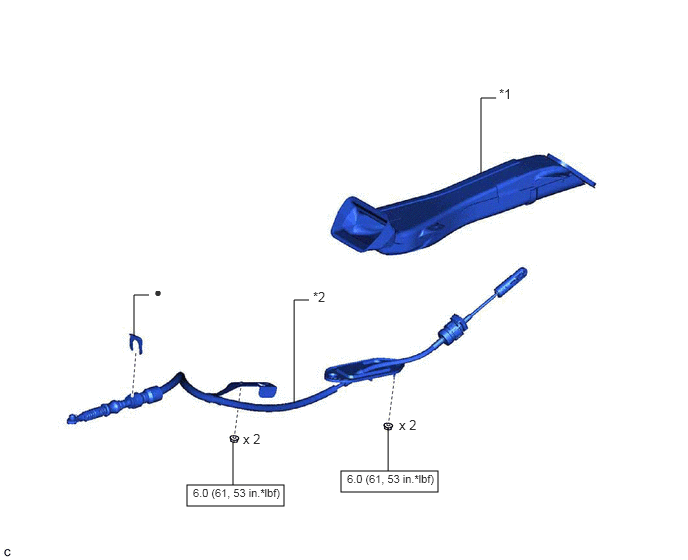

Fig 3: Transmission Control Cable Replacement Components With Torque Specifications [06/2018 - ](3 Of 3)
| *1 | NO. 1 CONSOLE BOX DUCT | *2 | TRANSMISSION CONTROL CABLE ASSEMBLY |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
