Components [06/2018 - ]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

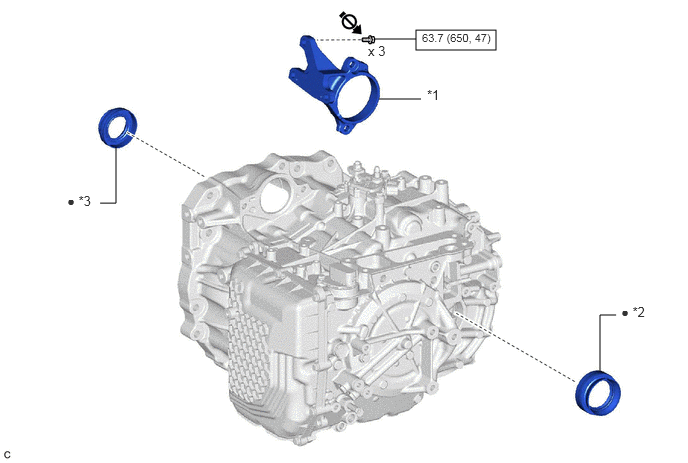

Fig 1: Differential Oil Seal Replacement Components With Torque Specifications [06/2018 - ]

*1	DRIVE SHAFT BEARING BRACKET	*2	FRONT DRIVE SHAFT OIL SEAL LH
*3	FRONT DRIVE SHAFT OIL SEAL RH	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
	Do not apply lubricants to the threaded parts	-	-
