Components [08/2020 - 08/2021]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Automatic Transaxle Unit Replacement Components With Torque Specifications [08/2020 - 08/2021] (1 Of 15)
GTY810239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 1 OIL COOLER OUTLET TUBE SUB-ASSEMBLY *2 NO. 1 TRANSMISSION OIL FILLER TUBE
*3 OIL COOLER UNION SUB-ASSEMBLY *4 OVERFLOW PLUG
*5 PARK/NEUTRAL POSITION SWITCH ASSEMBLY *6 REFILL PLUG
*7 TRANSMISSION CONTROL SHAFT LEVER *8 GASKET
*9 OIL COOLER UNION BOLT *10 O-RING
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) * For use with a union nut wrench
• Non-reusable part Toyota Genuine ATF WS

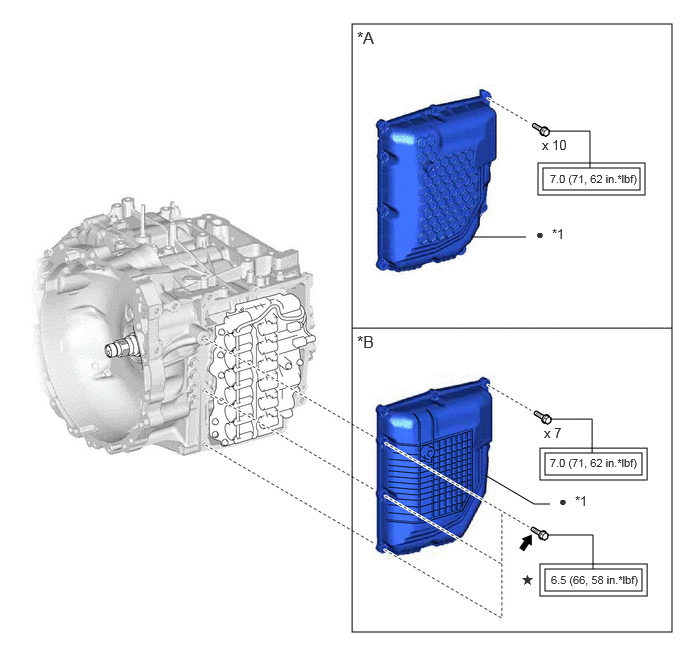

Fig 2: Automatic Transaxle Unit Replacement Components With Torque Specifications [08/2020 - 08/2021] (4 Of 5)
GTY955478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A for AISIN AW Made *B for TMMWV Made
*1 TRANSMISSION CASE SIDE COVER - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) • Non-reusable part
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent * Precoated part
Fig 3: Automatic Transaxle Unit Replacement Components With Torque Specifications [08/2020 - 08/2021] (3 Of 15)
GTY826486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 TRANSMISSION REVOLUTION SENSOR (NC) *2 TRANSMISSION REVOLUTION SENSOR (NT)
*3 TRANSMISSION WIRE *4 TRANSMISSION VALVE BODY ASSEMBLY
*5 NO. 1 FRONT OIL PUMP COVER GASKET *6 TRANSAXLE CASE GASKET
*7 NO. 2 FRONT OIL PUMP COVER GASKET *8 TEMPERATURE SENSOR CLAMP
*9 SPACER - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) • Non-reusable part
Toyota Genuine ATF WS - -

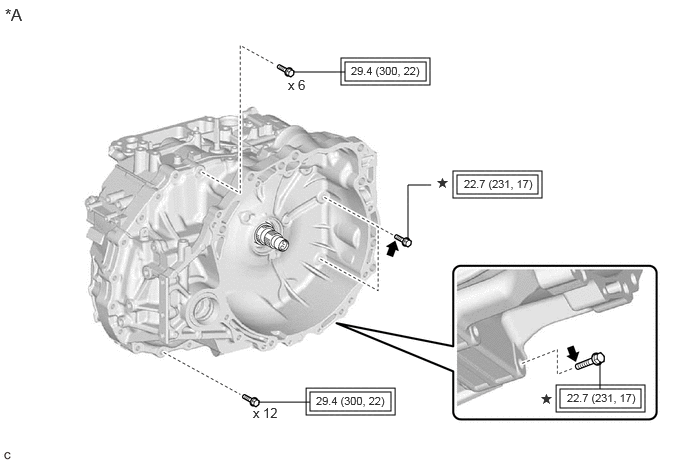

Fig 4: Automatic Transaxle Unit Replacement Components With Torque Specifications [08/2020 - 08/2021] (4 Of 16)
GTY955402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A for TMMWV Made - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent
* Precoated part - -

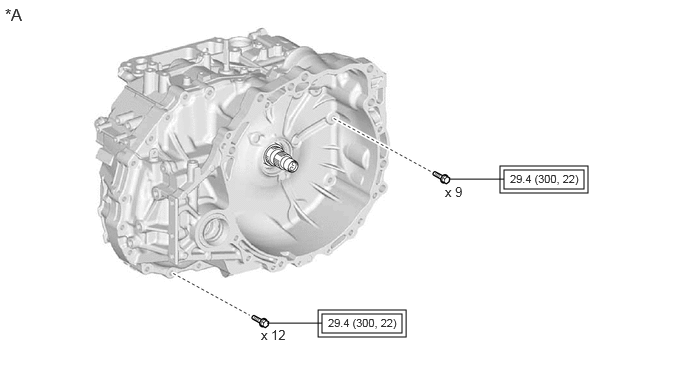

Fig 5: Automatic Transaxle Unit Replacement Components With Torque Specifications [08/2020 - 08/2021] (5 Of 16)
GTY957862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A for AISIN AW Made - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) - -
Fig 6: Automatic Transaxle Unit Replacement Components With Torque Specifications [08/2020 - 08/2021](6 Of 16)
GTY798807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 DIFFERENTIAL GEAR LUBE APPLY TUBE *2 TRANSAXLE HOUSING
*3 TRANSAXLE HOUSING OIL SEPARATOR *4 TRANSMISSION LUBE APPLY TUBE
*5 TRANSMISSION OIL CLEANER MAGNET *6 O-RING
*7 TRANSAXLE CASE GASKET *8 CLAMP
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) • Non-reusable part
Toyota Genuine ATF WS - -
Fig 7: Automatic Transaxle Unit Replacement Components With Torque Specifications [08/2020 - 08/2021] (6 Of 15)
GTY826946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CLUTCH DRUM OIL SEAL RING *2 DIFFERENTIAL CASE ASSEMBLY
*3 FRONT OIL PUMP ASSEMBLY *4 MANUAL DETENT SPRING SUB-ASSEMBLY
*5 OIL PUMP SPROCKET FRONT THRUST WASHER *6 OIL PUMP SPROCKET REAR THRUST WASHER
*7 TRANSMISSION DRIVE CHAIN *8 TRANSMISSION OIL PUMP DRIVE SPROCKET
*9 OIL PUMP DRIVE SHAFT SUB-ASSEMBLY *10 NO. 1 BREATHER PLUG (ATM)
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) • Non-reusable part
Toyota Genuine ATF WS MP grease
Fig 8: Automatic Transaxle Unit Replacement Components [08/2020 - 08/2021](8 Of 16)
GTY721025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 PLANETARY CARRIER THRUST WASHER *2 C-3 AND C-4 CLUTCH ASSEMBLY
Fig 9: Automatic Transaxle Unit Replacement Components [08/2020 - 08/2021](9 Of 16)
GTY791657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT PLANETARY GEAR ASSEMBLY *2 FRONT PLANETARY RING GEAR
*3 INPUT SHAFT OIL SEAL RING *4 NO. 2 PLANETARY CARRIER THRUST WASHER
*5 NO. 6 THRUST BEARING RACE *6 NO. 7 THRUST BEARING RACE
*7 NO. 8 THRUST BEARING RACE *8 NO. 9 THRUST BEARING RACE
*9 PLANETARY SUN GEAR *10 REAR INPUT SHAFT OIL SEAL RING
*11 THRUST NEEDLE ROLLER BEARING *12 FRONT PLANETARY RING GEAR FLANGE
*13 SNAP RING - -
• Non-reusable part Toyota Genuine ATF WS
MP grease - -
Fig 10: Automatic Transaxle Unit Replacement Components [08/2020 - 08/2021] (10 Of 16)
GTY1177373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A for TMMWV Made - -
*1 FORWARD CLUTCH PISTON *2 FRONT CLUTCH CLUTCH DISC
*3 NO. 1 CLUTCH BALANCER *4 NO. 5 THRUST BEARING RACE
*5 REAR CLUTCH PISTON RETURN COMPRESSION SPRING *6 SUN GEAR INPUT HUB SUB-ASSEMBLY
*7 THRUST NEEDLE ROLLER BEARING *8 SNAP RING
*9 O-RING *10 FORWARD CLUTCH FLANGE
*11 CLUTCH DRUM SUB-ASSEMBLY *12 FORWARD MULTIPLE DISC CLUTCH CLUTCH PLATE
*13 D-RING *14 NEEDLE ROLLER BEARING
• Non-reusable part Toyota Genuine ATF WS
Fig 11: Automatic Transaxle Unit Replacement Components With Torque Specifications [08/2020 - 08/2021](11 Of 16)
GTY807782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 MANUAL VALVE LEVER SHAFT RETAINER SPRING *2 MANUAL VALVE LEVER SHAFT SUB-ASSEMBLY
*3 MANUAL VALVE LEVER SUB-ASSEMBLY *4 PARKING LOCK PAWL
*5 PARKING LOCK PAWL SHAFT *6 PARKING LOCK PAWL TORSION SPRING
*7 PARKING LOCK ROD SUB-ASSEMBLY *8 PARKING LOCK SLEEVE
*9 PAWL STOPPER PLATE *10 O-RING
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) • Non-reusable part
Toyota Genuine ATF WS - -
Fig 12: Automatic Transaxle Unit Replacement Components With Torque Specifications [08/2020 - 08/2021](12 Of 16)
GTY777622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 COUNTER DRIVE GEAR SUB-ASSEMBLY *2 NO. 1 BRAKE DISC
*3 PINION AND COUNTER DRIVEN GEAR SUB-ASSEMBLY *4 NO. 1 BRAKE PLATE
*5 NO. 1 BRAKE FLANGE *6 SNAP RING
*7 O-RING - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) • Non-reusable part
Toyota Genuine ATF WS Do not apply lubricants to the threaded parts
Fig 13: Automatic Transaxle Unit Replacement Components [08/2020 - 08/2021](13 Of 16)
GTY695472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 2 THRUST BEARING RACE *2 NO. 3 PLANETARY CARRIER THRUST WASHER
*3 NO. 3 THRUST BEARING RACE *4 NO. 4 PLANETARY CARRIER THRUST WASHER
*5 NO. 4 THRUST BEARING RACE *6 PLANETARY SUN GEAR SUB-ASSEMBLY
*7 REAR PLANETARY GEAR ASSEMBLY *8 REAR PLANETARY SUN GEAR SUB-ASSEMBLY
*9 THRUST BEARING RACE *10 THRUST NEEDLE ROLLER BEARING
Toyota Genuine ATF WS - -
Fig 14: Automatic Transaxle Unit Replacement Components [08/2020 - 08/2021](14 Of 16)
GTY822731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 C-2 CLUTCH BALANCER *2 C-2 CLUTCH PISTON
*3 CLUTCH RETURN SPRING SUB-ASSEMBLY *4 DIRECT CLUTCH DRUM OIL SEAL RING
*5 NO. 1 THRUST BEARING RACE *6 NO. 2 CLUTCH DISC
*7 THRUST NEEDLE ROLLER BEARING *8 NO. 2 CLUTCH PLATE
*9 DIRECT CLUTCH FLANGE *10 INTERMEDIATE SHAFT SUB-ASSEMBLY
*11 SNAP RING *12 O-RING
• Non-reusable part Toyota Genuine ATF WS
MP grease - -
Fig 15: Automatic Transaxle Unit Replacement Components [08/2020 - 08/2021](15 Of 16)
GTY706752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 1ST AND REVERSE BRAKE PISTON *2 1ST AND REVERSE BRAKE RETURN SPRING SUB-ASSEMBLY
*3 2ND BRAKE BRAKE DISC *4 NO. 2 1ST AND REVERSE BRAKE PISTON
*5 2ND BRAKE BRAKE FLANGE *6 2ND BRAKE BRAKE PLATE
*7 SNAP RING *8 O-RING
• Non-reusable part Toyota Genuine ATF WS
Fig 16: Automatic Transaxle Unit Replacement Components With Torque Specifications [08/2020 - 08/2021](16 Of 16)
GTY796164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 AUTOMATIC TRANSMISSION CASE STRAIGHT PIN *2 COUNTER DRIVEN GEAR FRONT TAPERED ROLLER BEARING (INNER RACE)
*3 COUNTER DRIVEN GEAR FRONT TAPERED ROLLER BEARING (OUTER RACE) *4 COUNTER DRIVEN GEAR REAR TAPERED ROLLER BEARING (INNER RACE)
*5 COUNTER DRIVEN GEAR REAR TAPERED ROLLER BEARING (OUTER RACE) *6 FRONT DRIVE SHAFT OIL SEAL LH
*7 FRONT DRIVE SHAFT OIL SEAL RH *8 MANUAL VALVE LEVER SHAFT OIL SEAL
*9 NEEDLE ROLLER BEARING *10 NO. 1 TRANSAXLE CASE PLUG
*11 NO. 2 TRANSAXLE CASE PLUG *12 TRANSAXLE CASE OIL SEAL
*13 PINION AND COUNTER DRIVEN GEAR SHIM *14 PINION AND COUNTER DRIVEN GEAR SUB-ASSEMBLY
*15 GASKET *16 O-RING
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) • Non-reusable part
Toyota Genuine ATF WS MP grease
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent * Precoated part
