Components [06/2018 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.

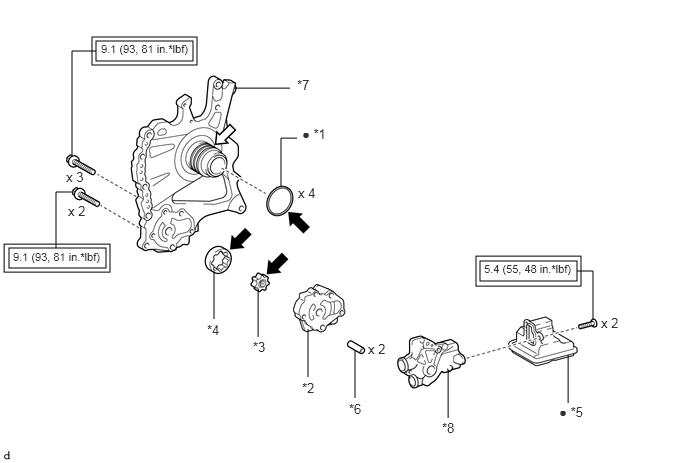

Fig 1: Automatic Transmission Oil Pump Replacement Components With Torque Specifications [06/2018 - ]
| *1 | CLUTCH DRUM OIL SEAL RING | *2 | FRONT OIL PUMP BODY |
| *3 | FRONT OIL PUMP DRIVE GEAR | *4 | FRONT OIL PUMP DRIVEN GEAR |
| *5 | OIL STRAINER ASSEMBLY | *6 | RING PIN |
| *7 | STATOR SHAFT ASSEMBLY | *8 | FRONT OIL PUMP COVER SUB-ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part | |
| Toyota Genuine ATF WS | MP grease |
