Components [01/2020 - 08/2020]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Transmission Wire Replacement Components With Torque Specifications [01/2020 - 08/2020] (1 Of 5)
| *A | Type A | *B | Type B |
| *1 | FRONT FENDER APRON SEAL LH | *2 | FRONT WHEEL OPENING EXTENSION PAD LH |
| *3 | FRONT WHEEL OPENING EXTENSION PAD RH | *4 | NO. 1 ENGINE UNDER COVER |
| *5 | NO. 3 ENGINE UNDER COVER | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
Fig 2: Transmission Wire Replacement Components With Torque Specifications [01/2020 - 08/2020] (2 Of 5)
| *1 | REFILL PLUG | *2 | NO. 1 TRANSMISSION OIL FILLER TUBE |
| *3 | OVERFLOW PLUG | *4 | GASKET |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part | |
| Toyota Genuine ATF WS | - | - |
Fig 3: Transmission Wire Replacement Components With Torque Specifications [01/2020 - 08/2020] (3 Of 5)

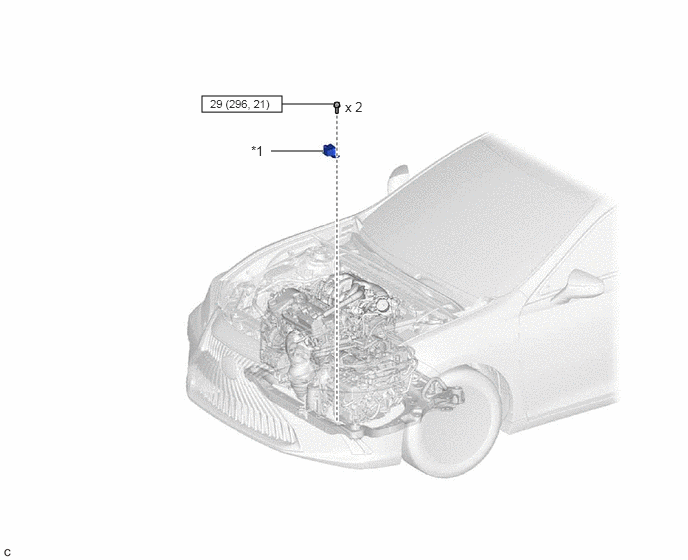

| *1 | FRONT SUSPENSION MEMBER DYNAMIC DAMPER | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
Fig 4: Transmission Wire Replacement Components With Torque Specifications [01/2020 - 08/2020] (4 Of 5)
| *A | for TMC Made | *B | for TMMWV Made |
| *C | for AISIN AW Made | - | - |

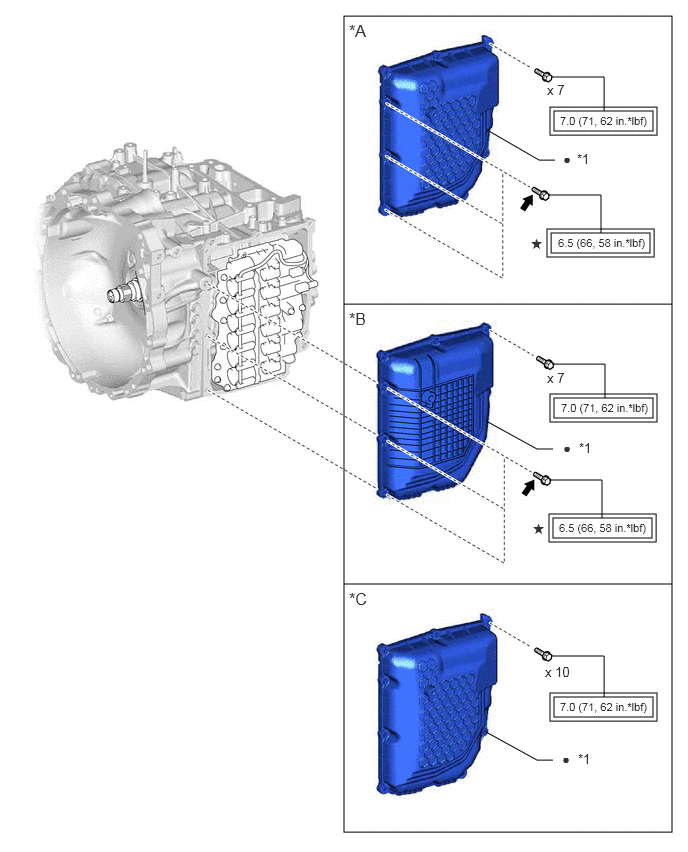

| *1 | TRANSMISSION CASE SIDE COVER | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part | |
| Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent | * | Precoated part |
Fig 5: Transmission Wire Replacement Components With Torque Specifications [01/2020 - 08/2020] (5 Of 5)
| *1 | OIL COOLER UNION SUB-ASSEMBLY | *2 | OIL COOLER UNION BOLT |
| *3 | TRANSMISSION WIRE | *4 | TEMPERATURE SENSOR CLAMP |
| *5 | GASKET | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part | |
| Toyota Genuine ATF WS | - | - |
