Components [06/2018 - 07/2019]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

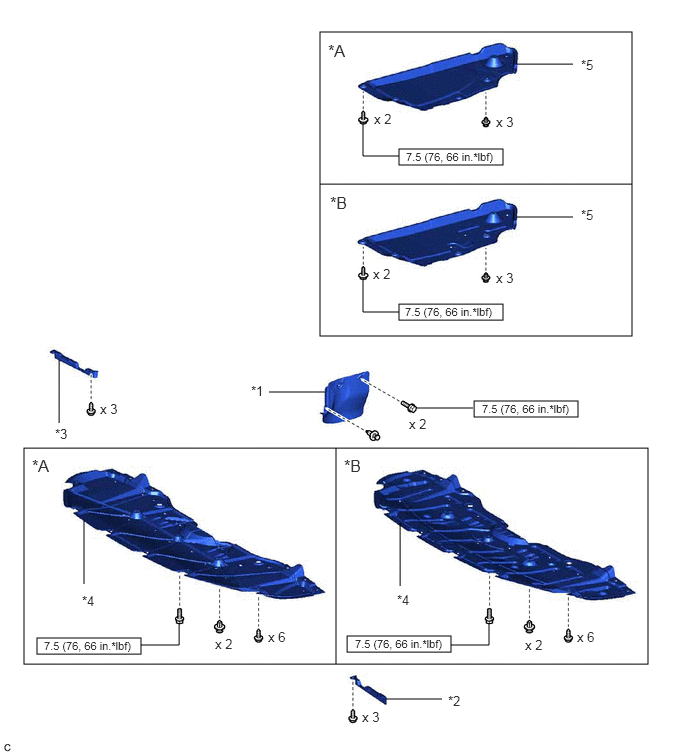

| *A |
Type A |
*B |
Type B |
| *1 |
FRONT FENDER APRON SEAL LH |
*2 |
FRONT WHEEL OPENING EXTENSION PAD LH |
| *3 |
FRONT WHEEL OPENING EXTENSION PAD RH |
*4 |
NO. 1 ENGINE UNDER COVER |
| *5 |
NO. 3 ENGINE UNDER COVER |
- |
- |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

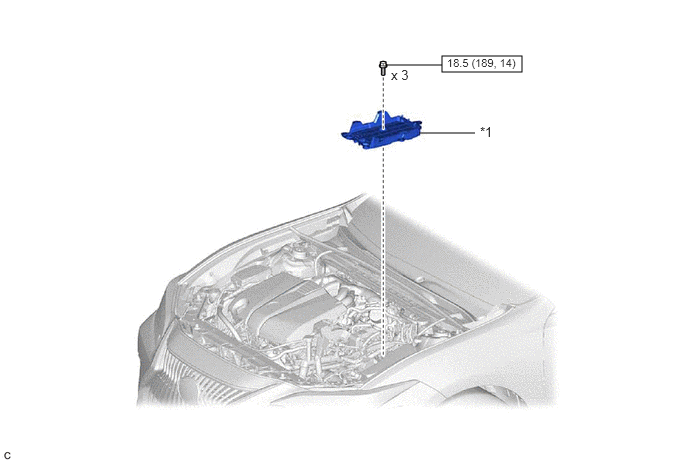

| *1 |
BATTERY CLAMP SUB-ASSEMBLY |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

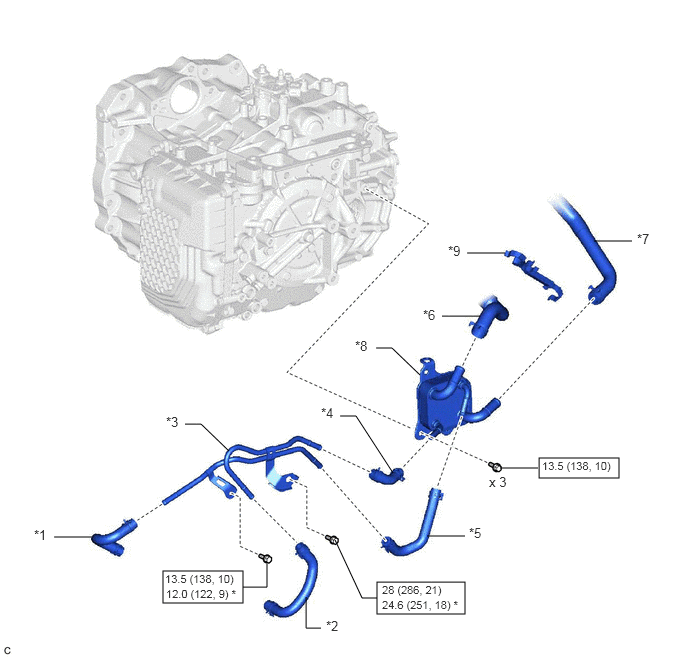

| *1 |
OUTLET NO. 1 OIL COOLER HOSE |
*2 |
INLET NO. 1 OIL COOLER HOSE |
| *3 |
NO. 1 OIL COOLER TUBE SUB-ASSEMBLY WITHOUT HOSE |
*4 |
INLET NO. 2 OIL COOLER HOSE |
| *5 |
OUTLET NO. 2 OIL COOLER HOSE |
*6 |
NO. 1 WATER BY-PASS HOSE |
| *7 |
WATER BY-PASS HOSE ASSEMBLY |
*8 |
TRANSMISSION OIL COOLER |
| *9 |
TRANSMISSION BREATHER CLAMP |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
* |
For use with a union nut wrench |
