Components [06/2018 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *A |
Type A |
*B |
Type B |
| *1 |
FRONT FENDER APRON SEAL LH |
*2 |
FRONT WHEEL OPENING EXTENSION PAD LH |
| *3 |
FRONT WHEEL OPENING EXTENSION PAD RH |
*4 |
NO. 1 ENGINE UNDER COVER |
| *5 |
NO. 3 ENGINE UNDER COVER |
- |
- |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |

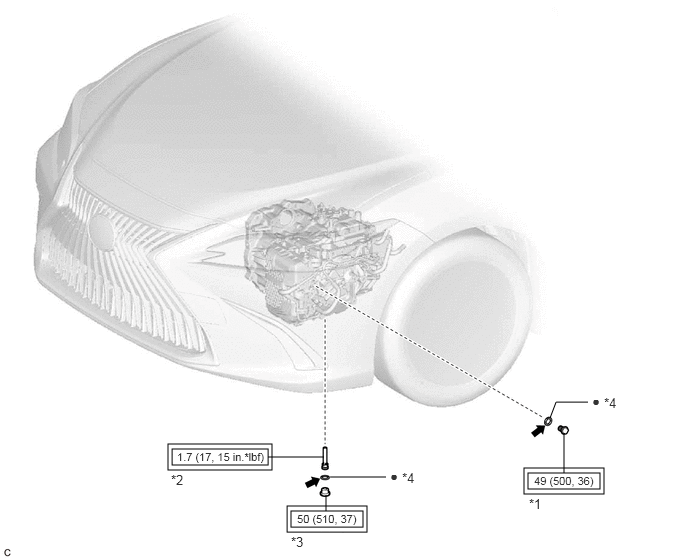

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
REFILL PLUG |
*2 |
NO. 1 TRANSMISSION OIL FILLER TUBE |
| *3 |
OVERFLOW PLUG |
*4 |
GASKET |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) |
• |
Non-reusable part |
 |
Toyota Genuine ATF WS |
- |
- |
