System Diagram [08/2020 - ]

WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. HIGH PRESSURE SIDE FUEL SYSTEM WIRING DIAGRAM

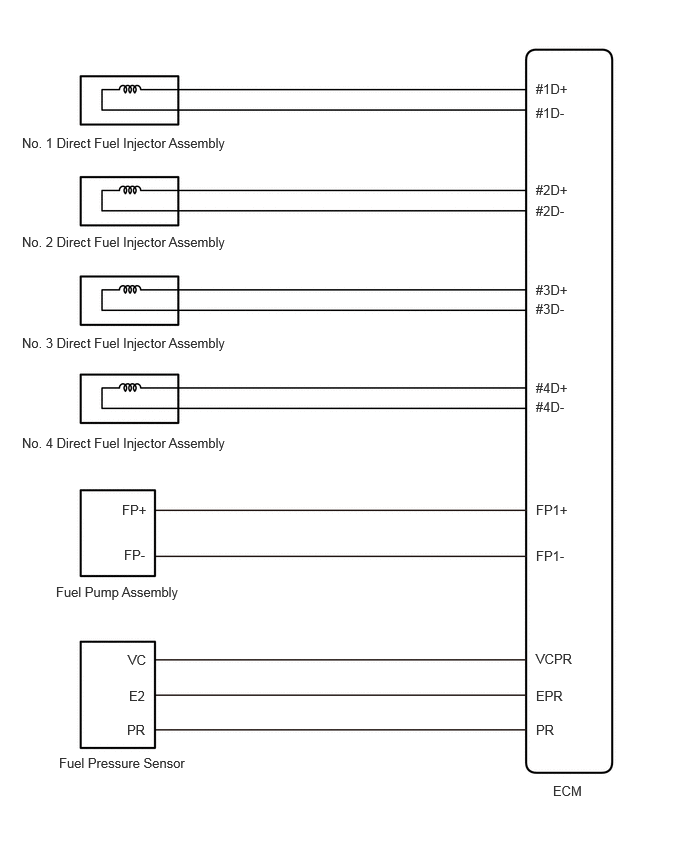

    GTY821895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. LOW PRESSURE SIDE FUEL SYSTEM WIRING DIAGRAM

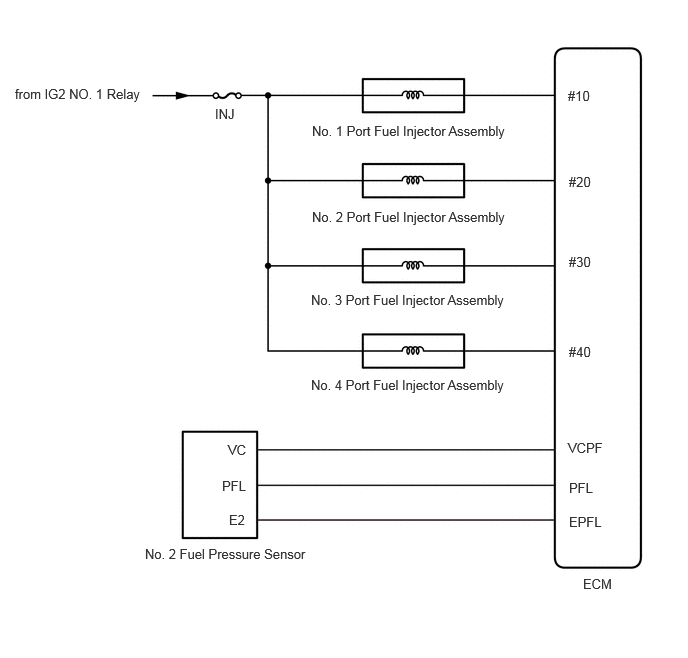

    GTY947118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

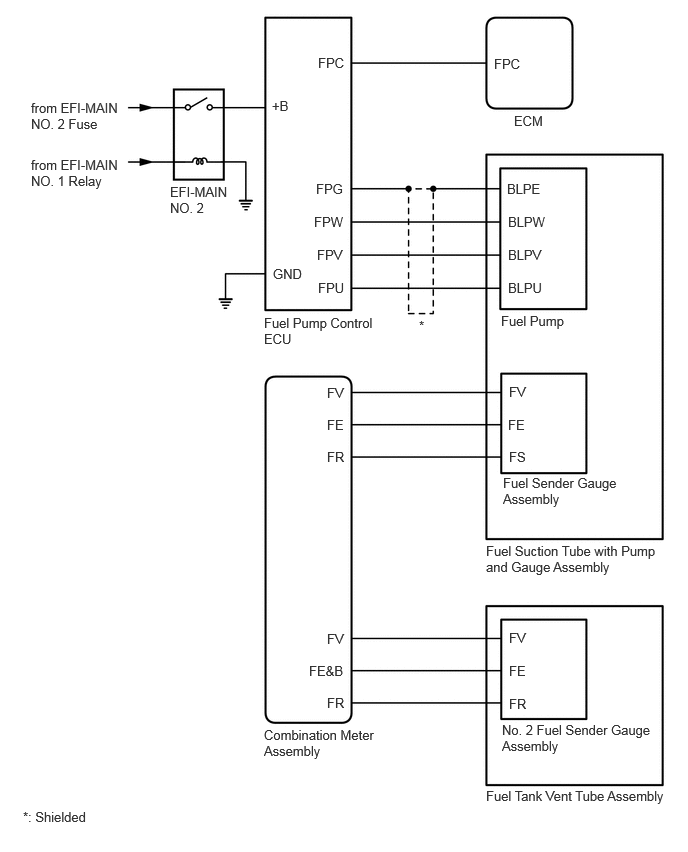

    GTY948581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
