Removal [06/2018 - 10/2019]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2023 Lexus ES 350, 2022 Lexus ES 350, 2021 Lexus ES 350, and 2020 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 7

  2. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 8

  3. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 9

  4. REMOVE NO. 3 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 10

  5. REMOVE NO. 2 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 11

  6. DRAIN ENGINE COOLANT

    See step  1

  7. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 19

  8. REMOVE NO. 2 ENGINE MOUNTING STAY RH

    Refer to PROCEDURE - Step 14

  9. SEPARATE RADIATOR RESERVE TANK ASSEMBLY
    1. Disengage the clamp.
      GTY821838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt, nut to separate the radiator reserve tank assembly.
  10. REMOVE ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH

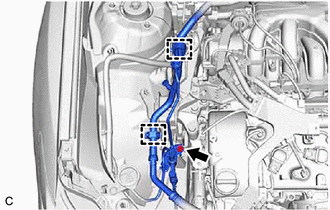

    1. Disengage the 2 clamps.
      GTY1084813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt to separate the suction hose sub-assembly, suction pipe sub-assembly and air conditioning tube and accessory assembly.
    3. Using a safety stand, support the engine assembly with transaxle at the position shown in the illustration.
      GTY1084811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Support Area - -
      NOTE:
      • Make sure to firmly support the weight of the engine assembly and automatic transaxle assembly before removing the engine mounting insulator sub-assembly RH.
      • Do not place the safety stand under the oil pan.
    4. Support the engine assembly with automatic transaxle assembly at the position shown in the illustration to stabilize it.
      GTY1084594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Support Area
    5. Remove the 3 bolts and nut to separate the engine mounting insulator sub-assembly RH from the front No. 1 engine mounting bracket LH.
      GTY1084815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the nut, 2 bolts and engine mounting insulator sub-assembly RH from the engine mounting spacer and vehicle body.
      GTY1084816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. DISCONNECT ENGINE WIRE
    1. Disconnect the water inlet with thermostat sub-assembly connector.
      GTY768494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt.
    3. Disengage the clamp to disconnect the engine wire.
  12. REMOVE FRONT NO. 1 ENGINE MOUNTING BRACKET LH

    Refer to PROCEDURE - Step 7

  13. DISCONNECT WATER BY-PASS HOSE
    1. Slide the clip and disconnect the water by-pass hose.
      GTY667700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE WATER INLET WITH THERMOSTAT SUB-ASSEMBLY
    1. Remove the 2 bolts, 2 nuts and water inlet with thermostat sub-assembly.
      GTY684911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the gasket from the water inlet with thermostat sub-assembly.
